ECM Industries ASN-1/0 ILSCO AL CMP SLV 1/0 AWG T UL CSA

Product Description

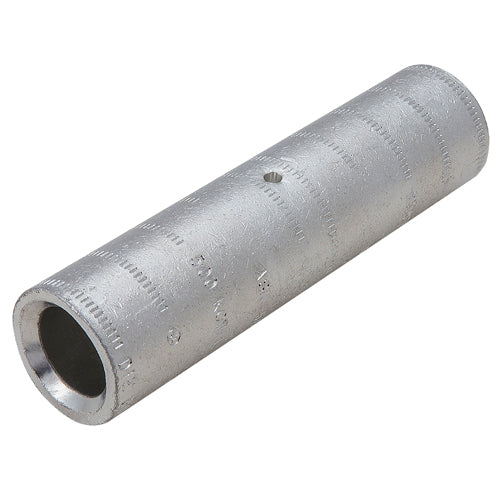

This product is the ILSCO ASN-1/0 compression sleeve manufactured by ECM Industries. It is a dual-rated compression sleeve designed for use with aluminum or copper conductors ranging from 1 to 1/0 AWG. The sleeve is made from high-strength aluminum alloy, ensuring conductivity and excellent crimping performance. With a length of two point five seven three inches, it features a roll marked barrel for easy identification and a chamfered entry for simple conductor insertion.

• Made from aluminum alloy
• Electro-plated tin finish for low resistance
• Can be used for high voltage applications up to thirty-five kV

Product Highlights

This component is suitable for splicer and reducer applications. Its design includes color-coded end caps for identifying the right compression die, and it is filled with DE-OX to prevent oxidation.

Product Information

Standard Information

• Brand: ECM Industries
• MPN: ASN-1/0

Technical Specifications

• Application: For use with splicer and reducer
• Color: Tan
• Conductor Size: 1 to 1/0 AWG
• Conductor Type: Aluminum/Copper
• Connector Type: Crimp
• Die Code: 296
• Dimensions: 0.358 in ID x 0.599 in OD
• Finish: Electro-Plated Tin
• Length: 2.573 in
• Material: Aluminum Alloy
• Standards/Approvals: UL 486A-B|UL 453G File No. E6207|CSA File No. LR29601|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
• Temperature Rating: 90 deg C
• Type: Type ASN Dual Rated
