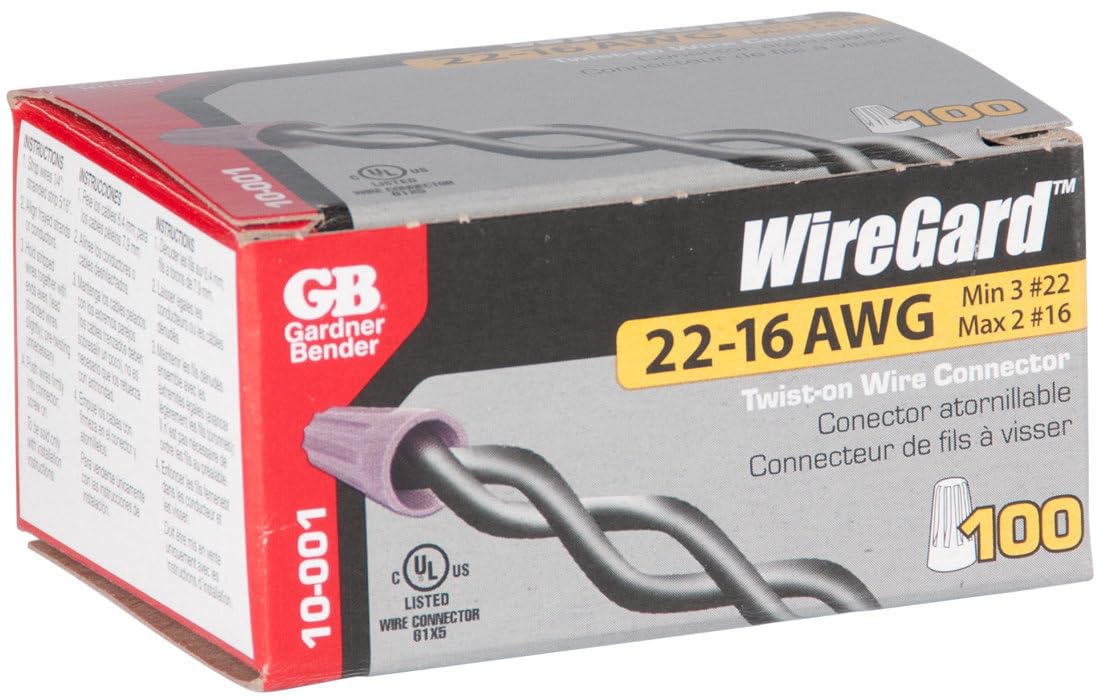

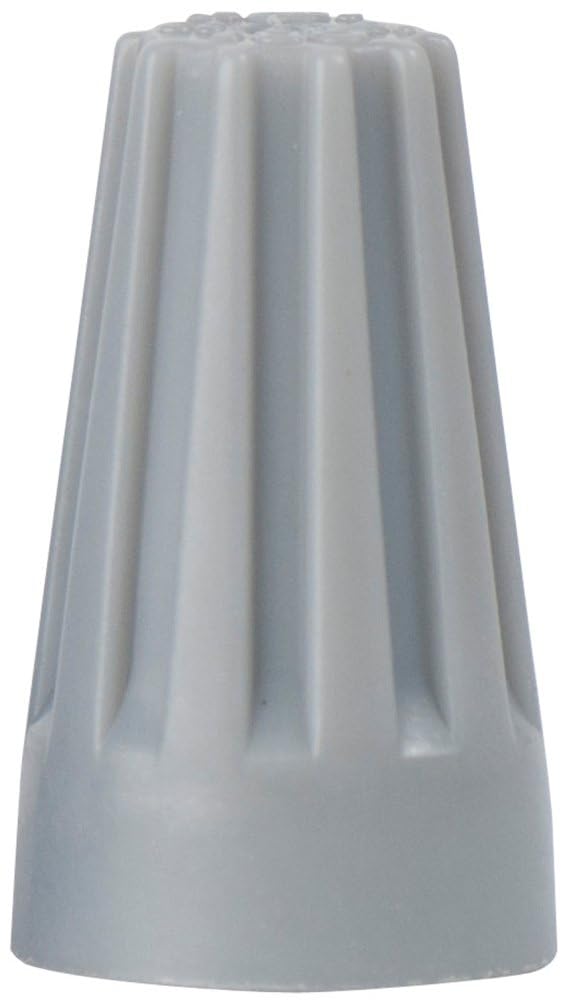

Ecm Industries 10-001 wire connector, twist-on 22-16 AWG mini, 100-Pk. GB-1

Product Description

The ECM Industries 10-001 is a twist-on wire connector designed for secure electrical connections. This mini connector accommodates 22-16 AWG copper wire, featuring a square-wire zinc-plated spring that adjusts to the splice. Its flame-retardant polypropylene shell resists heat distortion up to 105 degrees Celsius and is rated for 600V max in building wire and 1000V max in lighting applications. The high-dielectric shell prevents bare wire exposure, ensuring safety and reliability.

• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements

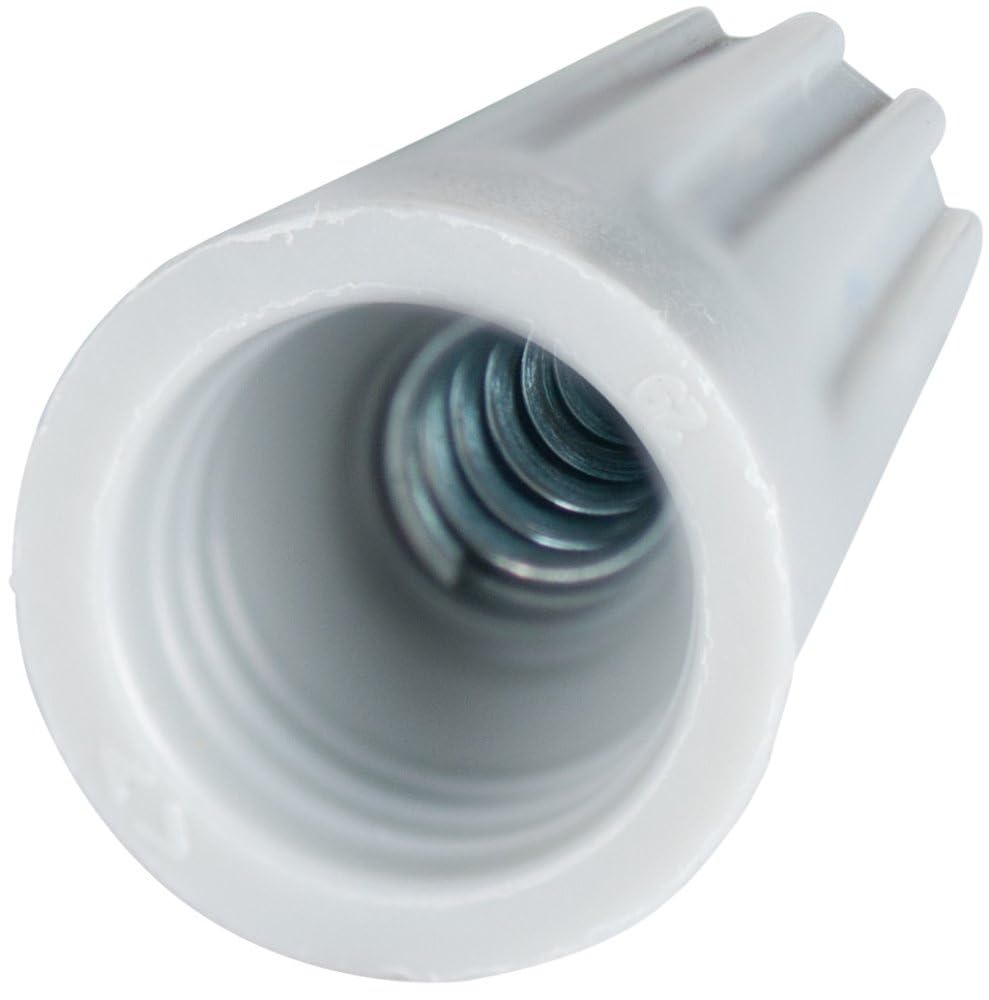

• Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit

Product Highlights

Miniature twist-on connector for 22-16 AWG copper wire, featuring a square spring and flame-retardant polypropylene insulation for secure, high-voltage connections.

Product Information

Standard Information

• Brand: ECM INDUSTRIES
• Manufacturer Part Number: 10-001
• Country of Origin: United States

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Manufacturer: Ecm Industries
• Model Number: GB-1
• Package Quantity: 100
• Brand: Ecm Industries
• Country of Origin: United States
• Part Number: 10-001
• Finish: Gray
• Hazardous Material: No
• ECCN: EAR99
• Connector Type: Twist-on Wire Connector
• AWG Range: 22-16
• Material: Polypropylene
• Spring Type: Square Spring
• Maximum Voltage: 1,000 V
• Maximum Operating Temperature: 105 Degrees C
