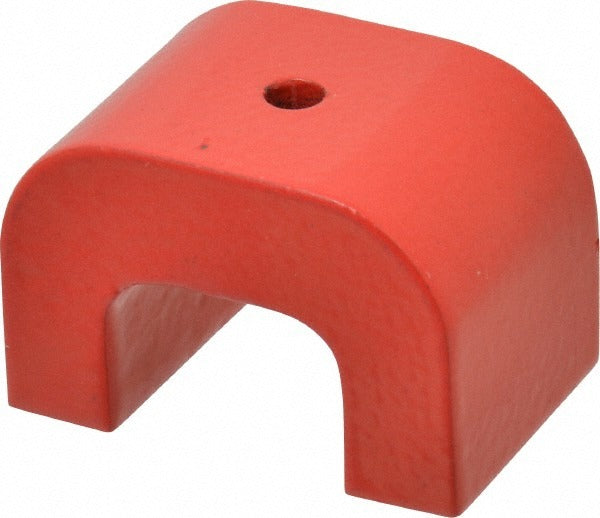

Eclipse M6770C/MSC Alnico Power Magnet Grade 5 1-3/16 in

Product Description

The ECLIPSE M6770C/MSC is a Grade 5 Alnico power magnet designed for industrial holding, fixturing, and magnetic circuit applications. Built from Alnico alloy, it delivers a maximum pull force of 11.80 kilograms and withstands operating temperatures up to 550 degrees C, making it suitable for high-temperature environments where polymer or ceramic magnets would fail. The single-hole mounting configuration and included magnet keeper make it a practical choice for machine builders, tool and die shops, and MRO technicians who need a reliable, mountable permanent magnet with long service life.

This magnet is used in industrial and commercial settings where a compact, high-temperature-rated permanent magnet is required. Typical applications include fixture holding, sensor actuation, magnetic chucks, and specialty tooling. The 1-3/16 inch width and 0.9063 inch gap width suit it to precision assemblies where space is constrained. The included magnet keeper helps preserve magnetic strength during storage and handling, which is standard practice for Alnico grades. Installation is performed by mechanical or electrical tradespeople as well as machine maintenance technicians.

Key Features

• Grade 5 Alnico construction for high coercivity and stable flux output
• Maximum pull force of 11.80 kilograms for reliable holding in demanding applications
• Maximum operating temperature of 550 degrees C, suitable for high-heat environments
• Single mounting hole, 3/16 inch diameter, for secure mechanical fastening
• Includes magnet keeper to protect magnetic strength during storage
• Compact footprint: 1-3/16 inches wide, 1-3/16 inches high, 1-49/64 inches deep

Compatibility

Designed as an OEM-style permanent magnet for industrial fixturing, magnetic circuit assemblies, and high-temperature holding applications requiring a Grade 5 Alnico magnet with single-hole mounting.

Installation Notes

Installation is typically performed by machine builders, maintenance technicians, or tool and die professionals. Secure the magnet using the single mounting hole with a fastener appropriate for the load and substrate. Keep magnetic materials and sensitive electronics away from the work area during handling. Store with the included magnet keeper in place to prevent flux loss over time.
