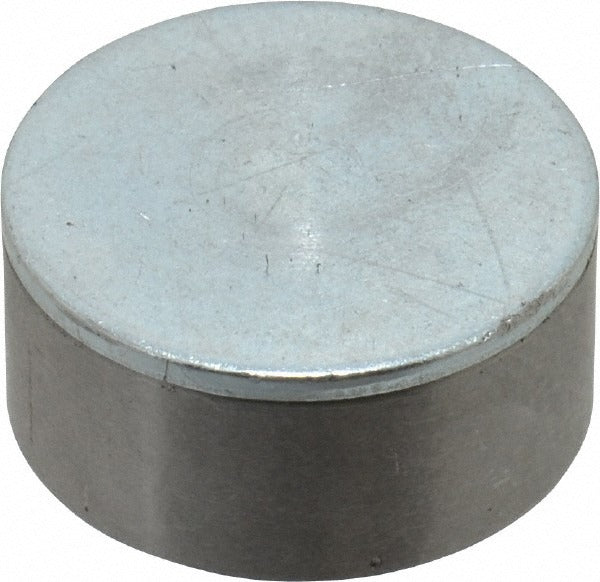

Eclipse M19187/MSC Alnico Pot Magnet 3 Lb 1.25 in

Product Description

The ECLIPSE M19187/MSC is an Alnico pot magnet designed for holding, clamping, and fixture applications where reliable magnetic pull force is required in high-temperature environments. Built from Alnico 5 grade material, this magnet delivers an average pull force of 3 pounds and a maximum pull force of 6 pounds. The 1/4-20 threaded stud allows direct mounting to fixtures, jigs, or assemblies without additional hardware. At 1.25 inches in diameter and 0.5 inches in height, it fits into compact spaces while maintaining strong magnetic performance. A maximum operating temperature of 428 degrees F makes it suitable for applications where standard magnets would lose their properties.

This pot magnet is used in industrial, mechanical, and light fabrication settings where a threaded mount is needed for tool holding, sensor positioning, door latching, or fixture work. The Alnico 5 construction makes it a practical choice for applications near heat sources, such as HVAC equipment mounting, furnace area fixtures, or industrial machinery where elevated ambient temperatures are common. Licensed trades and maintenance technicians working on equipment in high-heat zones will find the temperature rating particularly useful.

Key Features

• Alnico 5 grade magnet material for high-temperature stability up to 428 degrees F
• 3 lb average pull force with 6 lb maximum pull force
• 1/4-20 threaded stud for direct mechanical attachment
• Compact form factor at 1.25 inches diameter and 0.5 inches height
• Pot magnet design concentrates magnetic flux at the working face for improved holding strength

Compatibility

Designed as a direct-mount Alnico pot magnet suitable for general industrial and mechanical fixture applications requiring a 1/4-20 threaded connection point.

Installation Notes

Installation is typically performed by maintenance technicians or fabricators using standard hand tools compatible with 1/4-20 thread fasteners. Ensure the mating surface is clean, flat, and free of debris before seating the magnet to achieve rated pull force. Avoid exposing the magnet to impact loads or lateral shear forces beyond its rated capacity, as Alnico material is brittle and can chip or crack. Always confirm the mounting assembly is de-energized or mechanically secured before repositioning magnets in active equipment.
