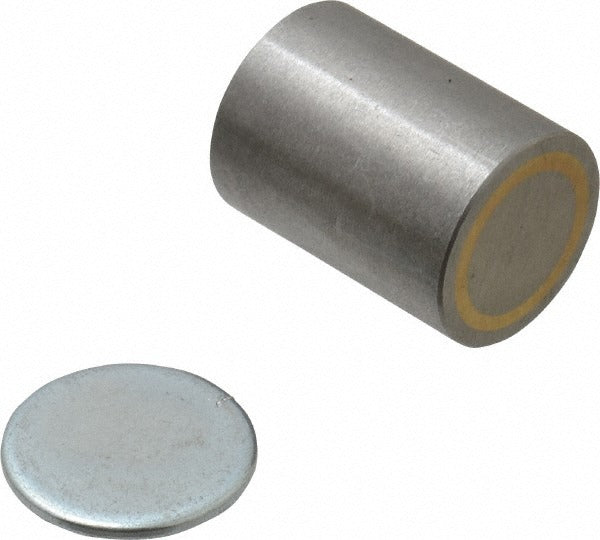

Eclipse M19183/MSC Alnico Pot Magnet 4.7 Lb 10-24 Thread

Product Description

The ECLIPSE M19183/MSC is an Alnico pot magnet designed for holding, clamping, and mounting applications that demand reliable magnetic force in high-temperature environments. Built with an Alnico 5 magnet material grade, this pot magnet delivers an average pull force of 4.7 pounds and a maximum pull force of 9 pounds. The threaded stud configuration uses a 10-24 thread, making it easy to mount to fixtures, jigs, or enclosures. At 0.75 inches in diameter and 1 inch in height, it is compact enough to fit tight spaces while still offering strong magnetic retention. Maintenance technicians, fabricators, and industrial tradespeople install this type of magnet in sensor mounting, door latching, and component retention setups.

This pot magnet is suited for industrial and commercial applications where elevated operating temperatures are a factor. With a maximum operating temperature of 428 degrees F, it performs in environments where standard ferrite or neodymium magnets would degrade. Common installation scenarios include HVAC equipment panels, electrical enclosures, jig and fixture assemblies, and general shop or field tooling. Its threaded stud allows direct fastening without adhesive, which is preferred in vibration-prone or service-access locations.

Key Features

• Alnico 5 magnet material grade for stable magnetic performance at elevated temperatures
• Average pull force of 4.7 pounds with a maximum pull force of 9 pounds
• 10-24 threaded stud for direct mechanical attachment to fixtures and enclosures
• Maximum operating temperature of 428 degrees F, suitable for high-heat environments
• Compact form factor: 0.75 inches diameter, 1 inch height

Compatibility

Designed as an OEM-style replacement or direct-install pot magnet for industrial, commercial, and trade applications requiring a 0.75 inch diameter, 10-24 threaded Alnico pot magnet.

Installation Notes

Installation of this pot magnet is typically performed by maintenance technicians, fabricators, or electricians depending on the application. Power down or de-energize any associated equipment before mounting or removing the magnet. The 10-24 threaded stud should be secured with an appropriately rated fastener and thread-locking compound where vibration is present. Avoid direct contact with ferrous chips or debris during installation, as accumulated material can reduce pull force and damage mating surfaces.
