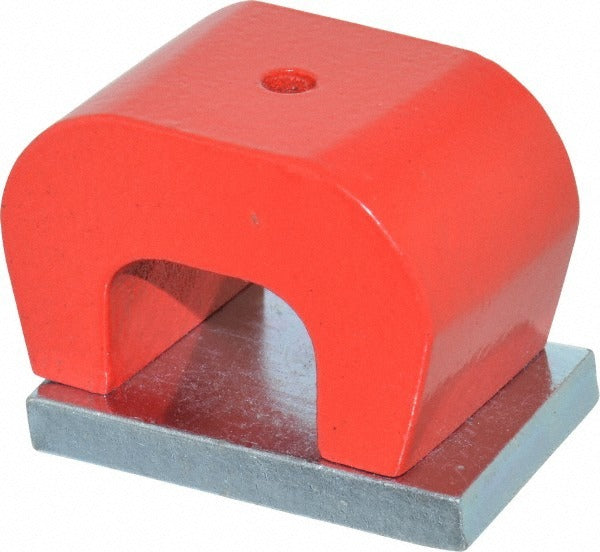

Eclipse M17008/MSC Alnico Power Magnet 1.75in Wide

Product Description

The ECLIPSE M17008/MSC is an Alnico power magnet designed for industrial and commercial applications requiring reliable magnetic holding or positioning force. Alnico alloys — composed of aluminum, nickel, and cobalt — deliver strong residual magnetic flux and excellent temperature resistance, with a maximum operating temperature of 1,022 degrees F. The magnet measures 1.75 inches in overall width, 1.125 inches deep, and 1.125 inches high, with a center hole diameter of 0.1875 inches. It weighs 0.4 pounds. This type of magnet is commonly installed or integrated by mechanical, electrical, and instrumentation technicians working on assemblies that require durable, heat-stable magnetic components.

Alnico power magnets like the M17008/MSC are used across a wide range of applications including sensing assemblies, motor components, holding fixtures, and other equipment where high-temperature stability and consistent magnetic performance are critical. The compact form factor and precision hole sizing make this magnet suitable for tight-tolerance installations in both new-build and replacement service contexts. It ships in a package quantity of one unit.

Key Features

• Alnico construction provides strong residual magnetism and high-temperature resistance up to 1,022 degrees F
• Center hole diameter of 0.1875 inches for mounting or shaft-pass-through applications
• Compact footprint: 1.75 inches wide, 1.125 inches deep, 1.125 inches high
• Lightweight at 0.4 pounds — suitable for space-constrained assemblies
• Single-unit packaging supports low-quantity replacement and service needs

Compatibility

Designed as a replacement or component-level Alnico power magnet for industrial assemblies, sensing equipment, or motor subassemblies requiring a 0.1875-inch center hole and 1.75-inch overall width form factor.

Installation Notes

Installation is typically performed by qualified mechanical or electrical technicians. De-energize and lock out any associated electrical equipment before handling or replacing magnets in powered assemblies. Alnico magnets are brittle compared to other magnet types — avoid impact, dropping, or clamping with excessive force, as chipping or cracking can occur. Verify magnetic polarity orientation before final assembly.
