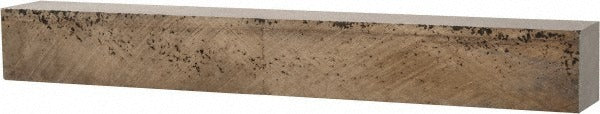

Eclipse M16568/MSC Alnico Bar Magnet 6 X 0.75 X 0.75 in

Product Description

The ECLIPSE M16568/MSC is an Alnico Grade 5 rectangle bar magnet rated for demanding industrial and trade applications. Measuring 6 inches long by 0.75 inches wide by 0.75 inches high, this magnet delivers a maximum pull force of 15.8 pounds. Alnico 5 is a high-coercivity alloy known for strong magnetic output and exceptional temperature resistance, with a maximum operating temperature of 1,022 degrees F. The M16568/MSC is suited for use in sensors, holding fixtures, motors, generators, and magnetic assemblies where a stable, high-temperature-rated permanent magnet is required. Electricians, mechanical technicians, and instrumentation specialists are the typical installers and end users of this component.

This bar magnet is used across a wide range of commercial and industrial applications including motor and generator assemblies, relay and sensor components, magnetic chucks, holding devices, and educational or laboratory setups. Its rectangular bar form factor allows straightforward integration into both OEM equipment builds and field repair scenarios. The Alnico 5 material grade makes it particularly well suited for high-temperature environments where ceramic or rare-earth magnets may not be appropriate.

Key Features

• Alnico 5 material grade for high magnetic stability and elevated temperature performance
• Maximum operating temperature of 1,022 degrees F
• Maximum and average pull force of 15.8 pounds
• Rectangular bar shape for easy integration into fixtures, assemblies, and equipment
• Compact form factor at 6 x 0.75 x 0.75 inches and 0.9 pounds

Compatibility

Designed as an OEM-style permanent bar magnet suitable for motors, sensors, holding fixtures, and magnetic assemblies requiring Alnico Grade 5 material in a rectangular bar configuration.

Installation Notes

Installation of permanent magnets in electrical or mechanical assemblies should be performed by a qualified technician familiar with the host equipment. Keep the magnet away from sensitive electronic components, data storage media, and pacemakers during handling. Degaussing or remagnetizing Alnico magnets in the field requires specialized equipment and should not be attempted without proper tooling. Always verify the host assembly is de-energized before replacing or installing magnetic components.
