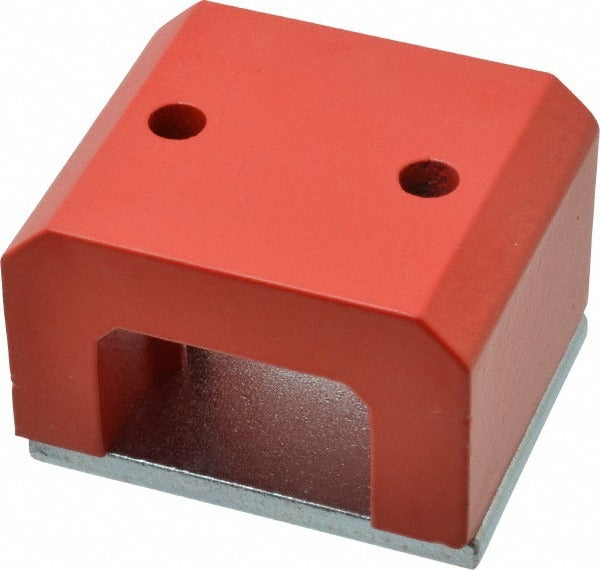

Eclipse 815 Alnico Power Magnet 80 Lb 2 Hole

Product Description

The ECLIPSE 815 is a two-hole Alnico power magnet designed for holding, lifting, and clamping applications that demand consistent, high-force magnetic retention. Built from Grade 5 Alnico material, it delivers an average pull force of 80 pounds and a maximum pull force of 81.57 pounds. The 815 measures 2.25 inches wide, 2.77 inches deep, and 1.63 inches high, with a pole width of 17.95 mm and a gap width of 34.13 mm. Its two mounting holes have a diameter of 0.311 inches each, allowing secure fastening to fixtures, jigs, or assemblies. The unit weighs 0.69 pounds.

This magnet is suited for industrial and trade applications where a compact, high-pull permanent magnet is needed in a fixed-mount configuration. Typical uses include magnetic chucks, holding fixtures, sensor mounting, motor components, and equipment requiring reliable magnetic force retention at elevated temperatures. The Grade 5 Alnico construction supports a maximum operating temperature of 550 degrees C, making it appropriate for high-heat environments where polymer-bonded or ferrite magnets would lose performance.

Key Features

• 80 lb average pull force and 81.57 lb maximum pull force for reliable high-load retention
• Grade 5 Alnico material rated to 550 degrees C maximum operating temperature
• Two mounting holes at 0.311 inches diameter for secure fixed-mount installation
• Compact footprint: 2.25 inches wide, 2.77 inches deep, 1.63 inches high
• 17.95 mm pole width and 34.13 mm gap width for precise magnetic circuit geometry
• Weighs 0.69 pounds for easy handling and installation

Compatibility

Designed as a fixed-mount Alnico power magnet suitable for industrial holding, clamping, and lifting fixtures requiring two-hole mounting and high-temperature magnetic performance.

Installation Notes

Install using appropriate fasteners through the two 0.311-inch mounting holes, ensuring the mating surface is clean, flat, and free of debris to achieve full rated pull force. De-energize or isolate any adjacent electrical equipment before working near the magnet to prevent interference with sensitive components. Alnico magnets can be partially demagnetized by exposure to strong opposing magnetic fields, so handle and store away from other high-strength magnets. Installation is typically performed by maintenance technicians or machine builders familiar with permanent magnet assemblies.
