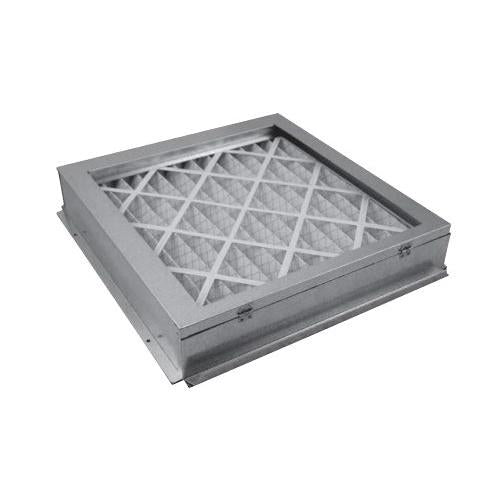

Ecco Manufacturing 599456 Filter Base 16x25 Inch

Product Description

The ECCO MANUFACTURING 599456 is a filter base designed to support and house standard 16 x 25 inch air filters in HVAC air handling applications. Measuring 28.625 inches in length, 17.625 inches in width, and 6 inches in height, this base provides a stable, properly sized platform that keeps the filter properly seated and aligned during system operation. HVAC technicians install this component as part of new equipment setups or as a replacement when an existing filter base is damaged or missing. It provides the structural foundation necessary to maintain filter position and ensure effective air filtration within the system.

This filter base is suited for residential and light commercial HVAC installations where a 16 x 25 inch filter is specified. It is typically positioned at the air handler or furnace air intake to hold the filter in place during blower operation. Proper sizing of the base to the filter dimensions prevents air bypass around the filter media, which would reduce system efficiency and allow particulates to pass through unfiltered. This part is appropriate for new installations and retrofit applications where a dedicated filter base is required.

Key Features

• Sized to accommodate standard 16 x 25 inch air filters
• Overall dimensions of 28.625 inches length by 17.625 inches width by 6 inches height
• Provides stable filter seating to prevent air bypass around the filter media
• Suitable for both new installations and replacement applications

Compatibility

Designed as an OEM-style replacement filter base for HVAC air handling systems requiring a 16 x 25 inch filter base configuration.

Installation Notes

Installation should be performed by a qualified HVAC technician. Power down the air handling unit at the disconnect and thermostat before beginning any work. Verify that the filter base is properly aligned and secured before reinstalling the filter and restoring system power. Consult local mechanical codes for applicable installation requirements.

Technical Specifications

• Filter Size: 16 x 25 inches
• Length: 28.625 inches
• Width: 17.625 inches
• Height: 6 inches

Standard Information

• Brand: ECCO MANUFACTURING
• Manufacturer Part Number: 599456
