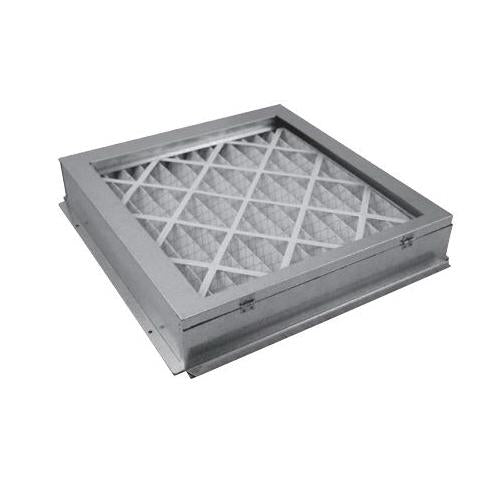

Ecco Manufacturing 599364 Filter Base 24x24 Inch

Product Description

The ECCO MANUFACTURING 599364 is a filter base designed to support and house air filters in HVAC air handling and furnace applications. This base provides a stable mounting platform that keeps filters seated correctly within the airstream, helping maintain proper filtration efficiency and system airflow. It measures 28.625 inches in length, 24.625 inches in width, and 4 inches in height, accommodating a standard 24 x 24 inch filter footprint. Licensed HVAC technicians and sheet metal installers typically handle this component during new installations or system retrofits.

This filter base is suited for residential and light commercial HVAC systems where a 24 x 24 inch filter is specified. It is commonly installed in air handler cabinets, platform-style filter sections, and return air plenums. The 4-inch height provides clearance for standard or medium-depth filter media. This component is typically placed at the point in the air distribution system where the filter is accessed for routine maintenance and replacement.

Key Features

• Accommodates standard 24 x 24 inch filter footprint
• 28.625-inch length and 24.625-inch width provide a secure, well-fitted base
• 4-inch height suitable for standard filter depth applications
• Designed for stable filter seating to maintain consistent airflow and filtration

Compatibility

Designed as an OEM-style replacement or new-installation filter base for HVAC air handling systems requiring a 24 x 24 inch filter configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal installer. Shut down and lock out the air handling unit before beginning work. Verify that the filter base is properly sealed within the plenum or cabinet to prevent air bypass around the filter media. Ensure the unit is fully reassembled and all access panels are secured before restoring power.

Technical Specifications

• Filter Size: 24 x 24 inches
• Length: 28.625 inches
• Width: 24.625 inches
• Height: 4 inches

Standard Information

• Brand: ECCO MANUFACTURING
• Manufacturer Part Number: 599364
