Product Description

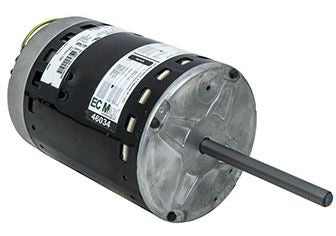

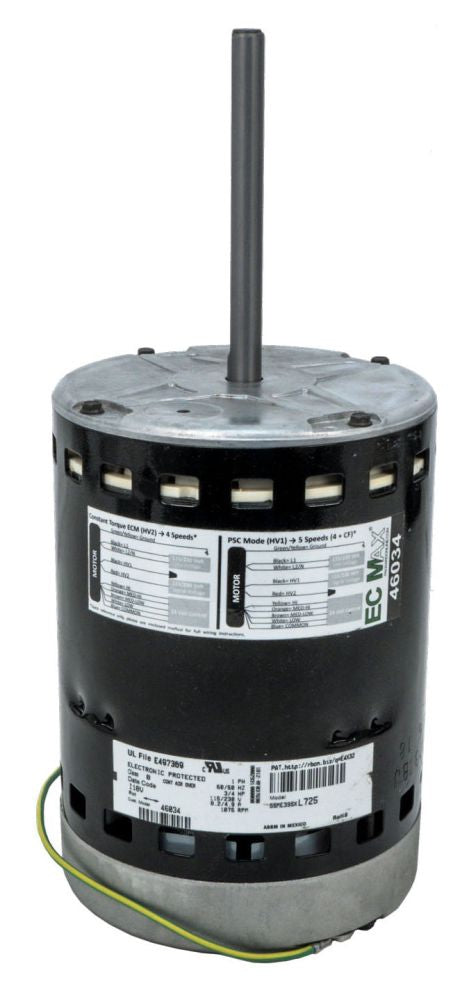

The EC Max model 46034 is a reliable 3/4 HP electronically commutated motor. It operates at a voltage range of 115/208 to 230 Volts AC and supports 50/60 Hertz frequencies. This high-performance motor provides efficient operation for heating and cooling systems.
- Power Rating: 3/4 HP
- Speed: 1075 RPM
- Reversible operation
Product Highlights
This motor is designed for indoor applications, such as furnaces, air handlers, and heat pumps, making it versatile for various HVAC needs.
Product Information
Standard Information
-
Manufacturer: EC Max
-
Mounting: Belly Band
Technical Specifications
-
Enclosure Type: Open
-
NEMA Frame Size: 48
-
Number of Speeds: 4
-
Efficiency: 80 Percent
-
Motor FLA: 8.2/4.9 Amp
-
Insulation Class: B
-
Shaft Size: 1/2 inch diameter x 5 inch length
-
Size: 7-5/8 inch length (less shaft)
