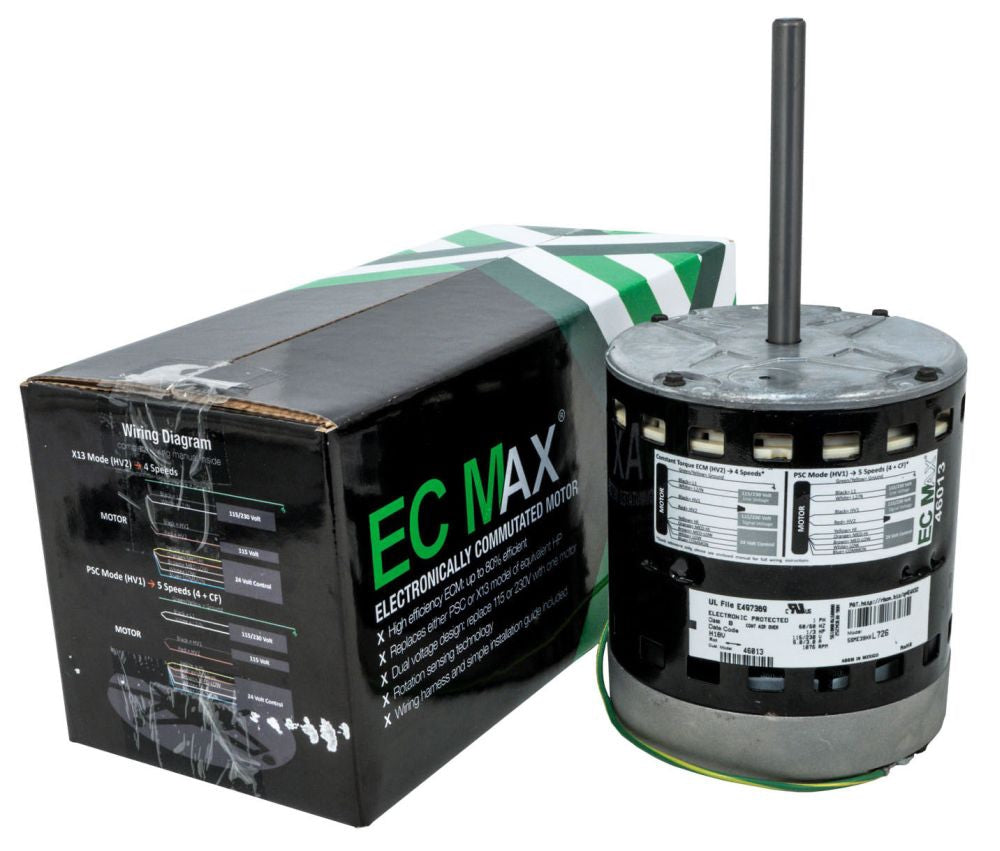

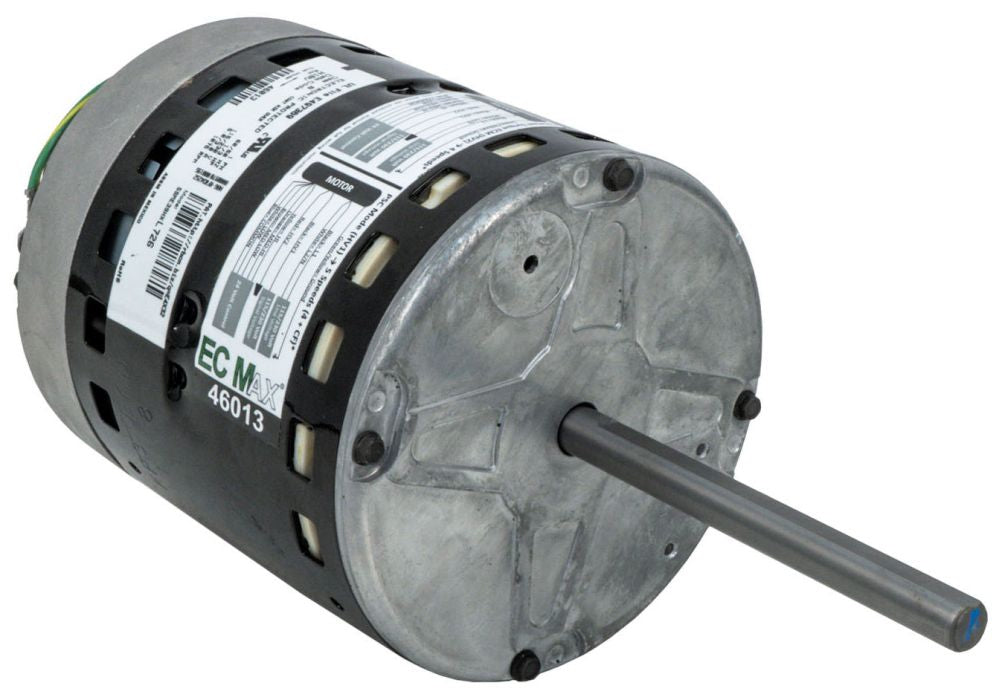

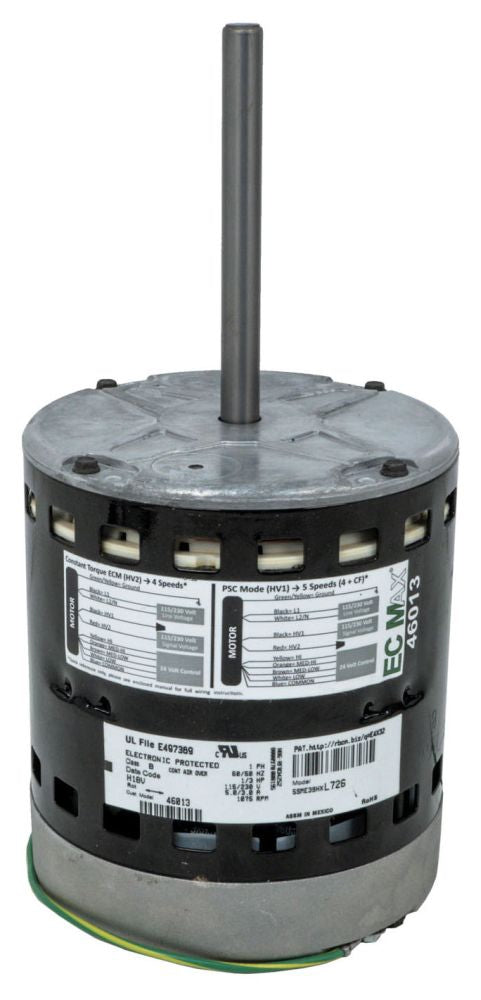

EC Max 46013 EC Direct Drive Blower Motor 1/3 HP 115/208 to 230 VAC 50/60 Hz Replacement MPN

Product Description

The EC Max 46013 is an electronically commutated motor designed for HVAC applications. This motor is highly efficient, providing a power rating of one third horsepower. It operates on dual voltage systems, accepting both 115 and 230 volt AC with a frequency of 50/60 Hertz. Ideal for indoor furnaces, air handlers, and heat pumps, this motor features a four-speed operation at a speed rating of one thousand seventy-five RPM.

• Electronically Commutated Technology
• Compatible with various HVAC systems
• Includes wiring harness for easy installation

Product Highlights

The EC Max 46013 motor ensures high efficiency and reliable performance.

Product Information

Standard Information

• Brand: EC Max
• UPC: 84089912327

Technical Specifications

• Power Rating: 1/3 HP
• Voltage Rating: 115/208 to 230 Volt AC
• Frequency Rating: 50/60 Hertz
• Motor FLA: 5/3 Amp
• Number of Speeds: 4
• Speed Rating: 1075 RPM
• Reversible: Yes
• Efficiency: 80 Percent
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: Belly Band
• Application: Indoor Furnace, Air Handler, Heat Pump
• Type: Direct Drive, Electronically Commutated
• Shaft Size: 1/2 Inch Diameter x 5 Inch Length
• Size: 7-5/8 Inch Length (Less Shaft)
• Chord Length: 45 Inch
