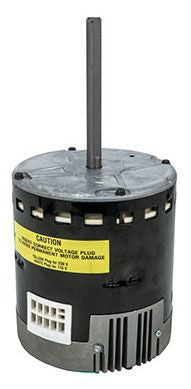

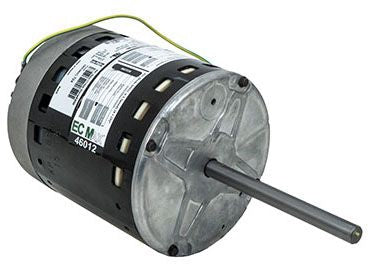

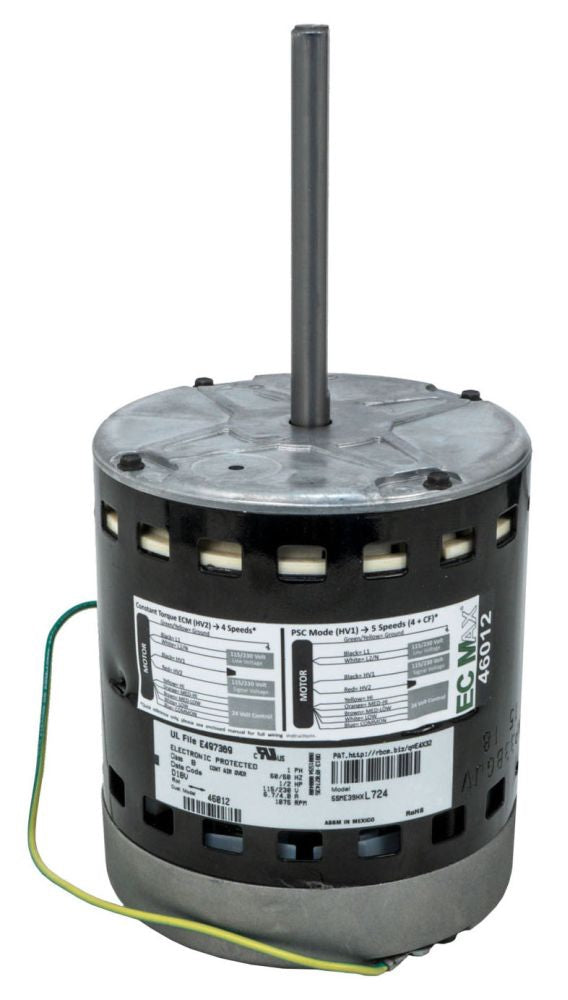

EC Max 46012 EC Direct Drive Blower Motor 1/2 HP 115208 to 230 VAC 50/60 Hz

Product Description

The EC Max 46012 is an electronically commutated motor designed for HVAC applications. It operates at a power rating of one half horsepower with a voltage range of 115 to 208 to 230 volt alternating current.

• High efficiency with up to eighty percent efficiency rating.
• Dual voltage capability allows compatibility with various electrical systems.
• Includes wiring harness for easy installation.

Product Highlights

This motor is suitable for indoor furnaces, air handlers, and heat pumps. It features a belly band mounting design and includes a simple installation guide.

Product Information

Standard Information

• Brand: EC Max
• Manufacturer Part Number (MPN): 46012

Technical Specifications

• Enclosure Type: Open
• Power Rating: 1/2 HP
• Voltage Rating: 115/208 to 230 Volt AC
• Frequency Rating: 50/60 Hertz
• Motor FLA: 6.7/4 Amp
• Speed Rating: 1075 RPM
• Efficiency: 80 Percent
• NEMA Frame Size: 48
• Mounting: Belly Band
• Shaft Size: 1/2 Inch Diameter x 5 Inch Length
• Size: 6-3/8 Inch Length (Less Shaft)
• Chord Length: 45 Inch
