Product Description

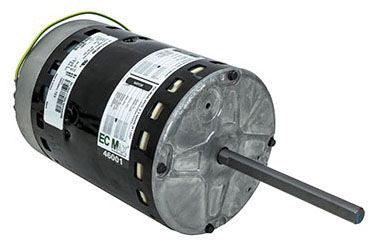

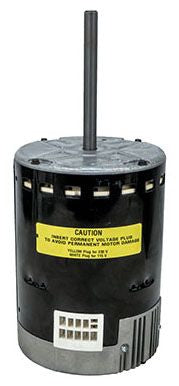

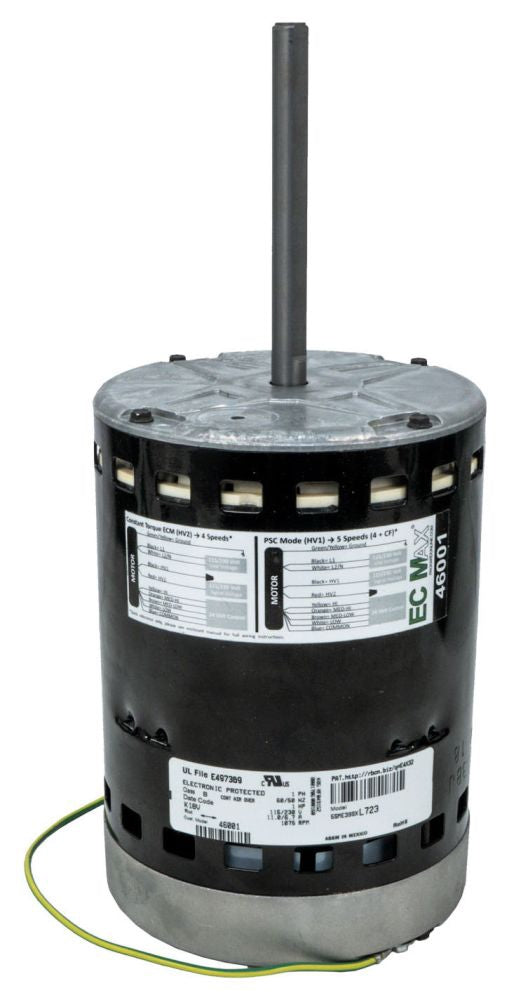

The EC Max 46001 is a blower motor with a power rating of one horsepower and 115/230 volt compatibility. This motor is designed for efficient operation in heating and cooling systems. It is suitable for indoor furnaces, air handlers, and heat pumps.
- Power rating of one HP.
- Operates at 115/230 VAC with a frequency of 50/60 Hz.
- Electronically commutated and direct drive design.
Product Highlights
The EC Max 46001 offers high efficiency and reversible operation, making it a versatile choice for HVAC applications.
Product Information
Standard Information
-
Manufacturer: EC Max
-
UPC: 84089912326
Technical Specifications
-
Product ID: 69830
-
Efficiency: 80 Percent
-
Speed Rating: 1075 RPM
-
Voltage Rating: 115/230 Volt AC 1-Phase
-
Motor FLA: 11/6.7 Amp
-
Mounting: Belly Band
-
Frame Size: NEMA 48
-
Weight: 18.85 Pounds
