Ebaa Iron 210600 Megaflange Flange Adapter 6 Inch C900

Product Description

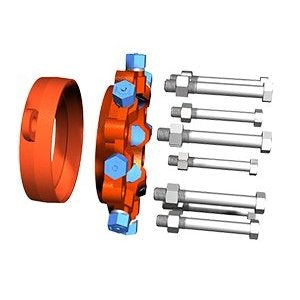

The EBAA IRON 210600 is a 6-inch Megaflange restrained joint flange adapter designed for use with ductile iron pipe and C900 PVC pipe outside diameters. This fitting creates a secure, restrained mechanical connection between a plain-end pipe and a flanged valve, fitting, or equipment. The assembly ships complete with a gasket, nuts, and bolts, reducing the need for separate hardware sourcing. It is installed by waterworks contractors, municipal utility crews, and licensed plumbers working on pressurized water distribution systems where joint restraint is required by design or code.

This adapter is suited for underground and above-grade water main installations where a transition from plain-end ductile iron or C900 PVC pipe to a flanged connection is required. Typical applications include valve settings, pump stations, hydrant leads, and meter vault connections in municipal water distribution and industrial water systems. The restrained design resists thrust forces at the joint without requiring thrust blocking in many installations, making it a practical choice for congested utility corridors or trenchless applications.

Key Features

• Restrained joint design resists thrust forces at the flange transition
• Compatible with both ductile iron pipe and C900 PVC pipe outside diameters in the 6-inch size class
• Complete hardware kit included: gasket, nuts, and bolts ship with the adapter
• Megaflange series provides a bolt-on flange interface for connection to standard flanged valves and fittings
• Eliminates the need for concrete thrust blocking in many restrained-system designs

Compatibility

Designed for use with 6-inch ductile iron pipe and C900 PVC pipe having a ductile iron outside diameter. Intended for connection to standard flanged valves, fittings, and equipment in pressurized water distribution systems.

Installation Notes

Installation should be performed by a qualified waterworks contractor or licensed plumber in accordance with applicable local codes and AWWA standards. Depressurize and isolate the pipe section before beginning assembly. Follow the manufacturer torque sequence for the flange bolts to ensure even gasket compression. Confirm that the pipe outside diameter matches the specified ductile iron or C900 PVC OD before installation, as outside diameter determines proper seating of the restraint mechanism.

Technical Specifications

• Pipe Size: 6 inches
• Pipe Compatibility: Ductile iron pipe and C900 PVC pipe (ductile iron OD)
• Hardware Included: Gasket, nuts, and bolts
• Joint Type: Restrained flange adapter
• Series: Megaflange 2100

Standard Information

• Brand: EBAA IRON
• Manufacturer Part Number: 210600
