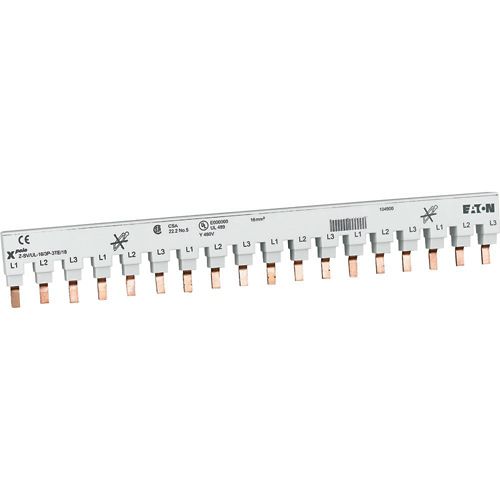

Eaton Z-SV/UL-16/1P-1TE/18 Busbar 18 Terminals

Product Description

The EATON Z-SV/UL-16/1P-1TE/18 is a busbar designed for distribution applications. This insulated busbar is suitable for feeder and branch circuits and is compatible with FAZ-NA and FAZ-RT series devices. It ensures reliable and safe operation in industrial and commercial switchgear.

• Insulated for enhanced safety
• Suitable for use with miniature, residual current, and combined circuit breakers
• Designed for industrial and advanced commercial applications

Product Highlights

This busbar provides a safe and reliable solution for power distribution in industrial and commercial settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: Z-SV/UL-16/1P-1TE/18

Technical Specifications

• Product Name: Eaton FAZ accessory bus bar
• Catalog Number: Z-SV/UL-16/1P-1TE/18
• EAN: 4015081047048
• Product Length/Depth: 311.6 mm
• Product Height: 54 mm
• Product Width: 15.5 mm
• Compliances: RoHS conform
• Certifications: UL 489
• Global Catalog: 104894
• Product Type: Distribution parts
• Used with: Feeder Circuit, Branch Circuit
• Type: BusbarZ-SV
• Features: Insulated
• Accessory/spare part type: Busbar for combined residual current/power circuit breaker Busbar for miniature circuit breaker Busbar for residual current circuit breakers
• Electric connection type: Pin
• Rated surge voltage: 9.5 KV
• Suitable for number of devices: 18
• Application: Switchgear for industrial and advanced commercial applications
• Number of poles: Single-pole
• Degree of protection: IEC: IP20, UL/CSA Type: - IEC/EN 60898; UL 489; CE marking
• Voltage rating (UL CSA 13): Refer to main components FAZ, FAZ-NA, FAZ-RT
• Cross section: 16 mm
• Number of modular spacings: 1
• Number of phases: 1
• Rated operational voltage (Ue) - max: 690 V
• Functions: Busbar
• UPC: 786689005207
• Catalog Notes: Do not cut.
• Terminals: 18 terminals
• Amperage Rating: 80 A
• Phase: Single-phase
• Manufacturer: Eaton - Cutler Hammer
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Series: FAZ-NA Series
• Special Features: Z-SV/UL-16/1P-1TE/18
• Primary Type: External Accessories
• Approvals: UL 489
• Mounting: DIN Rail
• Poles: 1
• Dimensions: 0.61 in L x 12.2 in W x 1.81 in H
