Eaton XTSC6P3BBTD Mmc Fvnr 4-6.3A B-M

Product Description

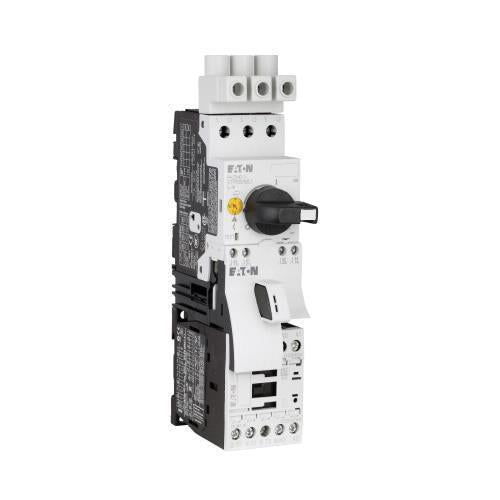

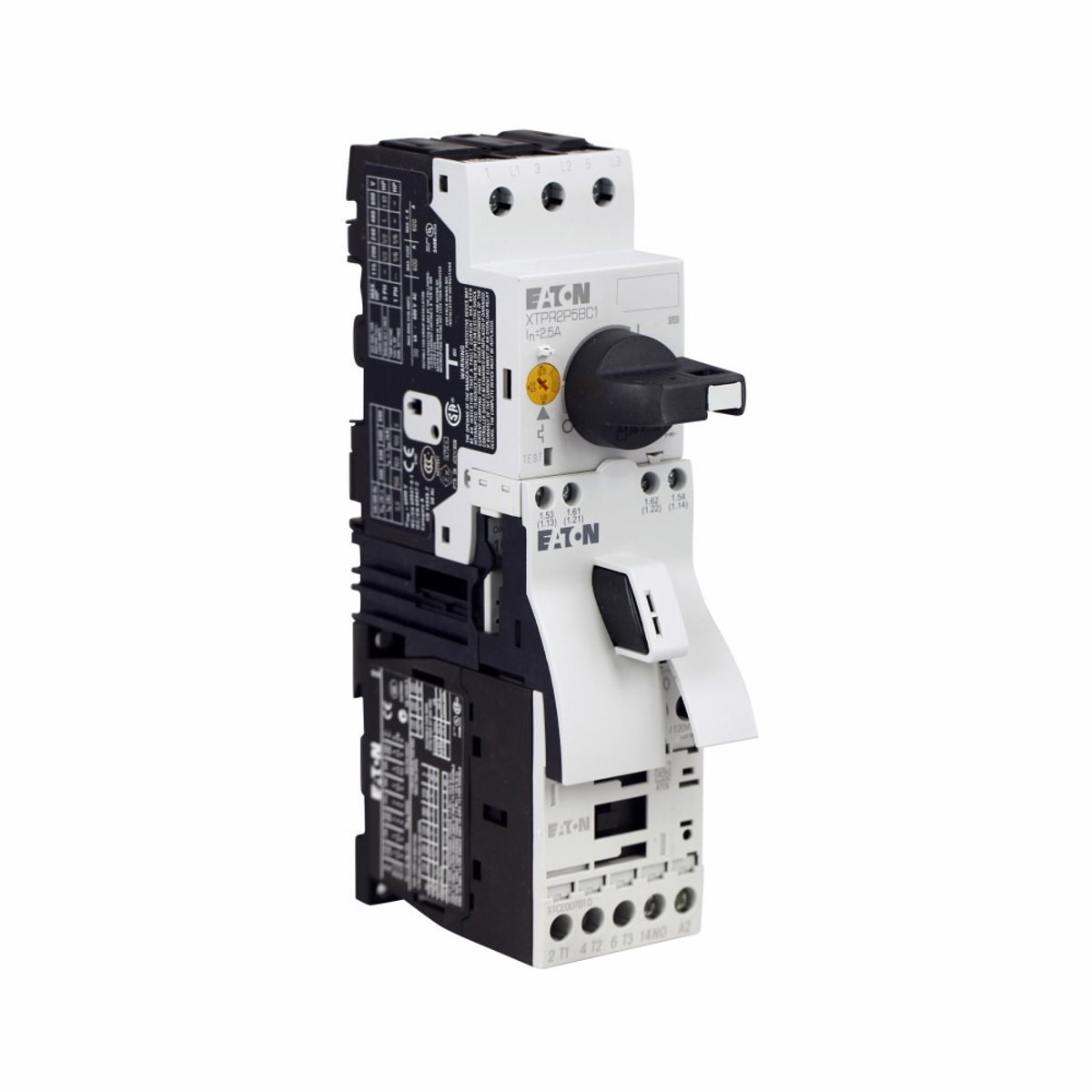

The Eaton XTSC6P3BBTD is an XT IEC FVNR manual motor controller. This 50A motor controller features a 55 mm frame size, a 550V 50 Hz, 600V 60 Hz coil, and a 24 Vdc coil voltage. It combines a manual motor protector with an IEC contactor to provide motor disconnect function, thermal overload protection, and magnetic short circuit protection.

• ON/off rotary handle with lockout provision
• Visible trip indication
• Test trip function
• Built-in heater and magnetic trip elements to protect the motor

Product Highlights

Provides a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short circuit protection and remote control operation in one compact, assembled unit.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTSC6P3BBTD
• Country of Origin: Germany

Technical Specifications

• Type: Full Voltage Non-Reversing
• Brand: Eaton
• Frame: 45 mm
• Width: 1.77 in
• Height: 7.09 Inch
• Length: 3.77 Inch
• Amperage: 6.3 Amp
• Standard: CE Marked,CSA File No. 229767,Class 3211-05,DIN VDE 0600,IEC 60947,UL 508,UL Listed File E245398
• Coil Voltage: 24 VDC
• Catalog Number: XTSC6P3BBTD
• Manufacturer: Eaton
• Country of Origin: Germany
• Made in USA: No
• Application: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Item Type: Motor control
• Auxiliary Contact Rating: 1NO 1NC
• Frequency Rating: 50 Hz
• Motor Power: 5 hp
• Operating Temperature: 140 deg F
• Phase: 3 ph
• Reset Type: Manual
• Series: XTSC
• Motor FLA Range: 4-6.3 A
• Alternate Mfr Part Number: 3-1806-143A
• Coil Power: 24 Vdc W
• Contact Configuration: 1 NO, 1 NC
• Contact Current Rating: 6.3 Amp
• Contact Form: 1 NO + 1 NC
• Control Voltage: 24 V
• Current Rating: 6.3 A
• Current, Ratings: 6.3 Amp
• Enclosure Type: Open
• Family Name: XT IEC Power Control Family
• For Use With: 3-Phase Motors
• Frame Type: B Frame (45mm)
• Horsepower, Max, 3 Phase, at 200 V: 1.5
• Horsepower, Max, 3 Phase, at 240 V: 1.5
• Horsepower, Max, 3 Phase, at 480 V: 3
• Horsepower, Max, 3 Phase, at 600 V: 5
• Horsepower Rating: 5 hp
• IP Rating: IP20
• Overall Depth: 178.5 mm
• Overall Length: 45 mm
• Overall Width: 95.7 mm
• Power Rating: 2200 W
• Primary Type: DOL Starter
• Special Features: Visible Trip Indication
• Standards: CE, IEC, UL
• Starter Type: IEC Starter
• Supply Voltage: 24 VDc
• Voltage Rating: 690 V
• Product Series: XTSC
• Description: Eaton XT IEC FVNR Manual Motor Controller, 50A, 55 mm Frame size, 550V 50 Hz, 600V 60 Hz coil,24 Vdc
• FLA Adjustment Range: 4-6.3
• Voltage: 24 VDC
• Reversing: No
• Frame Size-MMP: B
• Frame Size-Contactor: B
• Approvals: CE, UL
• Part Number: XTSC6P3BBTD
• Category: Motor Control
• Item Subcategory: Part And Accessory
• Amperage Rating: 6.3 A
• Coil Voltage Maximum: 24 VDC
