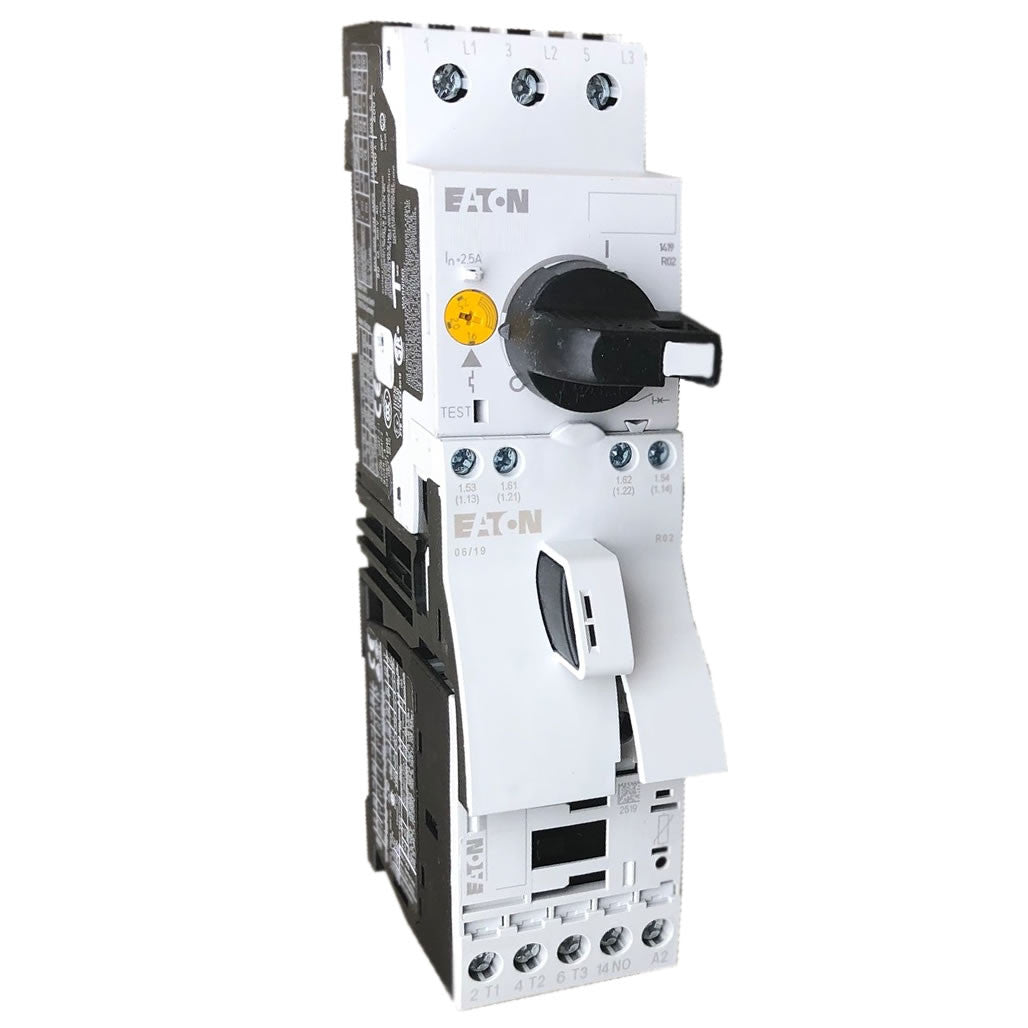

Eaton XTSC2P5BBA Combination Motor Starter 1.6-2.5A

Product Description

The Eaton XTSC2P5BBA is a factory-assembled combination motor controller from the XT IEC power control family. This non-reversing starter integrates a manual motor protector with a 3-pole contactor, providing a complete and compact solution for motor disconnect, thermal overload protection, and remote control within a standard 45mm frame.

• Integrated Design: Comprised of the XTPR2P5BC1 Manual Motor Protector and the XTCE007B10A 7 Amp Contactor.
• Advanced Protection: Features Class 10 thermal overload protection and phase loss sensitivity to ensure motor windings remain protected.
• User-Friendly Safety: Equipped with an ON/OFF rotary handle that includes lockout/tagout (LOTO) provisions and a visible trip indicator.

Product Highlights

The Eaton XTSC2P5BBA provides motor disconnect, thermal overload protection, and remote control.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTSC2P5BBA

Technical Specifications

• FLA Adjustment Range: 1.6 – 2.5 Amps
• Coil Voltage: 110V 50Hz / 120V 60Hz AC
• Phase: 3 Phase
• Auxiliary Contacts: 1 N.O. / 1 N.C. (Standard Front Mount)
• Short Circuit Rating: 35 Amps
• Frame Size: 45 mm (B-Frame)
• 200V / 208V Horsepower: 0.5 HP
• 240V Horsepower: 0.5 HP
• 480V Horsepower: 1 HP
• 600V Horsepower: 1.5 HP
• Brand: Eaton
• Manufacturer Part Number: XTSC2P5BBA
• Alternate Mfr Part Number: 3-1806-106A
• Contact Configuration: 1 NO, 1 NC
• Control Voltage: 110 V
• Current Rating: 2.5 A
• Enclosure Type: Open
• Family Name: XT IEC Power Control Family
• For Use With: 3-Phase Motors
• Frame Type: B Frame (45mm)
• Horsepower, Max, 3 Phase, at 200 V: 0.5
• Horsepower, Max, 3 Phase, at 240 V: 0.5
• Horsepower, Max, 3 Phase, at 480 V: 1
• Horsepower, Max, 3 Phase, at 600 V: 1.5
• Horsepower Rating: 1.5 hp
• Input Current: 2.5 A
• IP Rating: IP20
• Motor, Amp, Full Load: 1.6-2.5 A
• Motor FLA Range: 1.6-2.5 A
• Mounting Type: DIN Rail Mount
• Number of Poles: 3
• Overall Depth: 178.5 mm
• Overall Length: 45 mm
• Overall Width: 95.7 mm
• Power Rating: 750 W
• Primary Type: DOL Starter
• Series: XT IEC Series
• Special Features: Visible Trip Indication
• Standards: CE, IEC, UL
• Starter Type: IEC Starter
• Supply Voltage: 120 VAC
• Type: Motor
• Voltage Rating: 690 V
