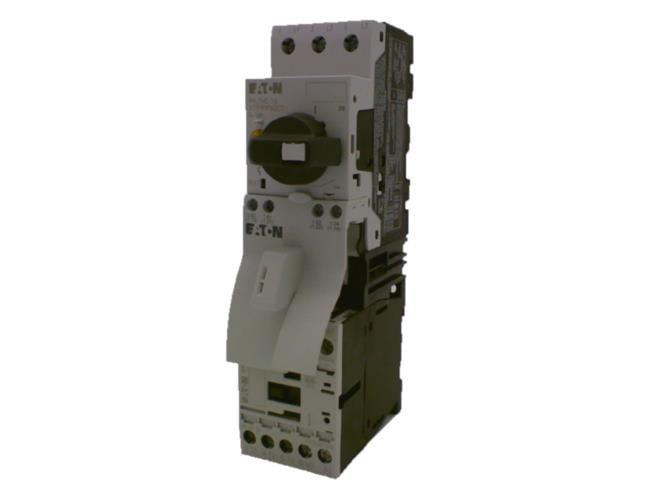

Eaton XTSC1P6BBA DOL Starter, 3 Pole, IEC, 1-1.6A FLA, 110VAC@50Hz, 120VAC@60Hz Coil, 1 NO, 1 NC Aux

Product Description

The Eaton XTSC1P6BBA is a Cutler Hammer XT IEC open non-reversing manual motor controller. It combines a manual motor protector with an IEC contactor to provide a complete motor protection solution. It combines motor disconnect function, thermal overload protection, magnetic short circuit protection and remote control operation in one compact, assembled unit. These assembled manual motor controllers cover motors with FLA ratings from 0.10 A to 63 A.

• ON/OFF Rotary Handle with Lockout Provision
• Visible Trip Indication
• Test Trip Function

Product Highlights

The Eaton XTSC1P6BBA provides motor disconnect, thermal overload protection, and remote control in one unit.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTSC1P6BBA
• Country of Origin: Germany

Technical Specifications

• Brand: Eaton - Cutler Hammer
• Coil Power: 110v 50 Hz, 120V 60 Hz W
• Contact Configuration: 1 NO, 1 NC
• Contact Current Rating: 1.6 Amp
• Contact Form: 1 NO + 1 NC
• Control Voltage: 110 V
• Current Rating: 1.6 A
• Enclosure Type: Open
• Family Name: XT IEC Power Control Family
• For Use With: 3-Phase Motors
• Frame Type: B Frame (45mm)
• Horsepower, Max, 3 Phase, at 480 V: 0.75
• Horsepower, Max, 3 Phase, at 600 V: 1
• Horsepower Rating: 1 hp
• Input Current: 1.6 A
• IP Rating: IP20
• Manufacturer Part Number: XTSC1P6BBA
• Motor, Amp, Full Load: 1-1.6 A
• Motor FLA Range: 1-1.6 A
• Mounting Type: DIN Rail Mount
• Number of Poles: 3
• Phase: 3 Phase
• Power Rating: 550 W
• Primary Type: DOL Starter
• Series: XT IEC Series
• Special Features: Visible Trip Indication
• Standards: CE, IEC, UL
• Starter Type: MMP XTPR
• Supply Voltage: 120 VAC
• Type: Motor
• UPC Code: 782116603435
• Voltage Rating: 690 V
• Motor FLA: 1 - 1.6 FLA
• Starter Rating: 1.6A
• Coil Voltage: 120/110V 60/50Hz
• Overload Relay: Adjustable
• Rating Hp/Volts: 3PH: 0.75hp/480V, 1hp/600V
• Operation: Non-Reversing
• Frame Size, Starter: IEC 45 mm
• Contactor Type: XTCE
• Frame Size, Contactor: IEC 45 mm
• Part #: XTSC1P6BBA
• Amperage Rating: 1.60A
• Standard: IEC 60947;CSA file No. 229767, Class 3211-05;UL Listed file E245398;UL 508;DIN VDE 0600;CE Marked
• IGCC: 4727
• Coil: 110V 50 Hz, 120V 60 Hz
