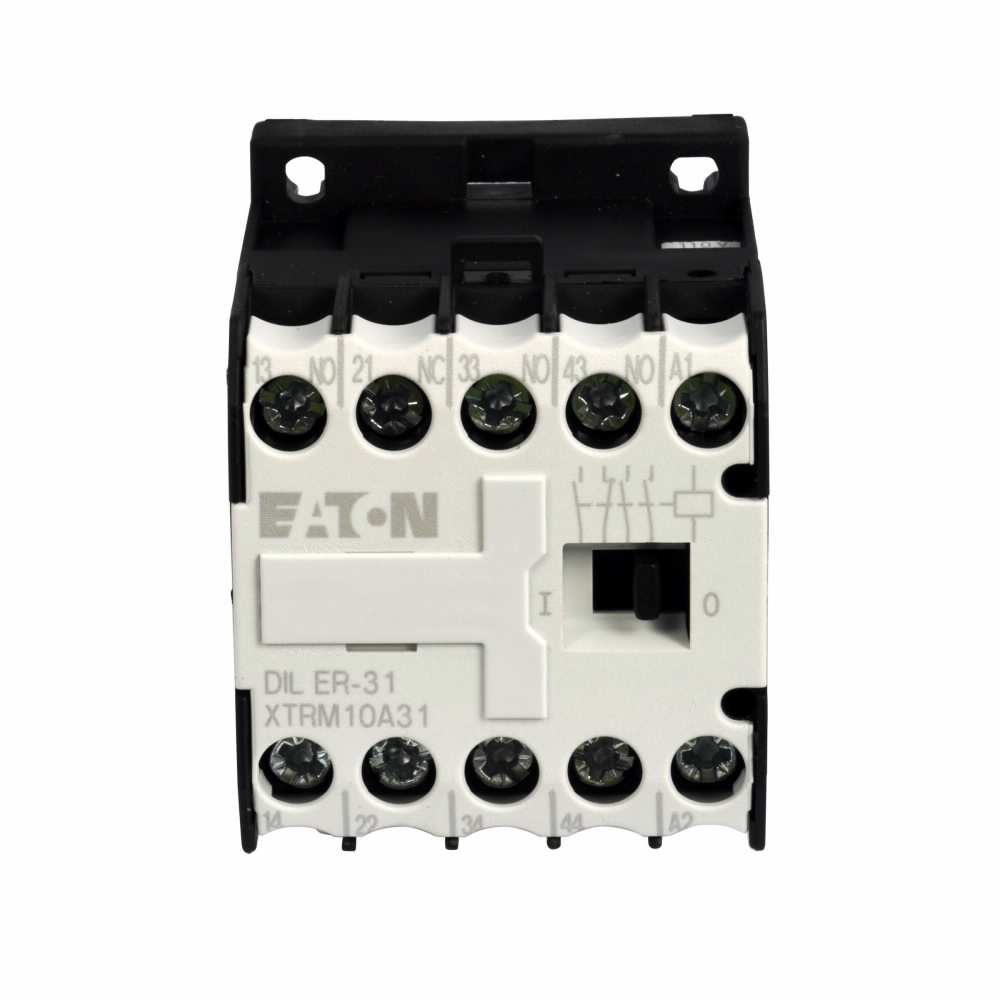

Eaton XTRM10A31A Miniature IEC Control Relay 10A 3NO-1NC 110/120 VAC Coil

Product Description

The Eaton XTRM10A31A is a miniature IEC control relay. This relay is designed for applications that require reliable switching. It features screw terminals for easy installation and a compact frame size. The relay has a contact configuration of three normally open and one normally closed. It operates at a coil voltage of 110 volts at fifty Hertz and 120 volts at sixty Hertz.

• Compact design for limited space
• Screw terminals for connection ease
• Rated for ten amperes operational current

Product Highlights

This control relay is ideal for commercial and institutional buildings. Its design allows it to interface reliably with larger control systems. The XTRM series is recognized for compliance with international safety standards.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: XTRM10A31A

Technical Specifications

• Type: Miniature
• Frame Size: Forty-five millimeters
• Coil Voltage: 110/120 VAC
• Amperage Rating: 10 A
• Contact Configuration: 3 NO, 1 NC
• Number of Poles: 4
• Dimensions: 54 mm L x 45 mm W x 58 mm H
• Temperature Rating: -13 to 122 deg F
• Enclosure: IP20
