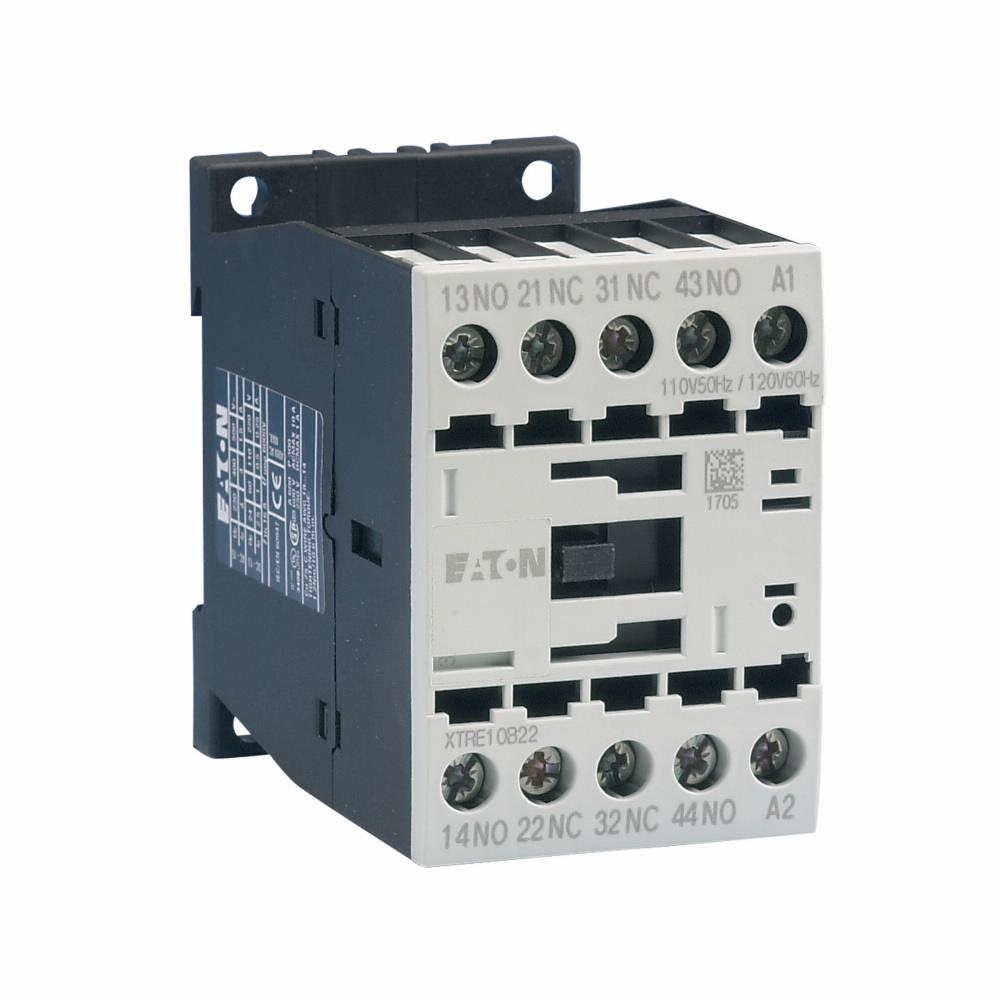

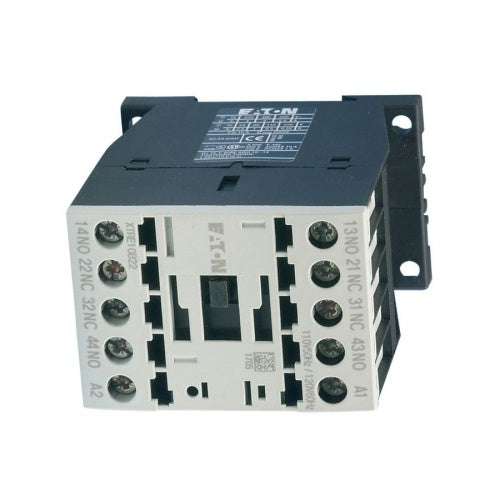

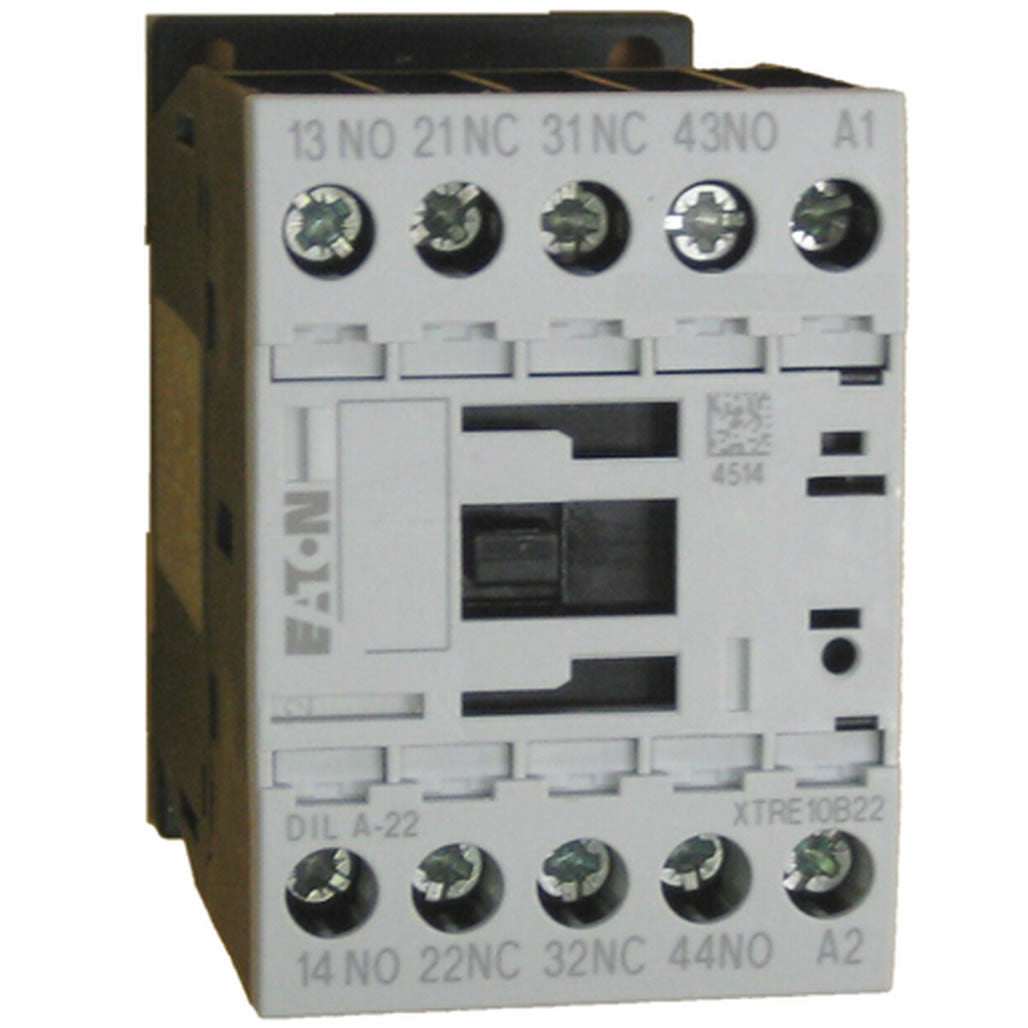

Eaton XTRE10B22C Control Relay 10 A 2NO-2NC Contact 415/480 VAC

EATON
Brand: EATON
SKU: XTRE10B22C
Availability: In Stock

Ships same day if ordered by 12 pm
$134.60
$134.60
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The EATON XTRE10B22C is part of the new line of XT relays and timers, including mini and standard frame control relays and auxiliary contacts. This control relay features a 2NO-2NC contact form and a 415/480 VAC coil. The compact, space-saving design ensures easy installation for various customer applications.

  • On delay and multi-function timers
  • Positively driven contacts between the relay and the auxiliary contact modules
  • 45 mm standard frame

Product Highlights

The EATON XTRE10B22C control relay is an efficient solution for IEC applications, meeting UL, CSA, and CE standards.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: XTRE10B22C
Technical Specifications
Contact Rating
6 A at 220/240 VAC, 4A at 380/400/415 VAC
Dimensions
1.81 x 2.76 x 3.07 in
Enclosure Type
IP20
Frequency Rating
50/60 Hz
Mounting Type
DIN Rail
Number of Poles
4
Series
XT Series
Temperature Rating
-13 to 122 deg F
Terminal Type
Screw
Amperage Rating
10 A
Contact Form
2NO-2NC
Coil Voltage
415/480 VAC
Product Name
Eaton XT IEC control relay
Catalog Number
XTRE10B22C
EAN
4015082764029
Product Length/Depth
1.81 in
Product Height
3.07 in
Product Width
2.76 in
Product Weight
0.5 lb
Certifications
UL Listed
Product Type
Control relay
Conventional thermal current
10A
Type
Control Relay
Frame size
45 mm - standard
Coil
415-480 Vac, 50/60 Hz
Contact configuration
2 NO, 2 NC
Terminals
Screw terminals
Rated operational current
6 A at 220/230/240 V 4 A at 380/400/415 V
Application
Motor and Power Control Equipment Applications
Poles
4P
Pole configuration
2 N.O. / 2 N.C.
AMP Rating
10 AMPS
Operating Temperature
-13 to +122 F
Relay Connection Type
Screw Connection
Component
Control Relay
Relay Throws
Single Throw 2 Normally Open & 2 Normally Closed
Relay Load Amperage
10 Amp
Coil Voltage Rating
480 Volt
Manufacturer
Eaton
Relay UL Rating
UL Listed
UNSPSC
39121529
