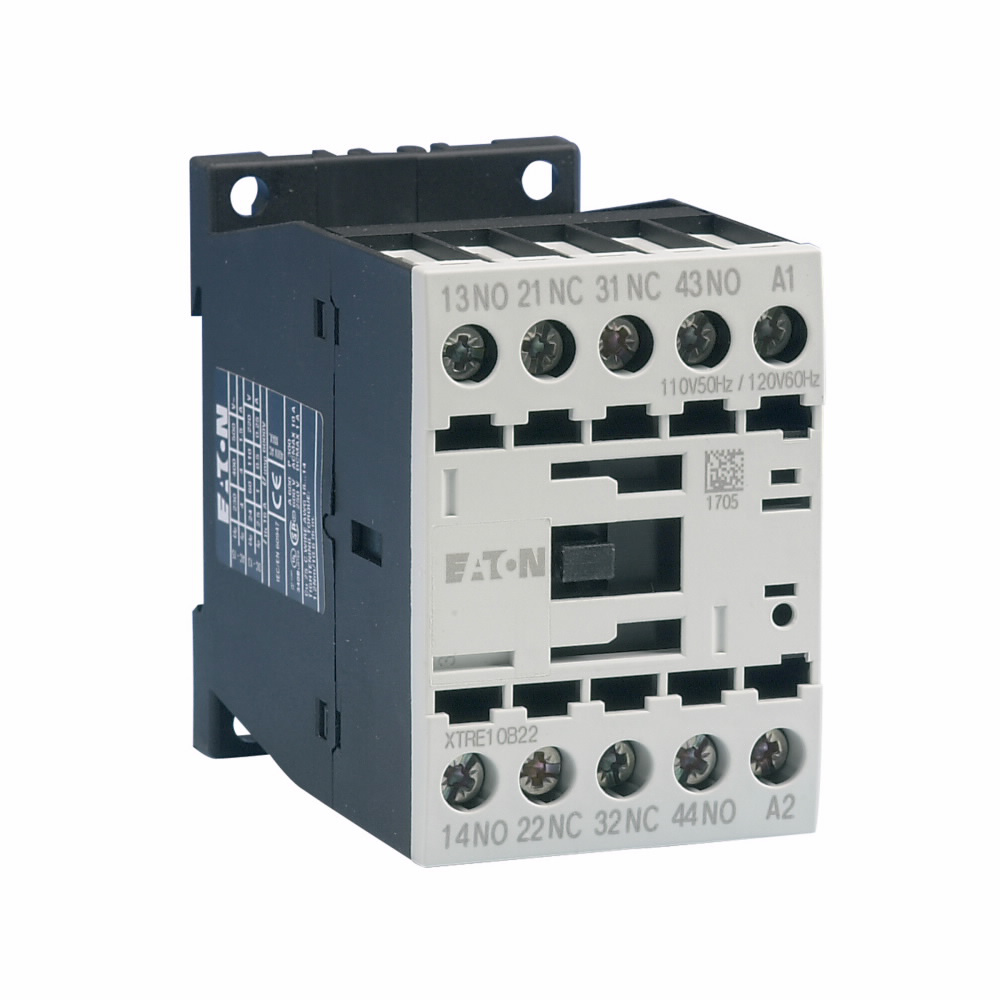

Eaton XTRE10B22A Control Relay 10A 45 mm 2NO-2NC

Product Description

The Eaton XTRE10B22A control relay features efficient control of electrical circuits. This relay operates with a coil voltage of one hundred ten to one hundred twenty volts AC at fifty to sixty hertz and has a contact configuration of two normally open and two normally closed.

• Rating: Ten amps at twenty-four volts DC
• Durable screw terminals
• Standard frame size of forty-five millimeters

Product Highlights

The Eaton XTRE10B22A control relay is designed for use in commercial and institutional buildings. It is suitable for applications requiring reliable control and circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Coil Voltage: 110/120 Vac

Technical Specifications

• Amperage Rating: 10 A
• Contact Configuration: 2 NO, 2 NC
• Standard: UL Listed
• Country of Origin: Romania
• Dimensions: 117 mm L x 45 mm W x 68 mm H
• Temperature Rating: -13 to 122 deg F
• Mounting Type: DIN Rail/Threaded
• Number of Pins: 10
• Enclosure Rating: IP20
