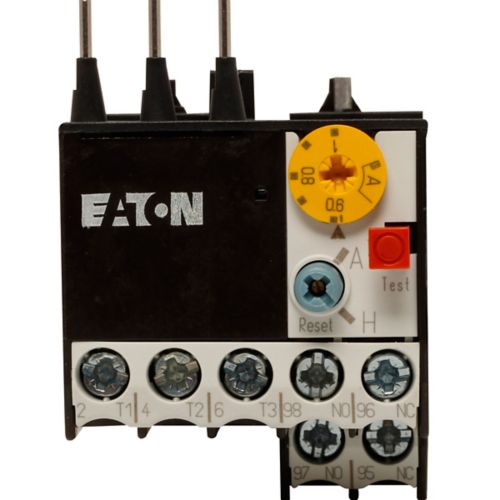

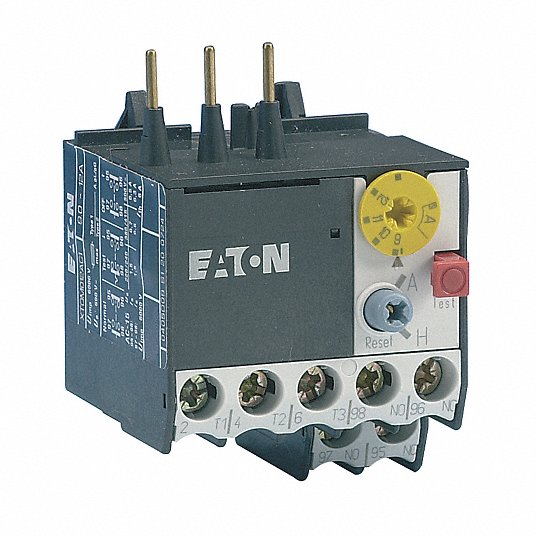

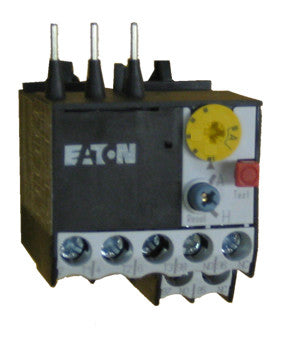

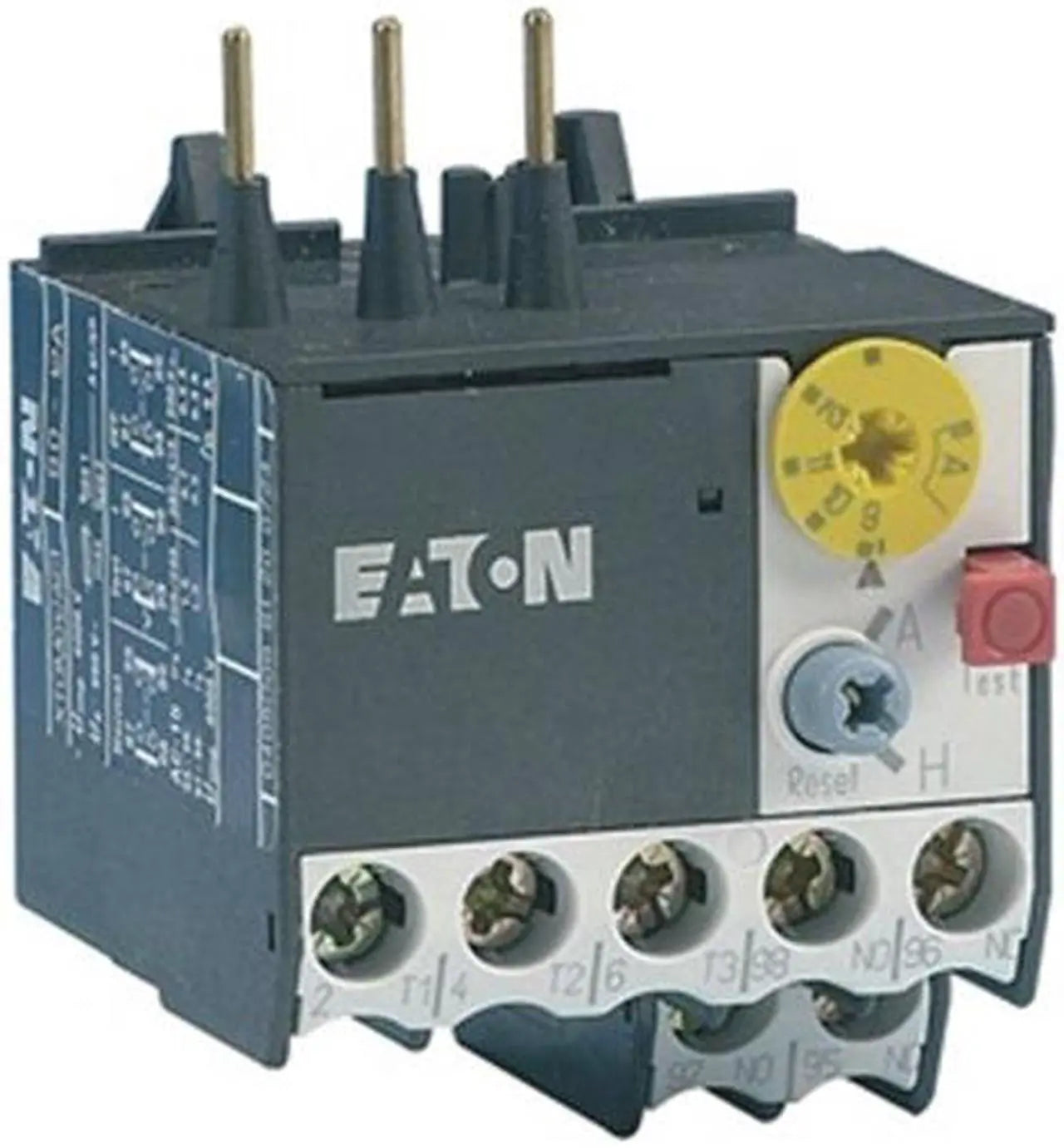

Eaton XTOM001AC1 Overload Relay, 0.60 to 1A, Class 10, 3p

Product Description

The Eaton XTOM001AC1 overload relay is an IEC control relay with a 0.6-1A overload range and a mini 45 mm frame size. It features a 1NO-1NC contact configuration and direct-to-contactor mounting. Designed to protect connected loads from overheating, it prompts contactors to break electrical connections when a set temperature is reached.

• Thermal Protection
• 3 Poles
• 1NO/1NC
• Phase Loss Sensitivity
• Frame Size A

Product Highlights

Thermal overload relay with adjustable AMP range from 0.6-1 AMP. It has an automatic or manual reset, push-to-test button and screw terminals for easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOM001AC1
• Country of Origin: Germany

Technical Specifications

• Product Name: Eaton XT IEC control relay
• Catalog Number: XTOM001AC1
• EAN: 4015080143765
• Product Length/Depth: 1.85 in
• Product Height: 2.36 in
• Product Width: 2.56 in
• Compliances: ATEX Compliant CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Product Type: Control relay
• Type: Control relay
• Brand: Eaton
• Model: XTOM001AC1
• MPN: XTOM001AC1
• Condition: New
• Country of Origin: Germany
• Category: Relays
• Part Status: Active
• Manufacturer: Eaton Electrical
• Accessory Type: Overload Relay
• Series: XT
• For Use With/Related Products: XT Series
• Packaging: Box
• Compatible Contactor Series: XT Mini
• Compatible Contactors: Contactors
• Frame Size: A
• Relay Style: IEC
• Overload Protection Type: Thermal
• Relay Mounting Style: Direct To Contactor
• Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements)
• Number of Poles: 3
• Phase: Three
• Auxiliary Contacts Included: 1NO/1NC
• Maximum Overload Relay Current Setting: 1 A
• Minimum Overload Relay Current Setting: 0.6 A
• Trip Class: 10
• Phase Loss Sensitivity: Yes
• Reset Type: Auto; Manual
• IP Rating: IP20
• Body Depth: 1.85 in
• Body Height: 2.03 in
• Body Width: 1.77 in
• Standards: ATEX Compliant; CE; CSA; EN 60947; IEC 60947; RoHS; UL Listed
• UNSPSC: 39121520
• AMP Range: 0.6 to 1 AMP
• Reset: Manual or Automatic
• Auxiliary contacts: 1 N.O. / 1 N.C.
• Terminals: Screw
• Mounts to: XTMC9A10 or XTMC9A01
