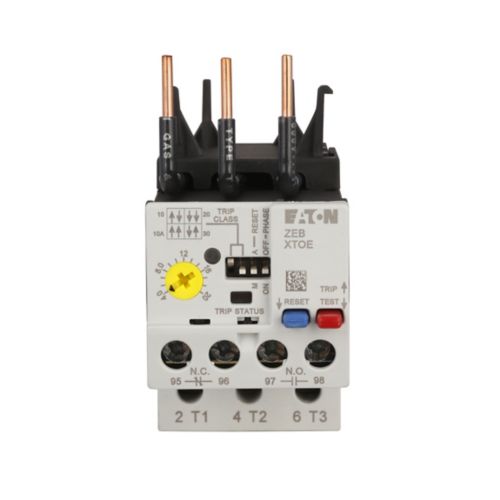

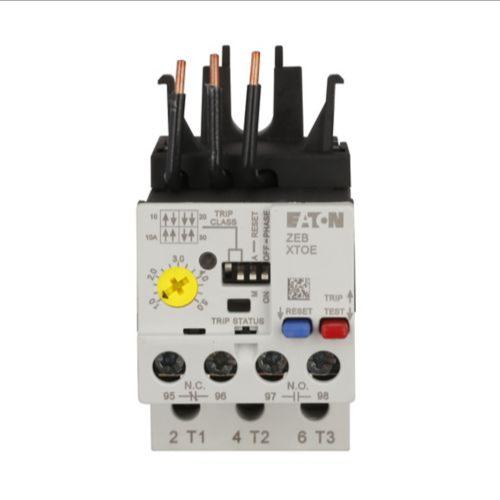

Eaton XTOE1P6CCS Overload Relay 0.33-1.65A

Product Description

The EATON XTOE1P6CCS is an electronic overload relay, XT IEC, with an overload range of 0.33-1.65A and a 45 mm frame size. It features a NO-NC contact configuration and direct to contactor mounting with selectable trip type 10A, 10, 20, and 30. It is designed for overload protection in a variety of industrial applications.

• Overload range of 0.33-1.65A
• Direct to contactor mounting
• Selectable trip type 10 A, class 10 ,20, 30

Product Highlights

The EATON XTOE1P6CCS overload relay provides reliable and precise overload protection for motor circuits.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOE1P6CCS
• Country of Origin: DO

Technical Specifications

• Product Name: Eaton C440 electronic overload relay
• Catalog Number: XTOE1P6CCS
• UPC: 786685416458
• Product Length/Depth: 1.77 in
• Product Height: 4.33 in
• Product Width: 1.42"
• Product Weight: 0.87 lb
• Compliances: RoHS Compliant ATEX Compliant CE Marked
• Certifications: CSA Certified IEC 60947 EN 60947 UL Listed
• Product Type: Electronic overload relay
• Overload range: 0.33-1.65A
• Type: Electronic Overload Relay
• Frame size: 45 mm
• Mounting method: Direct
• Contact configuration: NO, NC
• Trip type: Selectable 10 A, class 10 ,20, 30
• Category: Relays
• Part Status: Active
• Manufacturer: Eaton Electrical
• Accessory Type: Overload Relay
• Series: XT
• For Use With/Related Products: XT Series
• Packaging: Box
• Model: XTOE1P6CCS
• MPN: XTOE1P6CCS
• Features: Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 1.65 A, Minimum Overload Relay Current Setting 0.33 A, Trip Class 10/20/30, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Compatible with Series XT Mini Contactors, Frame Size C, Relay Style IEC, Overload Protection Type Electronic, Phase Three
• Country of Origin: Dominican Republic - Subject to change
• Item Height: 5.500
• Item Length: 4.800
• Item Width: 3.500
• California Prop 65 Warning: N
• Length: 4.800
• Width: 3.500
• Depth: 3.500
• Auxiliary Contacts Included: 1NO/1NC
• Body Depth: 2 1/5"
• Body Height: 3 1/2"
• Body Width: 1.8"
• Compatible Contactor Series: XT MINI CONTACTORS Series
• Compatible Contactors: Frame Size C
• Optional Features: Optional Communications Available, Solid State Overload Relay, Wide Adjustment Range
• IP Rating: IP20
• Maximum Overload Relay Current Setting: 1.65A
• Minimum Overload Relay Current Setting: 0.33A
• Number Of Poles: 3
• Overall Height: 4 8/25" , 4.33"
• Overload Protection Type: Electronic
• Phase: 3
• Phase Loss Sensitivity: Yes
• Relay Mounting Style: Direct To Contactor
• Relay Style: IEC
• Reset Type: Auto, Manual
• Sensing Method: Electronic
• Separate Mounting: No
• Thermal Units Required: Not Applicable To Electronic Type Overload Relays
• Trip Class: Class 10, Class 20, Class 30
• standard: ATEX COMPLIANT, CE, CSA, EN 60947, IEC 60947, ROHS, UL LISTED
• Mounting: Direct
• IEC Size: Frame Size 45mm
• Reset: Manual/Automatic
• Ambient Temperature: -13 to +149°F
• Poles: 3P
• Motor FLA: 0.33 to 1.65 A
• Auxiliary Contacts: 1NO 1NC
