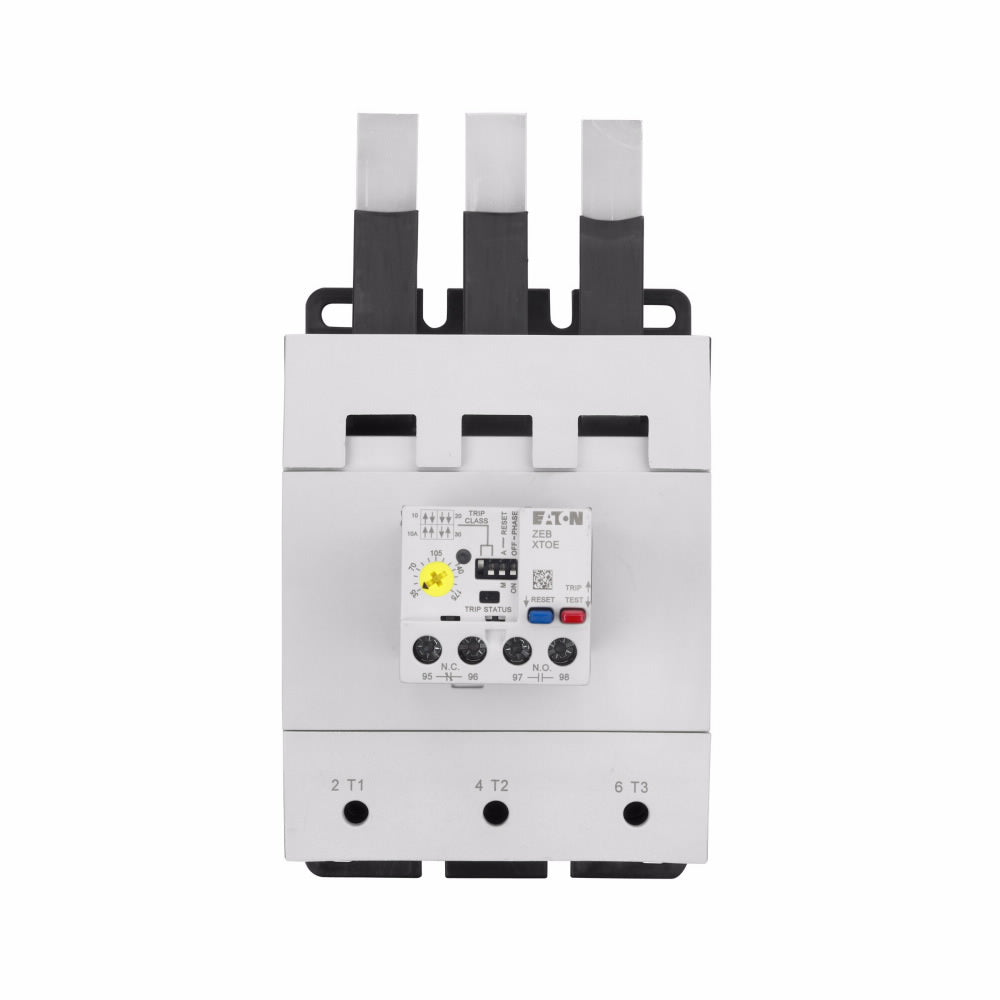

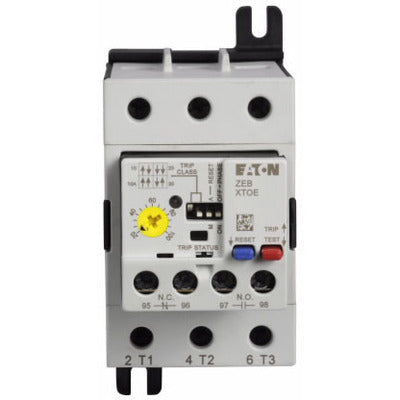

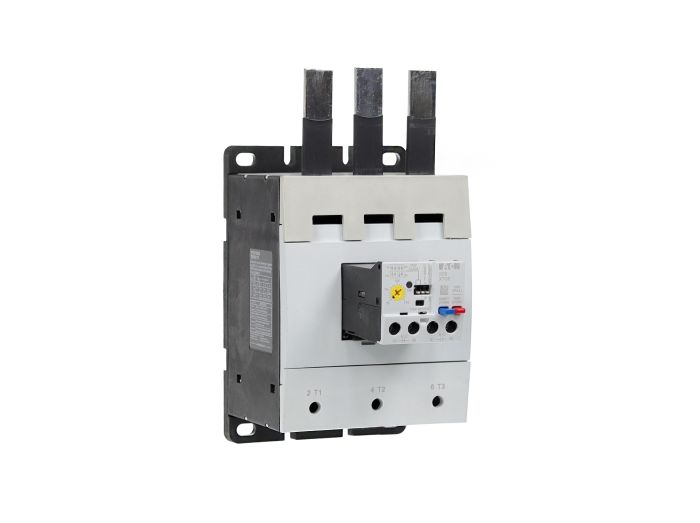

Eaton XTOE175GCS electronic overload relay 35 to 175 A

Product Description

The EATON XTOE175GCS is an electronic overload relay from the XTOE series, designed for reliable and accurate motor protection. It supports a current range of 35 to 175 A and operates at 50/60 Hz. Features include a 1NC-1NO contact form, 5 A at 690 VAC contact rating, and screw terminals. It is suitable for surface mounting and has an LED display.

• Reliable, accurate, electronic motor protection
• Easy to select, install and maintain
• Flexible, intelligent design

Product Highlights

Compact electronic overload relay with flexible and intelligent design for motor protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOE175GCS

Technical Specifications

• Amperage Rating: 35 to 175 A
• Contact Form: 1NC-1NO
• Contact Rating: 5 A at 690 VAC
• Enclosure: NEMA 4/IP20
• Frequency Rating: 50/60 Hz
• Manufacturer Part Number: XTOE175GCS
• Mounting Type: Surface
• Series: XTOE
• Standards/Approvals: RoHS Compliant|CSA Certified|EN 60947|IEC 60947|UL Listed|ATEX Certified|CE Marked
• Temperature Rating: -13 to 149 deg F
• Terminal Type: Screw
• Product Length/Depth: 9 in
• Product Height: 10 in
• Product Width: 13 in
• Certifications: UL Listed CSA Certified EN 60947 IEC 60947
• Product Type: Electronic overload relay
• Overload range: 35-175A
• Frame size: 105 mm
• Mounting method: Direct
• Contact configuration: NO, NC
• Trip type: Selectable 10 A, class 10 ,20, 30
• Main function: Electronic Overload Relay (EOR)
• Sub-range name: XTOE
• Functions: Electronic programmable Overload Protection Relay (EOR)
• Rated current: 35A - 175A (Overload Release)
• Trip unit type: Electronic
• Protection settings: (Thermal Overload) 35A - 175A
• Degree of protection: IP20
• Net Width (mm): (Contactor Frame) 110 mm
• Minimum current: 35 A
• Maximum current: 175 A
• Manufacturer product status: Commercialized
• Rated Voltage (AC) - Phase-to-phase: 690 V
• UPC code: 78668553334
• Compliant with standard(s): NEMA ICS1
• Mounting mode: Direct
• Protection functions: Thermal overload Class 10A
• Poles: 3
• Type: IEC, Overload Relay, Electronic
• Amps: 175
• Amps Range: 35 - 175
• Manufacturer: Eaton
• Family Series: Eaton Overload Relays
• Current Rating: 35-175 A
• Trip Class: Class 10, Class 20
• Approvals: CSA, UL
• Application: 3-Phase
• Display Type: LED
• Auxiliary Contact: 1NO/1NC
• Enclosure Type: NEMA 4/IP20
• Frequency: 50/60
• Mounting: Contactor
• Ambient Temperature: Compensated
• IEC Size: G
• Motor FLA: 35 to 175 Amp
• NEMA Size: 4
