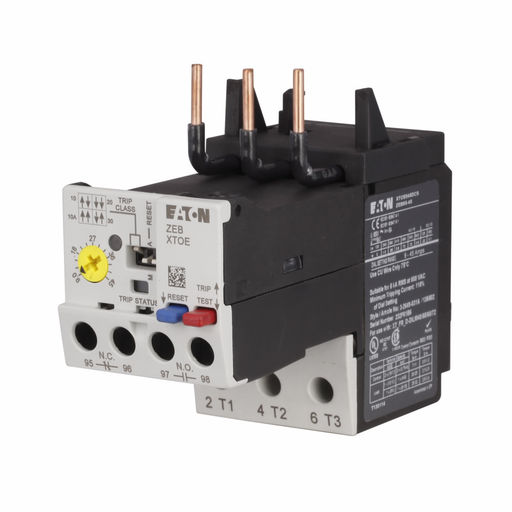

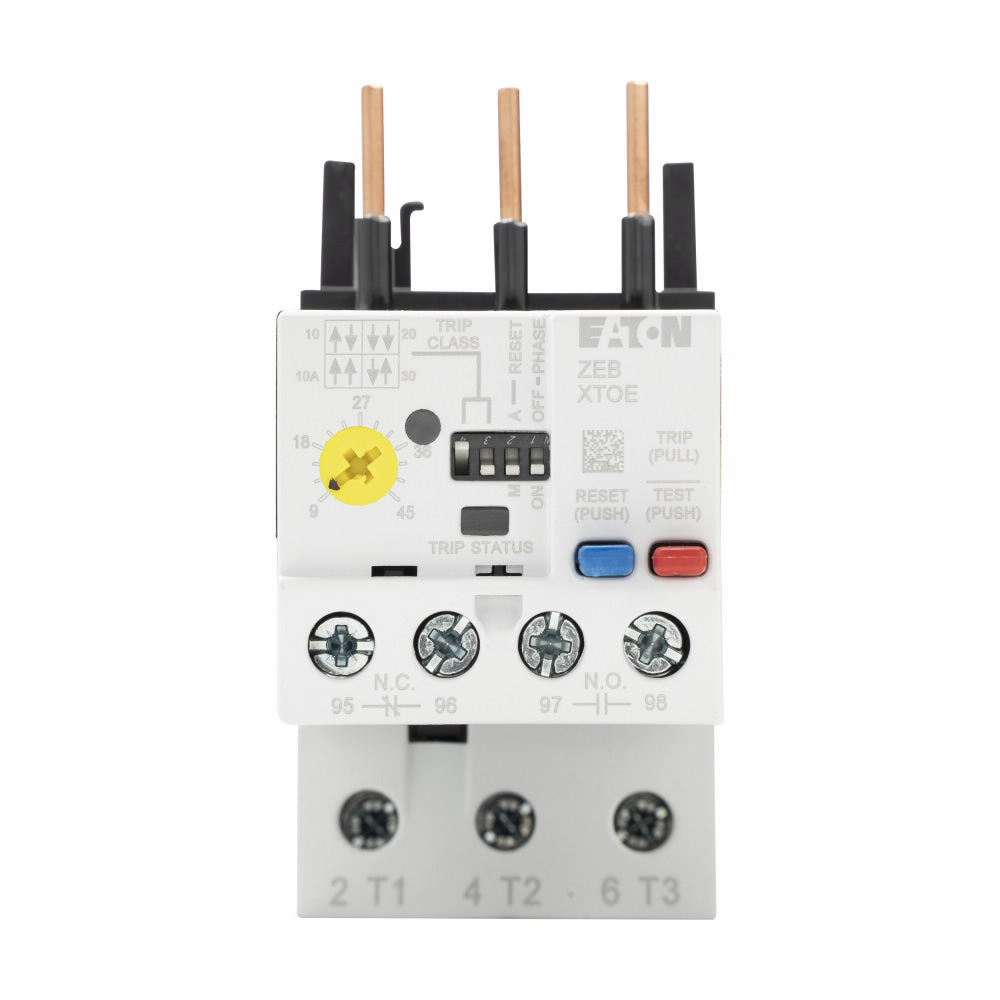

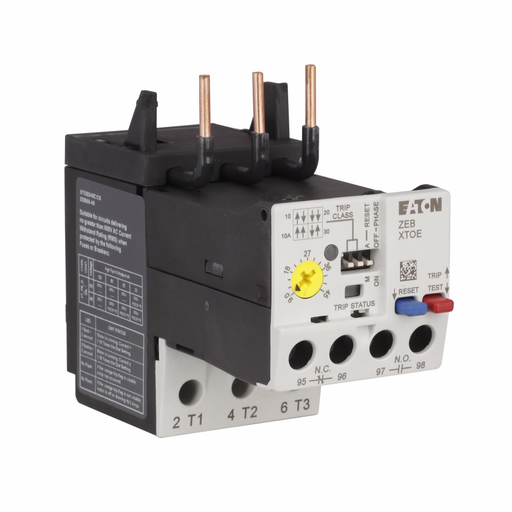

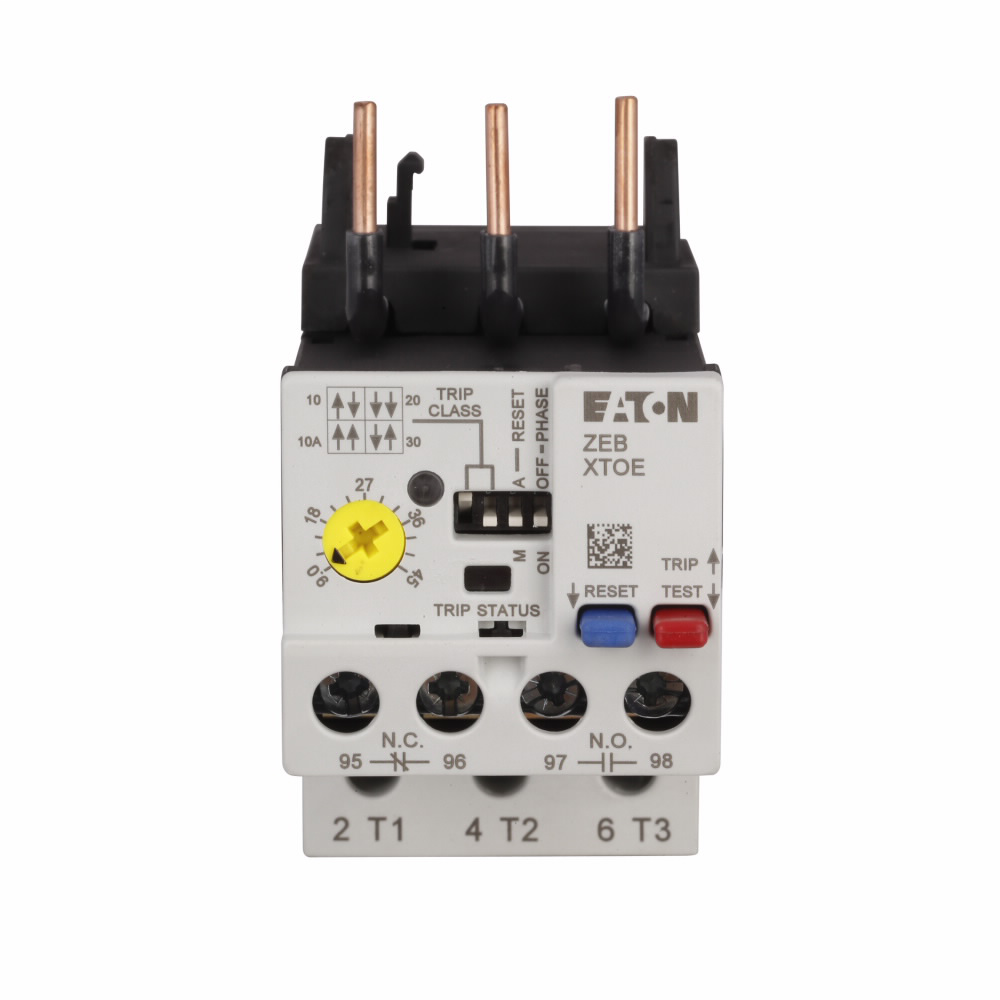

Eaton XTOE100DCS Relay Ovld Elek 20/100A 1NO-1NC

Product Description

The Eaton XTOE100DCS is an electronic overload relay designed to provide motor protection and communication capabilities. This relay is suitable for both commercial and institutional applications. It features a 20 to 100 Amp overload range and operates at 600 VAC with a twelve VDC coil. The relay offers a one normally open and one normally closed contact configuration and is designed for surface mounting.

• 55 mm frame size
• Selectable trip types include 10A, 20A, and 30A
• Three-pole configuration with LED display for easy monitoring

Product Highlights

The Eaton XTOE100DCS provides effective motor protection by monitoring the motor current in each phase directly. It utilizes precision solid-state components for thermal modeling, ensuring reliability and efficiency.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: XTOE100DCS

Technical Specifications

• Amperage Rating: 20/100 A
• Coil Voltage: 600 VAC / 12 VDC
• Contact Configuration: 1NO-1NC
• Frequency Rating: 50/60 Hz
• Mounting Type: Surface
• Number of Poles: 3
• Contact Rating: 5 A at 690 VAC
• Display Type: LED
