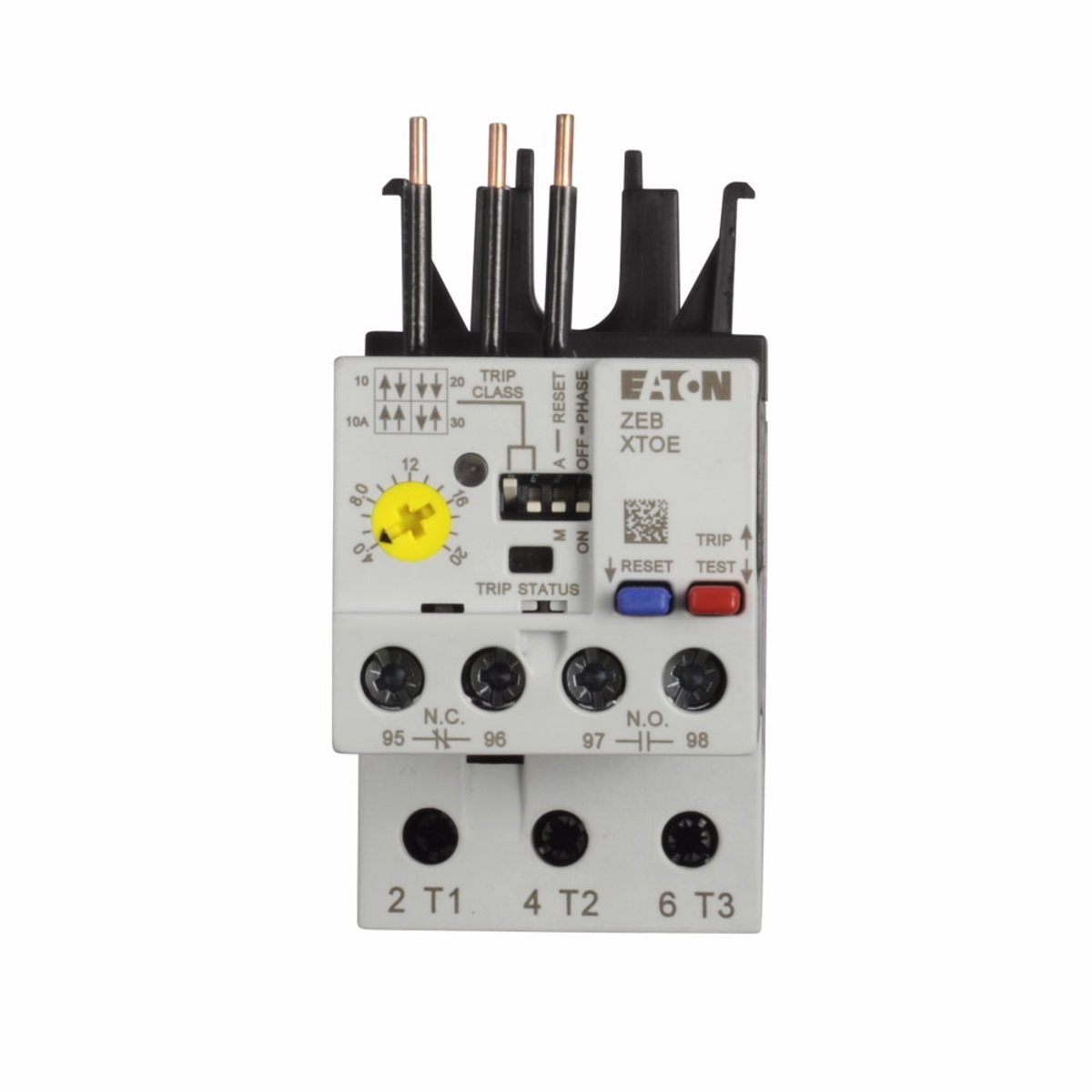

Eaton XTOE020BCS Relay OVLD ELEK 4/20A 1NO-1NC

Product Description

The Eaton XTOE020BCS is an electronic overload relay designed for efficient motor protection. This model features a current rating of four to twenty amps and is equipped with one normally open and one normally closed contact. It supports a coil voltage of six hundred volts alternating current and twelve volts direct current.

• Amperage rating: 4/20 A
• Contact form: 1NO-1NC
• Mounting type: Surface

Product Highlights

Efficiently monitors motor current in each phase, enhancing motor protection and ensuring reliable operation.

Product Information

Standard Information

• Catalog Number: XTOE020BCS
• Manufacturer: Eaton

Technical Specifications

• Frequency rating: 50/60 Hz
• Contact rating: 5 A at 690 VAC
• Number of poles: 3
• Frame size: 45 mm
• Standards/Approvals: ATEX Approved, CSA Certified, IEC 60947, UL Listed
• Application: Ideal for commercial and institutional buildings
