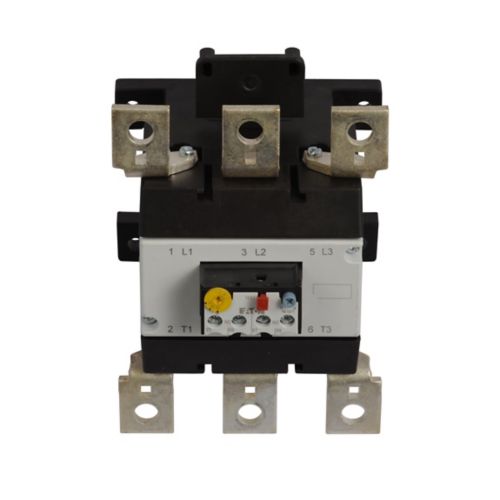

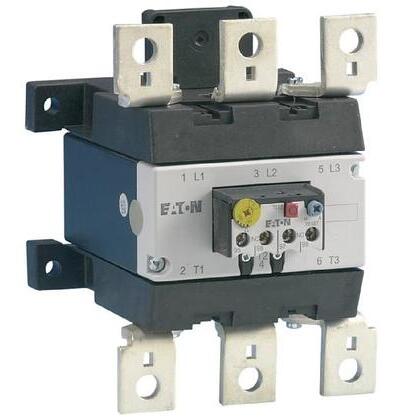

Eaton XTOB160LC1 xt iec bimetallic overload relay 120-160A

Product Description

The Eaton XTOB160LC1 is an XT IEC bimetallic overload relay with an overload range of 120-160A and a 140 mm frame size. It features a 1NO-1NC contact configuration and is used with 185-250A. The XT line provides an efficient motor protection solution and can be directly mounted to the contactor or separately.

• Provides an efficient motor protection solution, available up to 630 A
• Can be directly mounted to the contactor or mounted separately
• Large thermal overcurrent range

Product Highlights

The Eaton XT series overload relays save space and engineering design time. Features a test button and NO-NC auxiliary as standard.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOB160LC1

Technical Specifications

• Catalog Number: XTOB160LC1
• EAN: 4015082100735
• Product Length/Depth: 5.67 in
• Product Height: 6.65 in
• Product Width: 5.04 in
• Compliances: CE Marked, RoHS Compliant, ATEX Compliant
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Product Type: Bimetallic overload relay
• Overload range: 120-160 A
• Frame size: 140 mm
• UNSPSC: 39122330
• Mounting Type: Surface
• Terminal Type: Screw
• Contact Rating: 6 A at 240 VAC
• Enclosure Type: IP00
• Temperature Rating: -13 to 131
• Type: Bi-Metallic
• Series: XTOB
• Amperage Rating: 120 to 160
• Poles: 3
• Amps: 160
• Amps Range: 120 - 160
• UNSPSC Code: 39120000
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: XTOB160LC1
