Product Description
The Eaton XTOB100GC1 is an XT IEC bimetallic overload relay with an overload range of 70-100A and a 90 mm frame size. It features a 1NO-1NC contact configuration and direct-to-contactor mounting, designed for use with 80-170A contactors and a 10A trip type. This thermal overload relay offers Class 10 tripping and can be mounted directly to the contactor.
- 70-100A overload range
- Direct connect up to 250A
- Manual/automatic selectable reset
Product Highlights
The Eaton XTOB100GC1 overload relay provides efficient motor protection with direct mounting and Class 10 tripping.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: XTOB100GC1
-
Country of Origin: Germany
Technical Specifications
-
Product Name: Eaton XT IEC bimetallic overload relay
-
Catalog Number: XTOB100GC1
-
EAN: 4015082784645
-

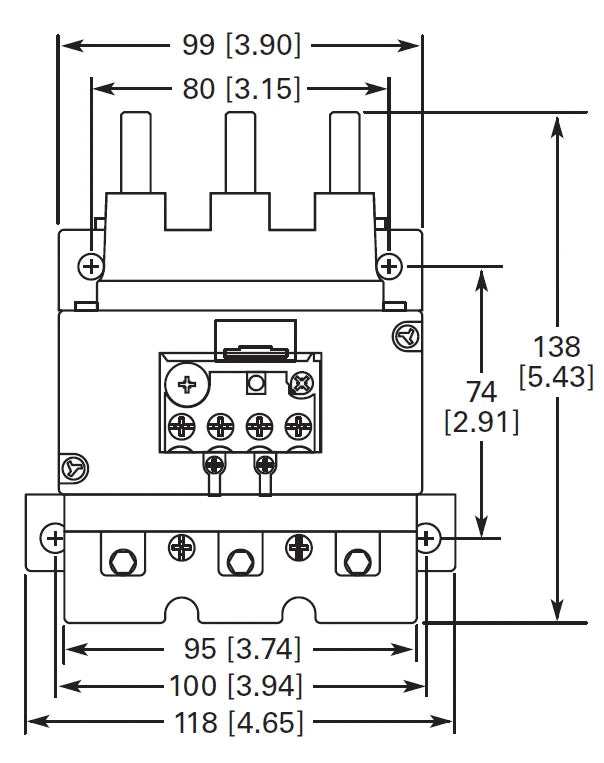

Product Length/Depth: 5.28 in
-
Product Height: 5.43 in
-
Product Width: 4.65 in
-
Compliances: CE Marked ATEX Compliant RoHS Compliant
-
Certifications: UL Listed CSA Certified IEC 60947 EN 60947
-
Product Type: Bimetallic overload relay
-
Overload range: 70-100 A
-
Frame size: 90 mm
-
Mounting: Direct
-
AMP Range: 70 to 100 AMPS
-
Connects to: XTCE080F / XTCE095F
XTCE115G / XTCE150G
-
Auxiliaries: 1 N.O. / 1 N.C.
-
Reset: Manual or Automatic
-
Trip Class: 10 (10 seconds or less)
-
Manufacturer Part Number: XTOB100GC1
-
Manufacturer: Eaton
-
Product Series: XTOB
-
Family Series: Eaton Overload Relays, XTOB Series
-
Type: NEMA, Thermal, IEC, Overload Relay
-
Current Rating: 70-100 A
-
Poles: 3
-
Output Contacts: 1NO, 1NC
-
Reset Type: Automatic, Manual
-
Connection Type: Wire
-
Ambient Temperature: -13-131 °F
-
Approvals: ATEX, CE, CSA, UL
-

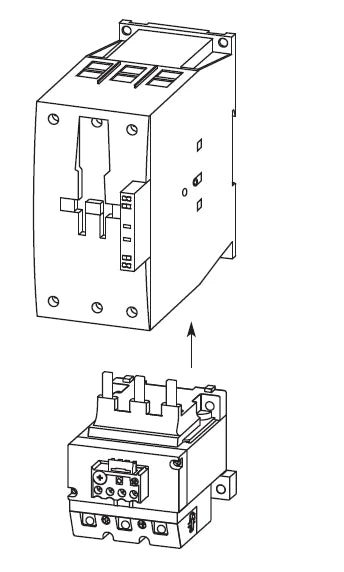

Comments: Direct Mounting to XT Series G Frame Contactor
-
Net Weight: 2.98 lbs
-
Gross Weight: 2.98 lbs
-
Amps Range: 70 - 100
-
Brand: Eaton
-
Model: XTOB100GC1
-
MPN: XTOB100GC1
-
Category: Business & Industrial
