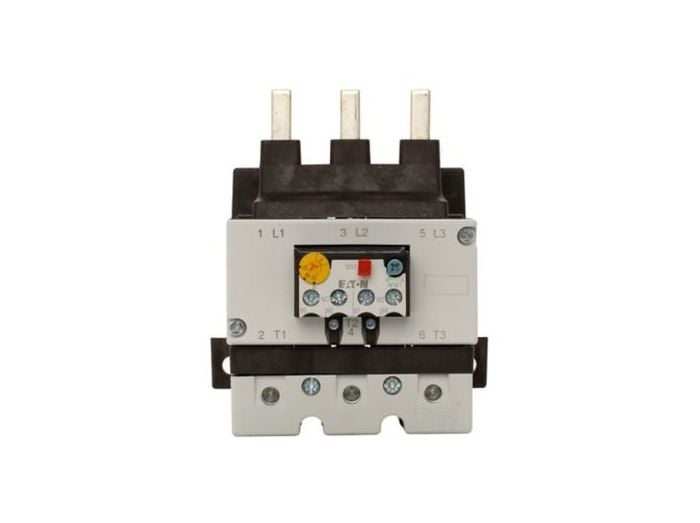

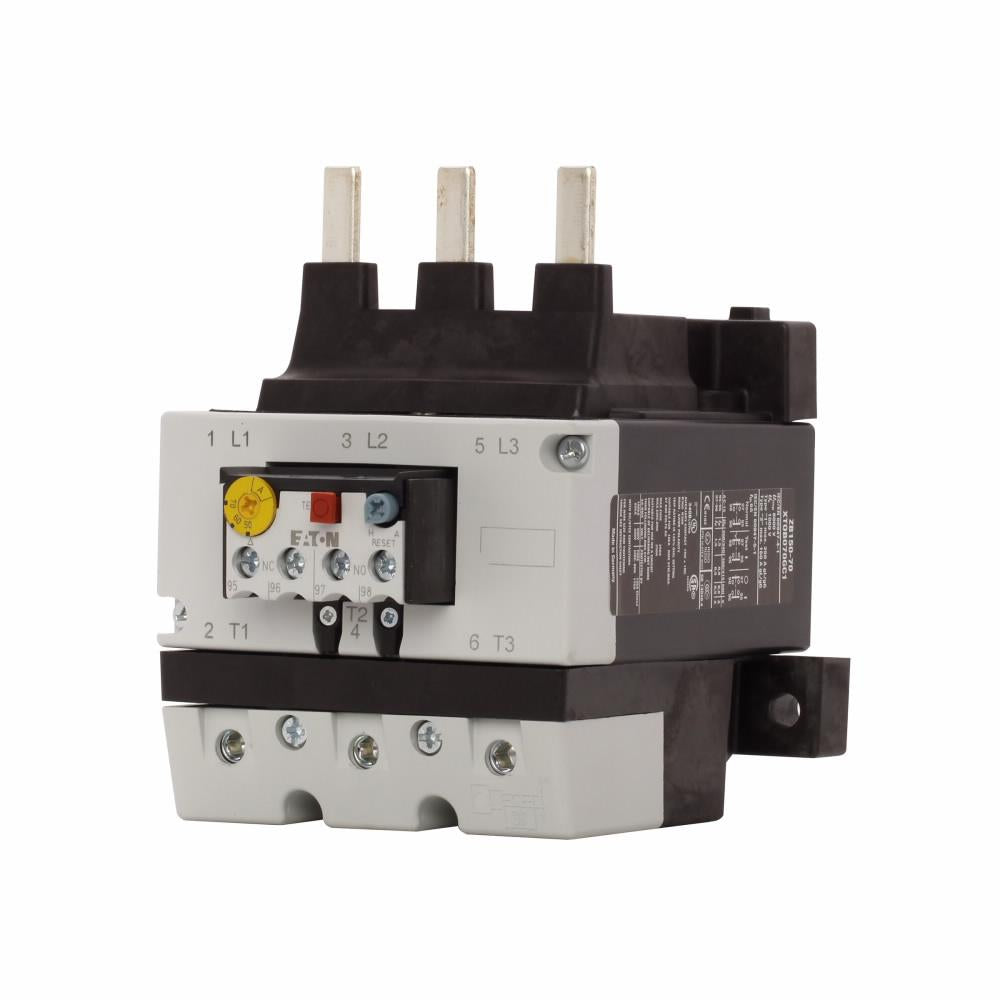

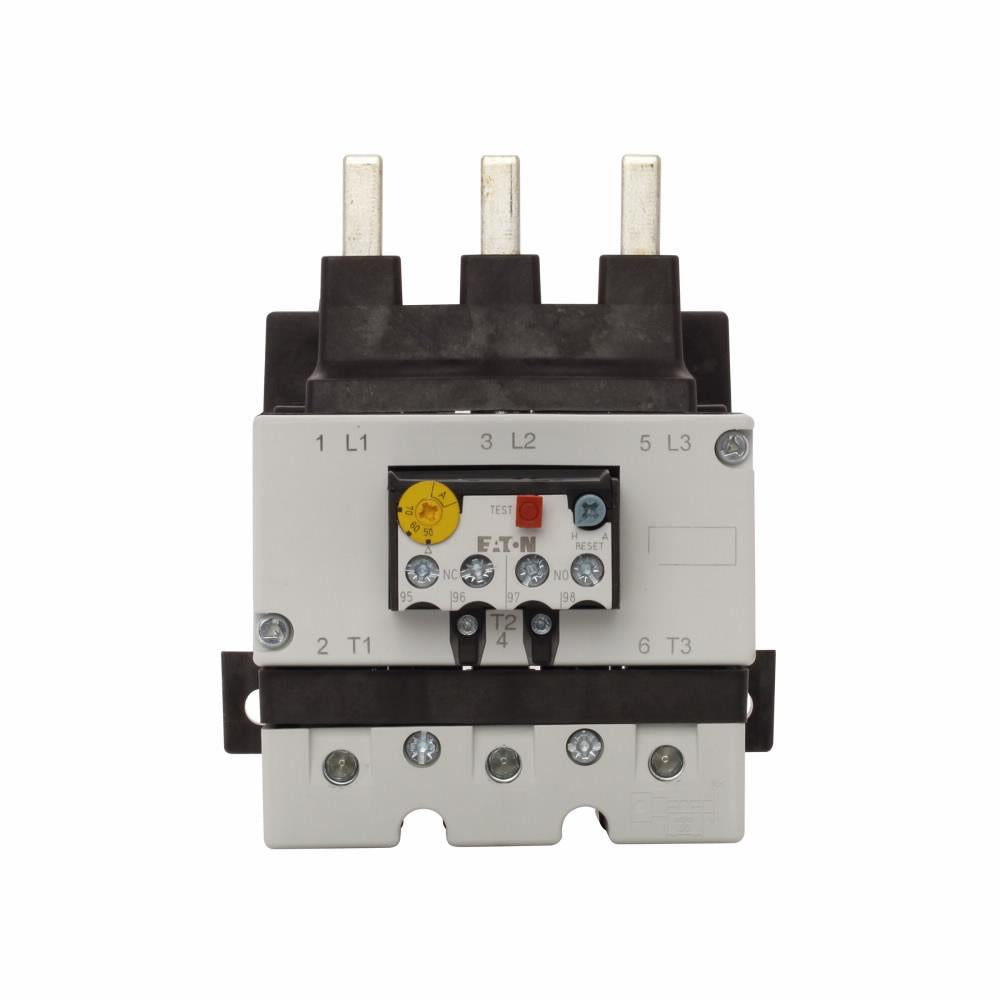

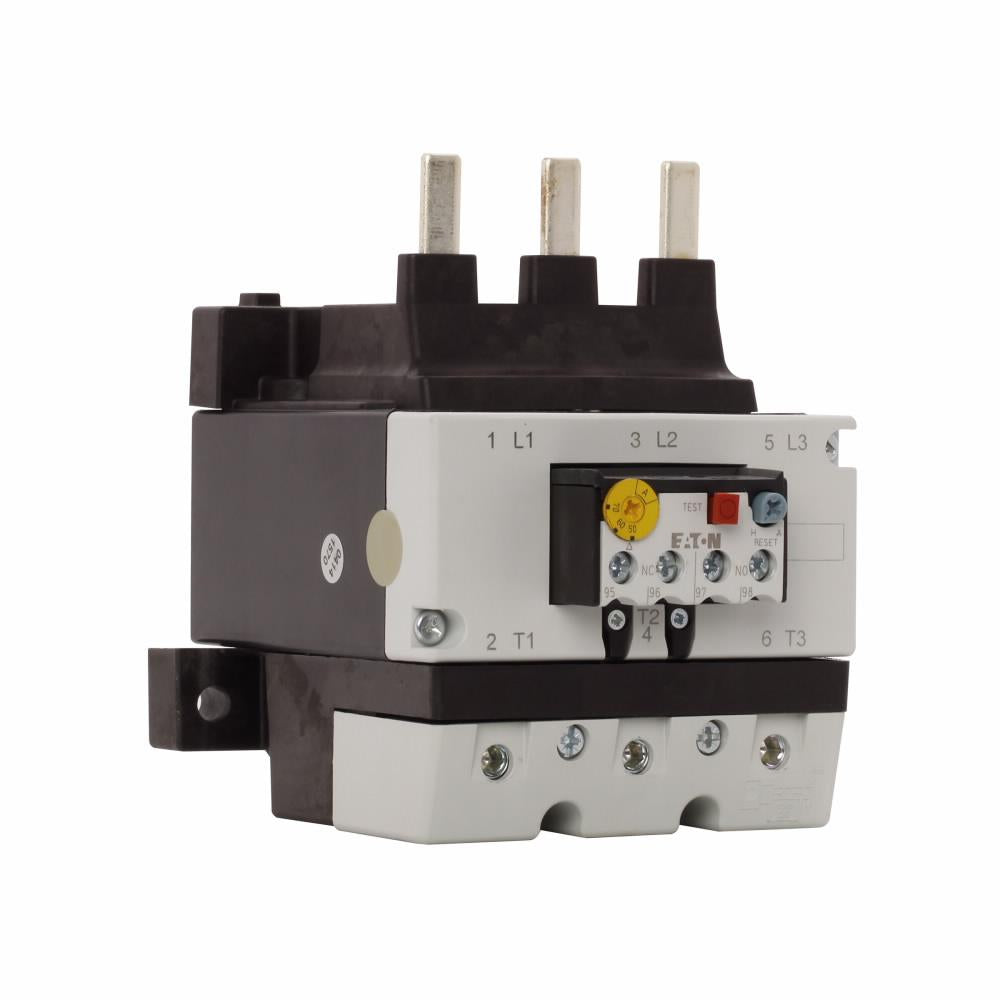

Eaton XTOB070GC1 Bi-Metallic Thermal Overload Relay 50 to 70 A

Product Description

The EATON XTOB070GC1 is a bi-metallic thermal overload relay from the XT line that brings IEC power control to a new level. Save space and engineering design time with XT IEC series overload relays. It is suitable for stationary machinery, equipment, pumps, and compressors applications.

• Provides an efficient motor protection solution, available up to 630 A
• Can be directly mounted to the contactor or mounted separately
• Large thermal overcurrent range

Product Highlights

This bimetallic overload relay has a 50-70A overload range, 90 mm Frame size and 1NO-1NC contact configuration. It can be directly mounted to contactor and used with 80-170A contactor.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOB070GC1
• Country of Origin: Germany

Technical Specifications

• Contact Rating: 6 A at 240 VAC
• Enclosure Type: IP20
• Mounting Type: Surface
• Number of Poles: 3
• Series: XTOB
• Temperature Rating: -13 to 131 deg F
• Terminal Type: Screw
• Type: Bi-Metallic Thermal
• Amperage Rating: 50 to 70 A
• Contact Form: 1NO-1NC
• Product Name: Eaton XT IEC bimetallic overload relay
• Catalog Number: XTOB070GC1
• Product Length/Depth: 5.28 in
• Product Height: 5.43 in
• Product Width: 4.65 in
• Compliances: CE Marked ATEX Compliant RoHS Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Product Type: Bimetallic overload relay
• Used with: 80-170A contactor
• Overload range: 50-70 A
• Frame size: 90 mm
• Contact configuration: 1 NO, 1 NC
• Mounting: Direct
• Trip type: 10 A
• Category: Relays
• Part Status: Active
• Manufacturer: Eaton Electrical
• Accessory Type: Overload Relay
• For Use With/Related Products: C440 Series
• Brand: Eaton
• Model: XTOB070GC1
• MPN: XTOB070GC1
• Country of Origin: Germany
• Materials sourced from: Germany
• UNSPSC: 39122330
• Approval: UL, CSA, CE
• Application: Stationary Machinery, Equipment, Pumps and Compressors Applications
• Auxiliary Contact: 1NO/1NC
• Ambient Temperature: Compensated
• IEC Size: F, G
• Motor FLA: 50 to 70 Amp
• NEMA Size: 3
• Product Series: XTOB
• Family Series: Eaton Overload Relays, XTOB Series
• Description: Eaton XT IEC bimetallic overload relay, 50-70A overload range, 90 mm Frame size, 1NO-1NC contact configuration, Direct to contactor mounting, used with 80-170A contactor, 10A trip type
• Current Rating: 50-70 A
• Poles: 3
• Output Contacts: 1NO, 1NC
• Trip Class: Class 10
• Reset Type: Automatic, Manual
• Connection Type: Wire
• Comments: Direct Mounting to XT Series G Frame Contactor
