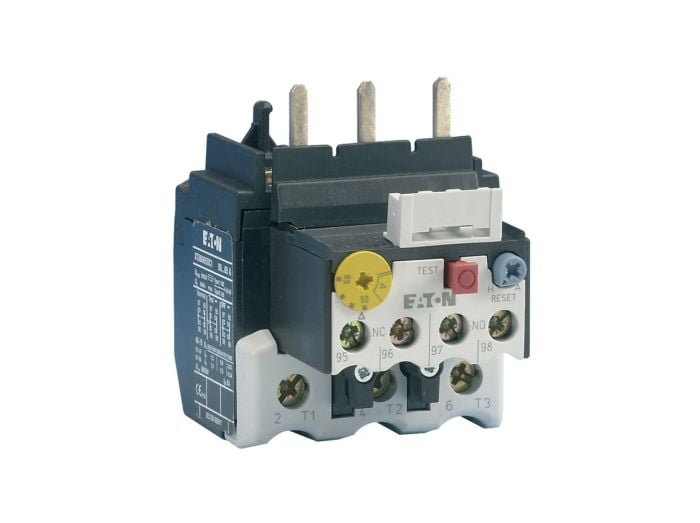

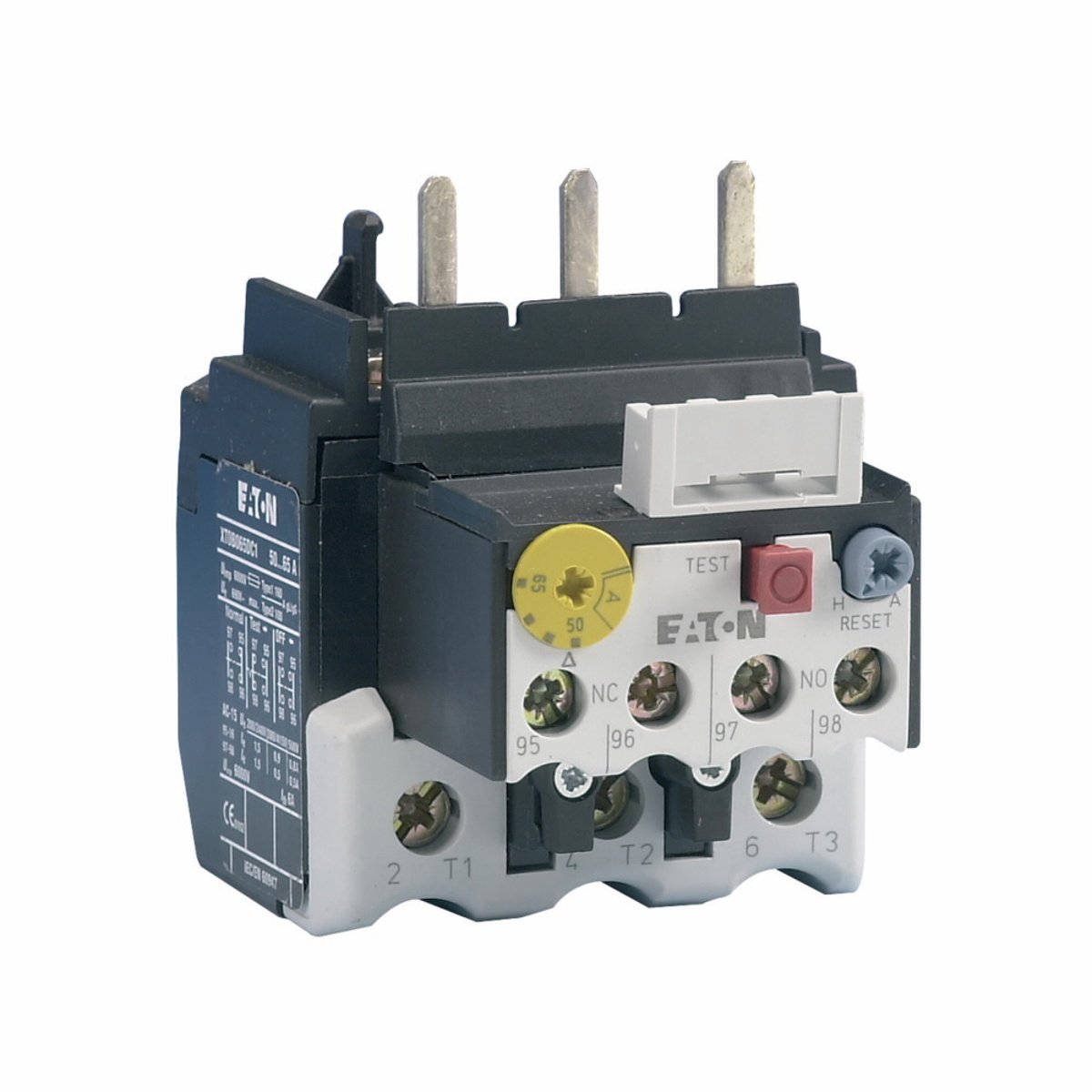

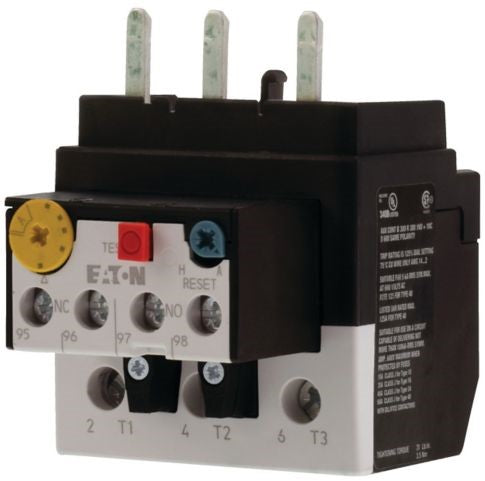

Eaton XTOB065DC1 xt iec bimetallic overload relay 50-65A

Product Description

The Eaton XTOB065DC1 is an IEC bimetallic overload relay with a 50-65A overload range and a 55 mm frame size. It features a 1NO-1NC contact configuration and direct mounting. This overload relay is designed for use with 65-72A contactors and has a 10A trip type.

• Direct mounting for easy installation
• Bimetallic design ensures reliable performance
• Suitable for use with 65-72A contactors

Product Highlights

The Eaton XTOB065DC1 overload relay provides efficient motor protection with direct mounting and a bimetallic design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOB065DC1
• Country of Origin: Germany

Technical Specifications

• Catalog Number: XTOB065DC1
• Manufacturer: Eaton
• Brand: Eaton - Cutler Hammer
• Country of Origin: Germany
• Made in USA: No
• Application: Stationary Machinery and Equipment Outside Factory - Pumps and Compressors
• Contact Configuration: 1 NO, 1 NC
• Mounting: Direct
• Standard: UL Listed,EN 60947,CSA Certified,IEC 60947,ATEX Compliant,RoHS Compliant,CE Marked
• GTIN: 04015082784607
• Item Type: Bimetallic overload relay
• Trip Type: 10 A
• Amps: 65
• Poles: 3
• Type: Bimetallic
• Amps Range: 50 - 65
• EAN: 4015082784607
• Product Length/Depth: 2.36 in
• Product Height: 3.58 in
• Product Width: 3.27 in
• Product Weight: 0.6 lb
• Compliances: RoHS Compliant, ATEX Compliant, CE Marked
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Product Type: Bimetallic overload relay
• Used with: 65-72A contactor
• Overload range: 50-65 A
• Frame size: 55 mm
• For Contactor: XTCE040, XTCE050, XTCE065, XTCE072
• Setting Range Amps: 50 - 65
• Class: 10
• Product Series: XTOB
• Family Series: Eaton Overload Relays, XTOB Series
• Current Rating: 50-65 A
• Output Contacts: 1NO, 1NC
• Trip Class: Class 10
• Reset Type: Automatic, Manual
• Connection Type: Wire
• Ambient Temperature: -13-131 °F
• Approvals: ATEX, CE, CSA, UL
• Comments: Direct Mounting to XT Series D Frame Contactor
• Net Weight: 0.6 lbs
• Gross Weight: 0.6 lbs
• Model: XTOB
• Current Type: AC/DC
• Mounting Style: DIRECT
