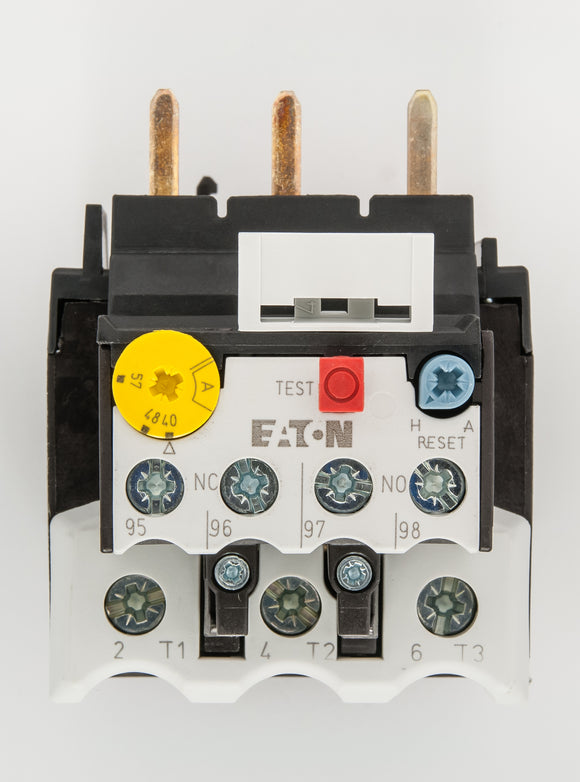

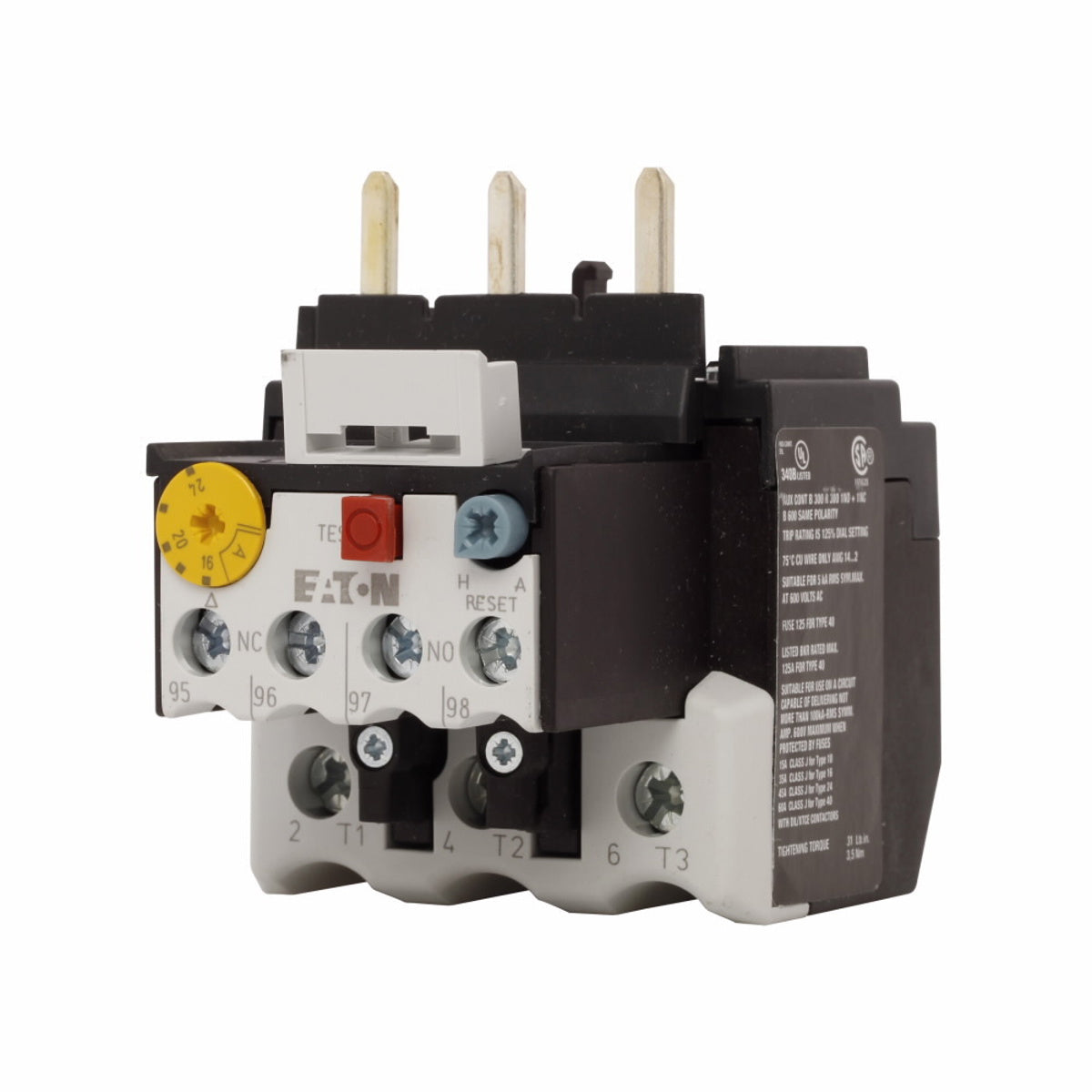

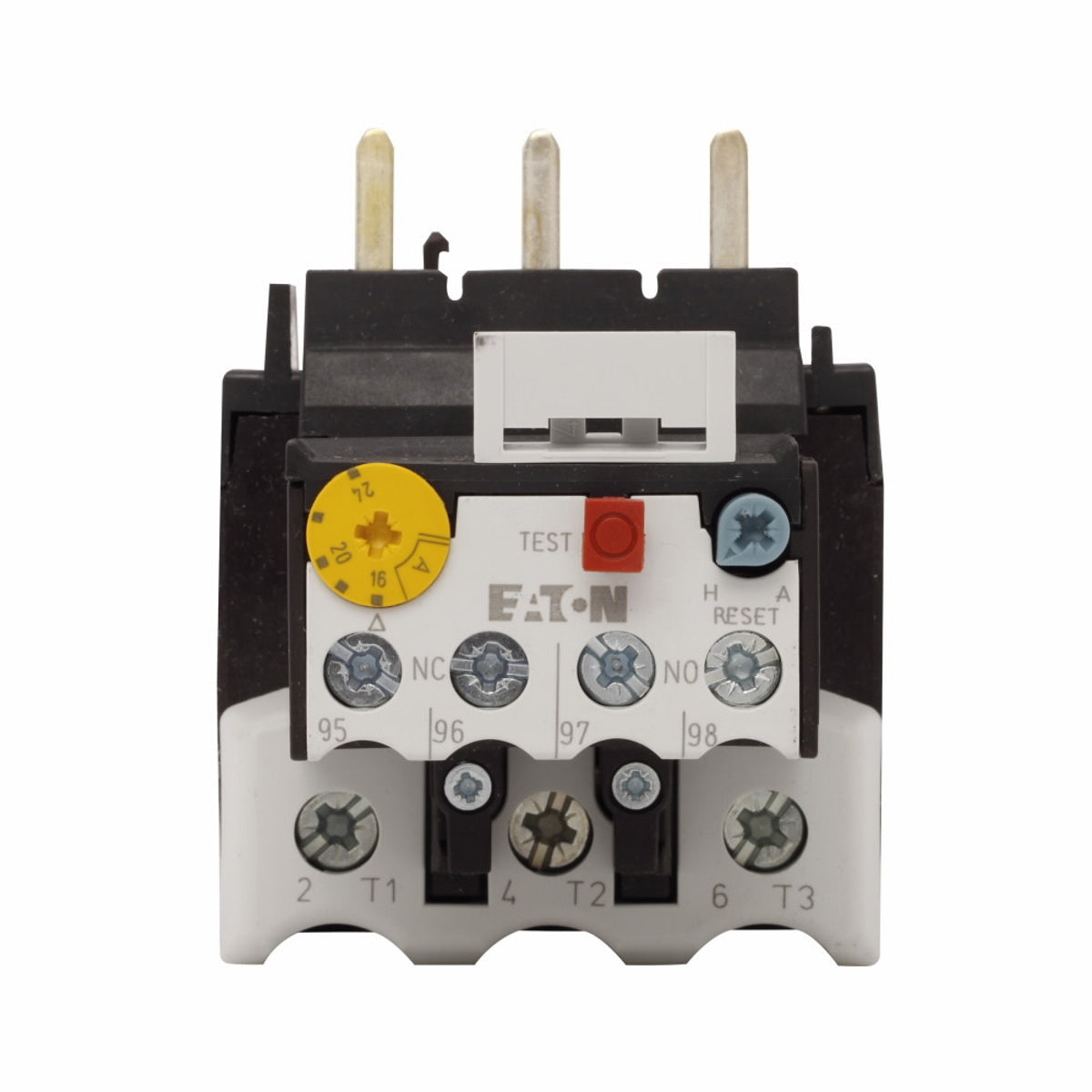

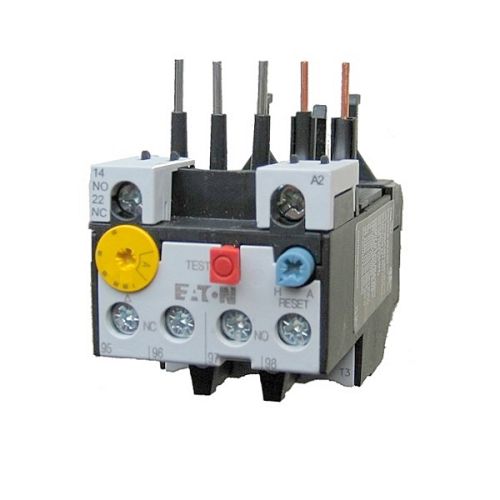

Eaton XTOB057DC1 XT IEC bimetallic overload relay 40-57A

Product Description

The Eaton XTOB057DC1 XT IEC bimetallic overload relay features a 40-57A overload range and is designed to bring IEC power control to a new level. The XT IEC series includes overload relays and accessories. It is suitable for stationary machinery and equipment outside factory environments, such as pumps and compressors.

• 1 NO, 1 NC contact configuration
• Direct mounting
• 10 A trip class

Product Highlights

This bimetallic thermal overload relay protects three-phase motors against overload, phase asymmetry, and phase failure. It has a selectable auto/manual reset after trip and a test button actuator.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOB057DC1
• Country of Origin: Germany

Technical Specifications

• Catalog Number: XTOB057DC1
• Manufacturer: Eaton
• Brand: Eaton Cutler-Hammer
• Country of Origin: Germany
• Application: Stationary Machinery and Equipment Outside Factory - Pumps and Compressors
• Contact Configuration: 1 NO, 1 NC
• Mounting: Direct
• Standard: CSA Certified,EN 60947,UL Listed,IEC 60947,ATEX Compliant,CE Marked,RoHS Compliant
• GTIN: 04015082784591
• Item Type: Bimetallic overload relay
• Mounting Type: Surface
• Number of Poles: 3
• Series: XTOB
• Temperature Rating: -13 to 131 deg F
• Type: Bi-Metallic Thermal
• Amperage Rating: 40 to 57 A
• Overload Current Min: 40A
• Overload Current Max: 57A
• Coil Voltage DC Max: 220V
• Coil Voltage AC Max: 600V
• Coil Voltage VAC Nom: 600V
• Coil Voltage VDC Nom: 220V
• Contact Rating: 690 Volt AC 6 Amp
• RoHS Compliant: Yes
• Product Name: Eaton XT IEC bimetallic overload relay
• Product Length/Depth: 4.02 in
• Product Height: 3.12 in
• Product Width: 2.36 in
• Compliances: CE Marked RoHS Compliant ATEX Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Used with: 50-72A contactor
• Overload range: 40-57 A
• Frame size: 55 mm
• Class: 10
• For Contactor: XTCE040, XTCE050, XTCE065, XTCE072
• Setting Range Amps: 40 - 57
• Catalog No.: XTOB057DC1
• Amperage: 57
• Voltage: 600
• Voltage Type: AC
• Frame Type: XTO
• Approval: UL, CSA, CE
• Auxiliary Contact: 1NO/1NC
• Enclosure: IP20
• Ambient Temperature: Compensated
• IEC Size: D
• Motor FLA: 40 to 57 Amp
• NEMA Size: 00, 0, 1, 2
• Current Type: AC/DC
• Model: XTOB057DC1/ZB65-57
