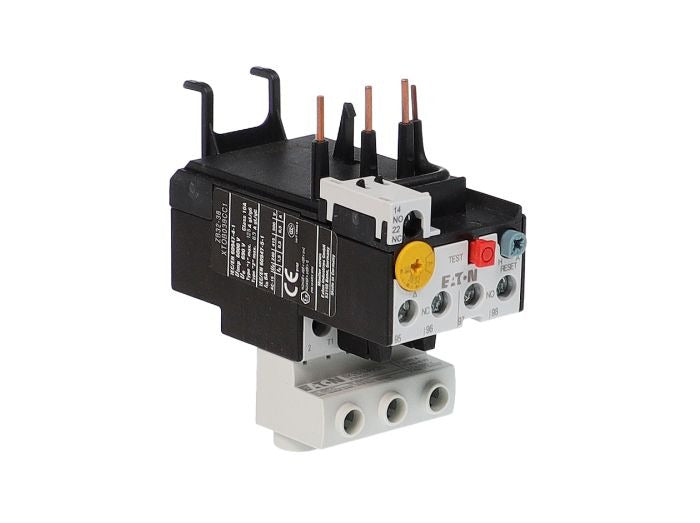

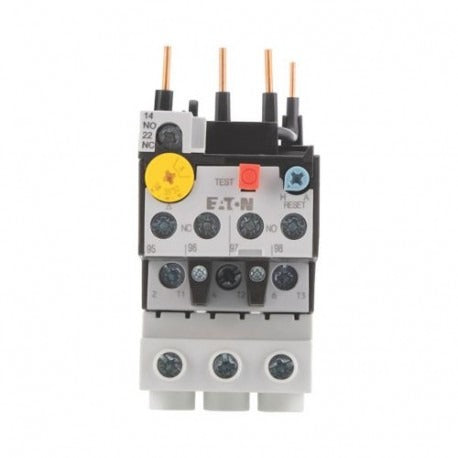

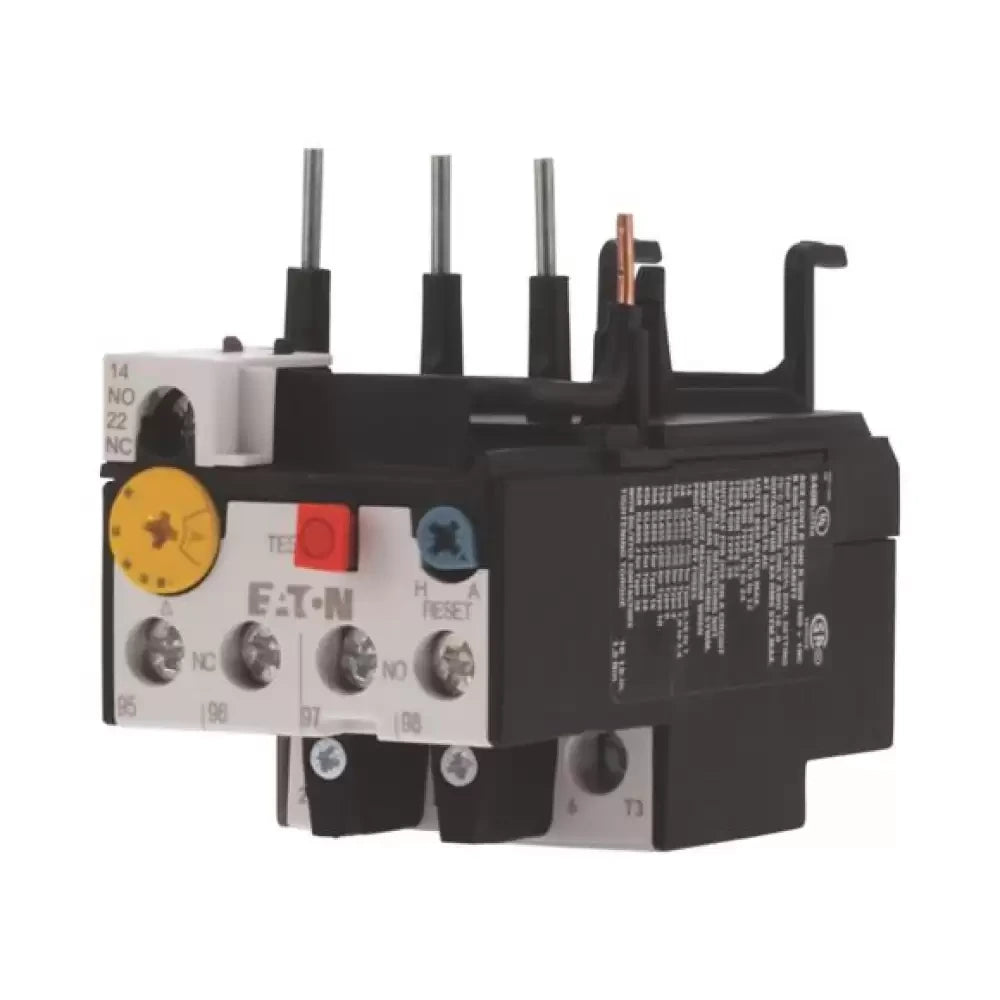

Eaton XTOB038CC1 Overload Relay 32-38 A (C Frame) ZB32-38

EATON
Brand: EATON
SKU: XTOB038CC1
Availability: In Stock

Ships same day if ordered by 12 pm
$94.00
$94.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton XTOB038CC1 is a thermal overload relay with an adjustable current range of 32-38 A designed for motor protection applications. The C-frame relay features Class 10 thermal trip characteristics and compact dimensions for direct mounting with DILM series contactors. It includes manual/automatic reset, trip-free release, phase-failure sensitivity, and a screw-connection main circuit rated up to 690 V.

  • Adjustable current range: 32–38 A with Class 10 thermal overload protection
  • One normally open and one normally closed auxiliary contact; manual/automatic reset and trip-free release
  • Direct mounting (DILM contactors), screw connection main circuit, degree of protection IP20

Product Highlights

Thermal overload relay, C-frame, 32–38 A range, Class 10, IP20, suitable for motor protection and direct mounting with DILM contactors.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: XTOB038CC1
  • Country of Origin: Germany
Technical Specifications
Brand
Eaton (Cutler Hammer division)
Manufacturer Part Number
XTOB038CC1
Model / Product Name
ZB32-38 (XTOB038CC1)
Description
Thermal overload relay, adjustable current range 32-38 A, C frame, Class 10
Adjustable Current Range
32-38 A
Frame Design / Size
C frame (ZB32)
Trip Class
Class 10
Auxiliary Contacts (Normally Open)
1
Auxiliary Contacts (Normally Closed)
1
Reset Function
Automatic / Push-button
Trip Release
Trip-free release
Phase-failure Sensitivity
Yes (per IEC/EN 60947, VDE 0660)
Rated Operational Voltage (max)
690 V
Electrical Connection Type
Screw connection
Mounting Method
Direct mounting (for DILM and related contactors)
Degree of Protection (IP)
IP20
Standards / Certifications
IEC/EN 60947, VDE 0660, UL, CSA, CE
Short-circuit Current Rating (SCCR)
150 A (max. fuse, UL/CSA); 5 kA SCCR (UL/CSA)
Climatic Proofing
Damp heat (constant/cyclic) to IEC 60068
Pollution Degree
3
Product Dimensions (H x W x D)
3.75 x 1.75 x 3.75 inches
Net Weight
0.40 lbs
Gross Weight
0.48 lbs
Series
EATON THERMAL OVERLOAD
Frame / Catalog Number
112474
Manufacturer Reference
Y7-112474
EAN (GTIN)
4015081120284
Country of Origin
Germany
