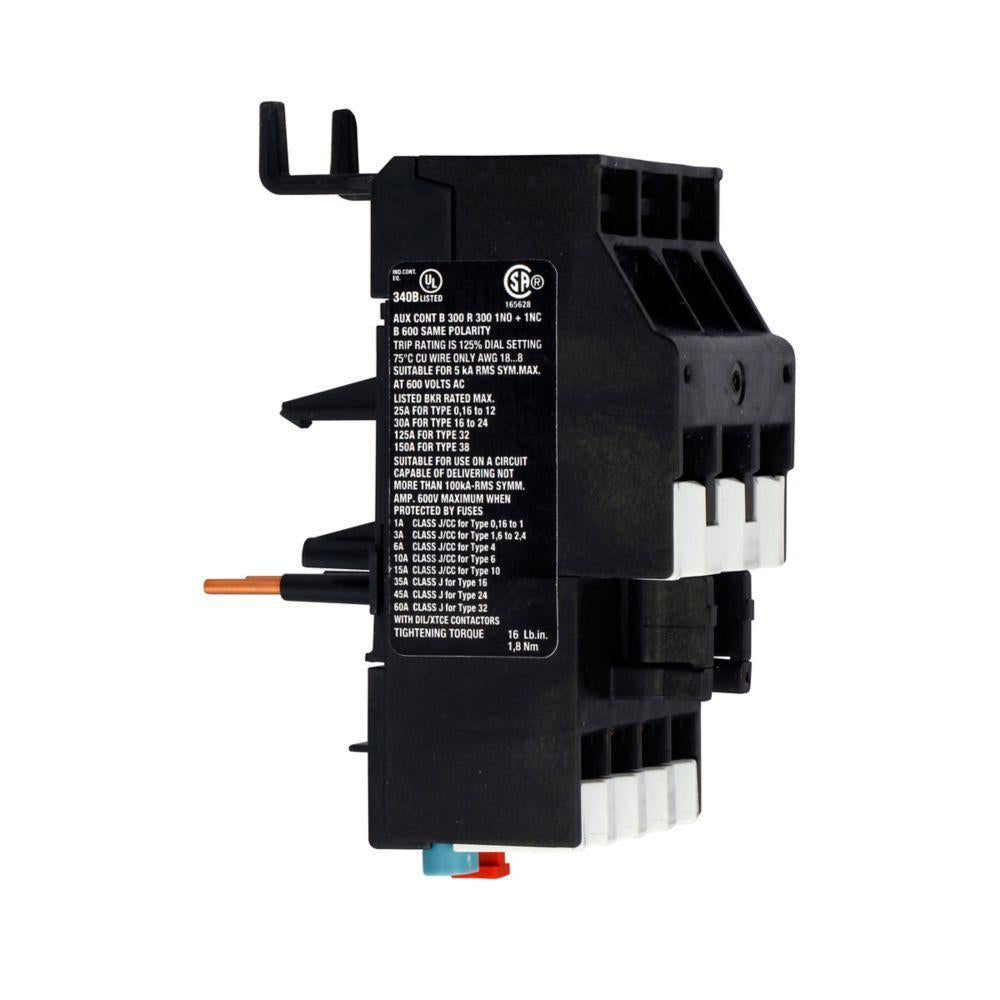

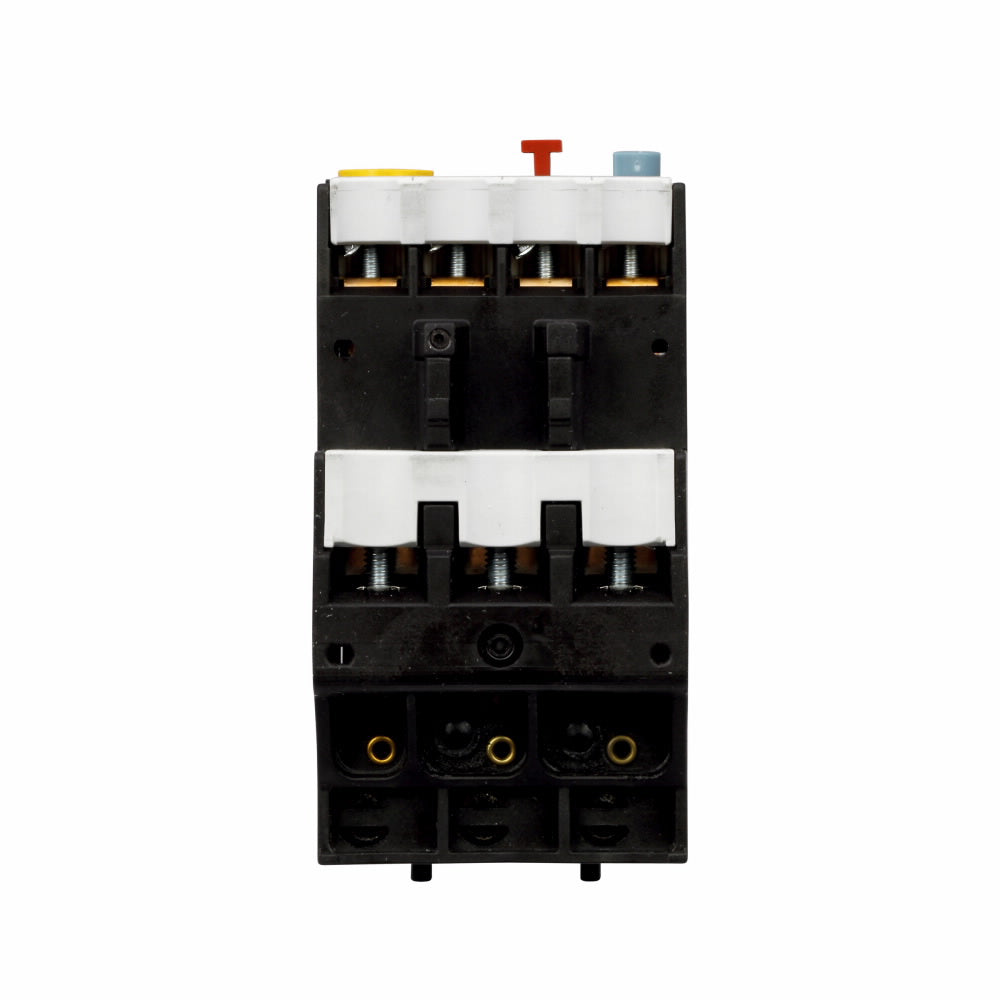

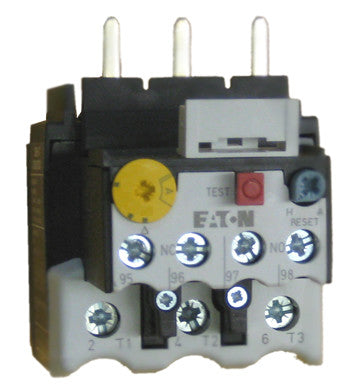

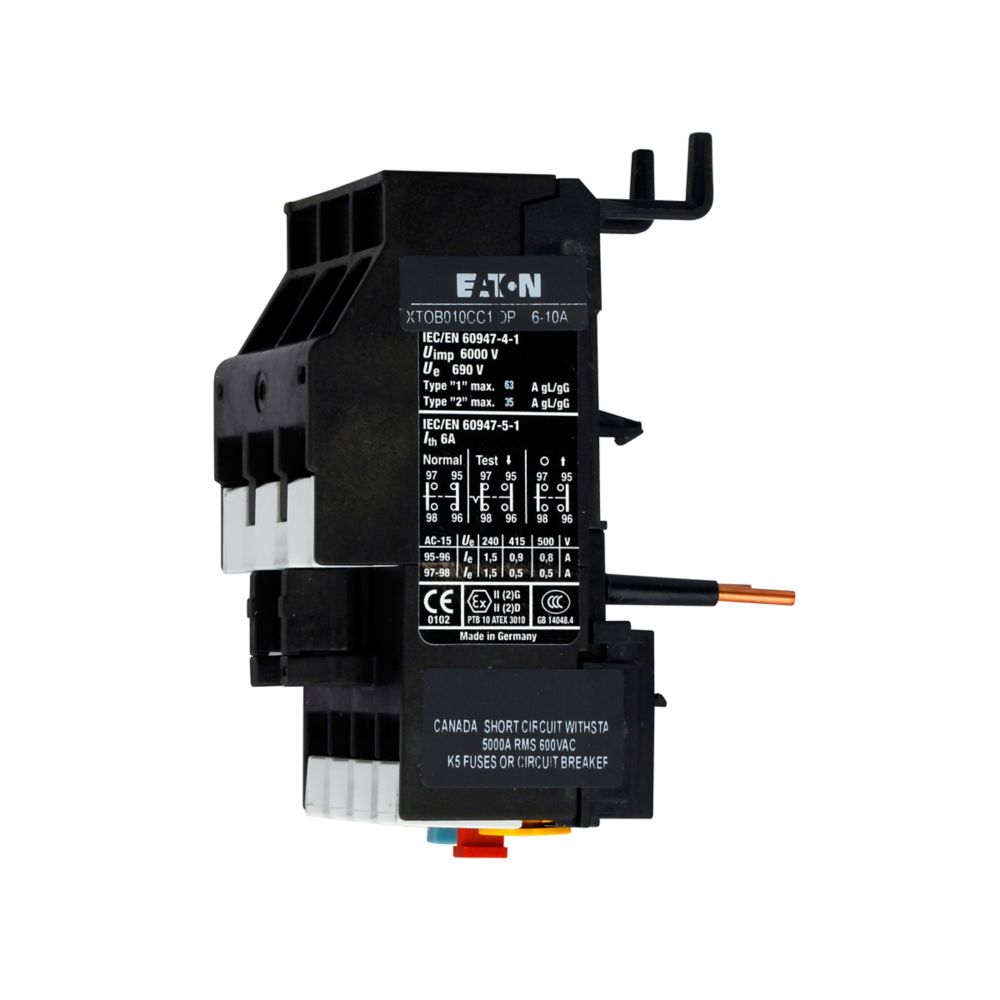

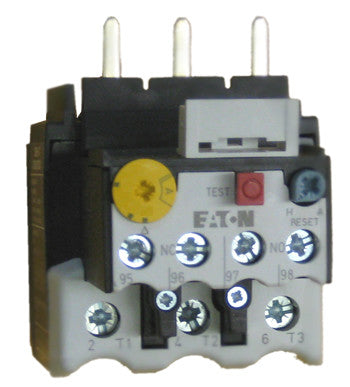

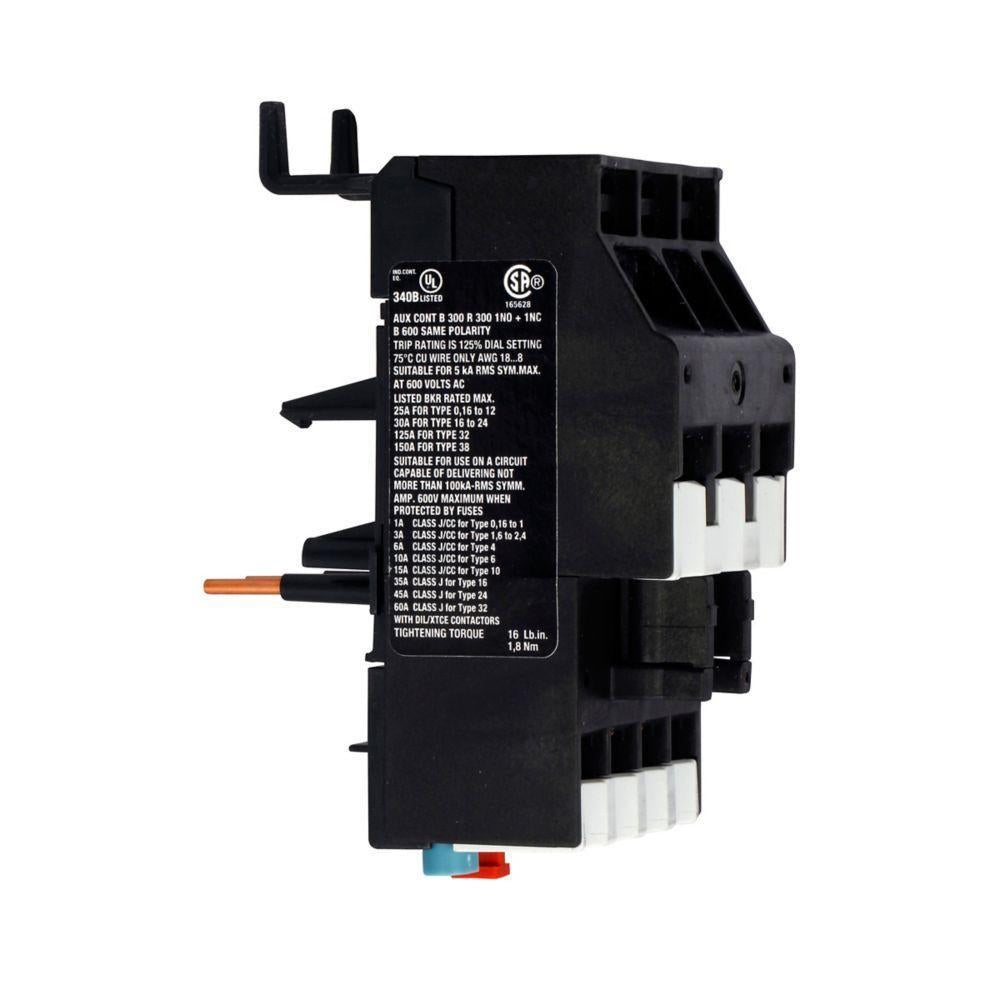

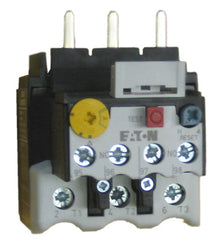

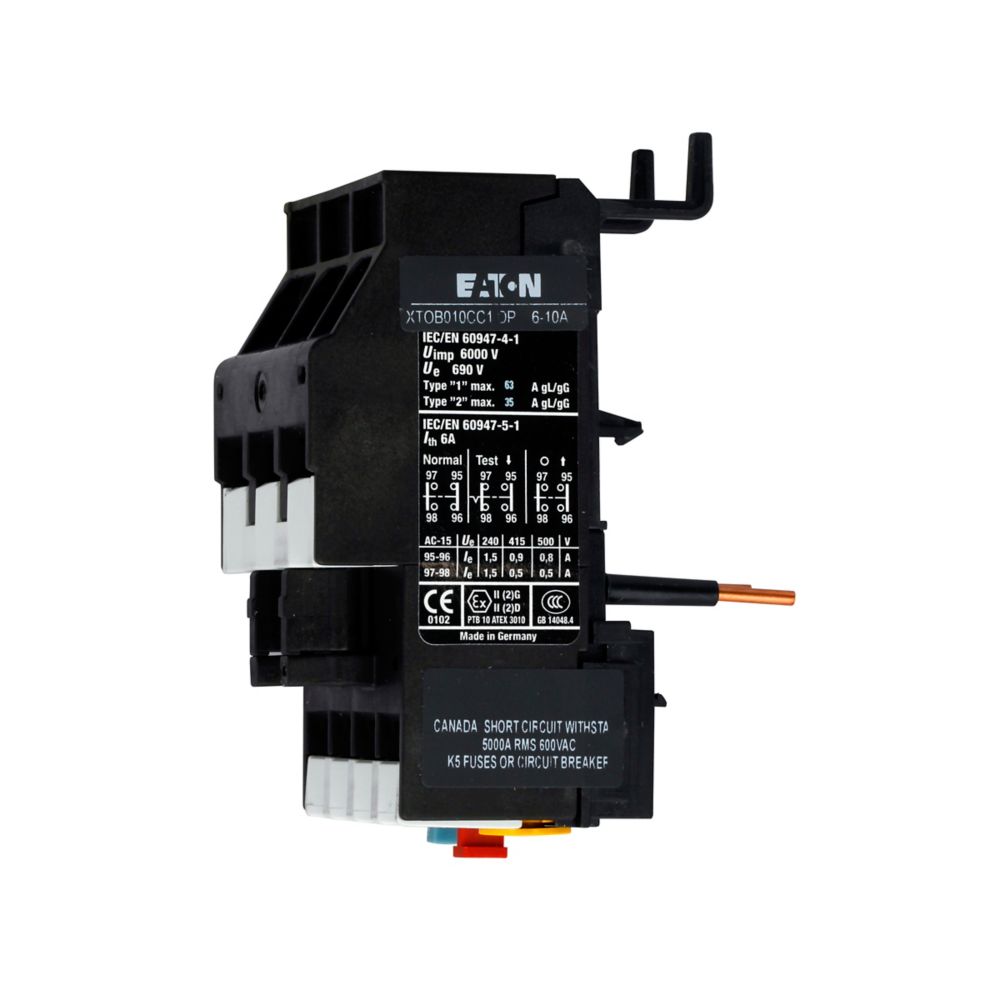

Eaton XTOB016DC1DP XT IEC bimetallic overload relay 10-16A frame D 3-pole

Product Description

The Eaton XTOB016DC1DP is an XT IEC bimetallic overload relay designed for motor protection. This Frame D device is compatible with Eaton C25D line of Definite Purpose Contactors and offers an adjustable current range of 10-16A. It features 1 NO / 1NC auxiliary contacts and threaded terminals for secure connections. The relay is UL/CUL listed, ensuring compliance with safety standards, and operates within a temperature range of -25 to 50 deg C. It provides reliable and accurate protection for various industrial applications.

• Reliable, accurate, electronic motor protection for industrial applications.
• Compatible with Eaton C25D line of Definite Purpose Contactors.
• Features selectable auto/manual reset after trip for operational flexibility.

Product Highlights

Compact design saves space and engineering time, offering flexible and intelligent motor protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOB016DC1DP
• Country of Origin: United States

Technical Specifications

• Catalog Number: XTOB016DC1DP
• Manufacturer: Eaton
• Product Type: Definite Purpose Contactor Overload
• Frame Size: D
• Certifications: UL/CUL listed
• Country Of Origin: United States
• Made In USA: Yes
• Application: Industrial Facilities & Factories, Electrical Assemblies, Panels & EOEMs
• Compatibility: Eaton C25D line of Definite Purpose Contactors
• UPC: 782116978243
• GTIN: 00782116978243
• Technology: Bi-Metallic
• Series: XTOB
• Auxiliary Contacts: 1 NO / 1NC
• Mounting Type: Chassis Mount
• Terminal Type: Threaded
• Current Range: 10 to 16 A
• Operating Temperature: -25 to 50 deg C
• Trip Class: 10
• Includes: 5/8-11 Set Screw
• Family: C25 Series
• Category: Overload Relays
• Number of Phases: 3
• Current Type: AC
• Number of Poles: 3-Pole
