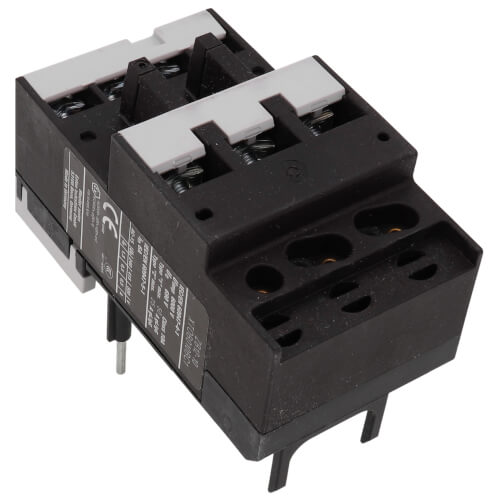

Eaton XTOB010BC1 Bimetallic Overload Relay 6-10A Overload Range 45 mm Frame Size 1NO-1NC Contact Configuration

Product Description

The Eaton XTOB010BC1 is a bimetallic overload relay with a current range of six to ten amperes. It features a frame size of forty-five millimeters and a one normally open and one normally closed contact configuration. This relay is designed for direct mounting to contactors and is compatible with seven to fifteen amp contactors. It operates with a ten amp trip type.

• Current range: 6-10A
• Contact configuration: 1NO-1NC
• Direct mounting type

Product Highlights

The Eaton XTOB series improves IEC power control effectiveness. It includes both non-reversing and reversing contactors, overload relays, and accessories. This product's compact dimensions are suitable for various industrial applications where space optimization is crucial.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: XTOB010BC1

Technical Specifications

• Trip Type: 10 A
• Country of Origin: Germany
• Application: Stationary machinery and equipment, pumps and compressors
• Standards/Approvals: IEC 60947, CSA Certified, UL Listed, RoHS compliant
• Mounting: Direct
