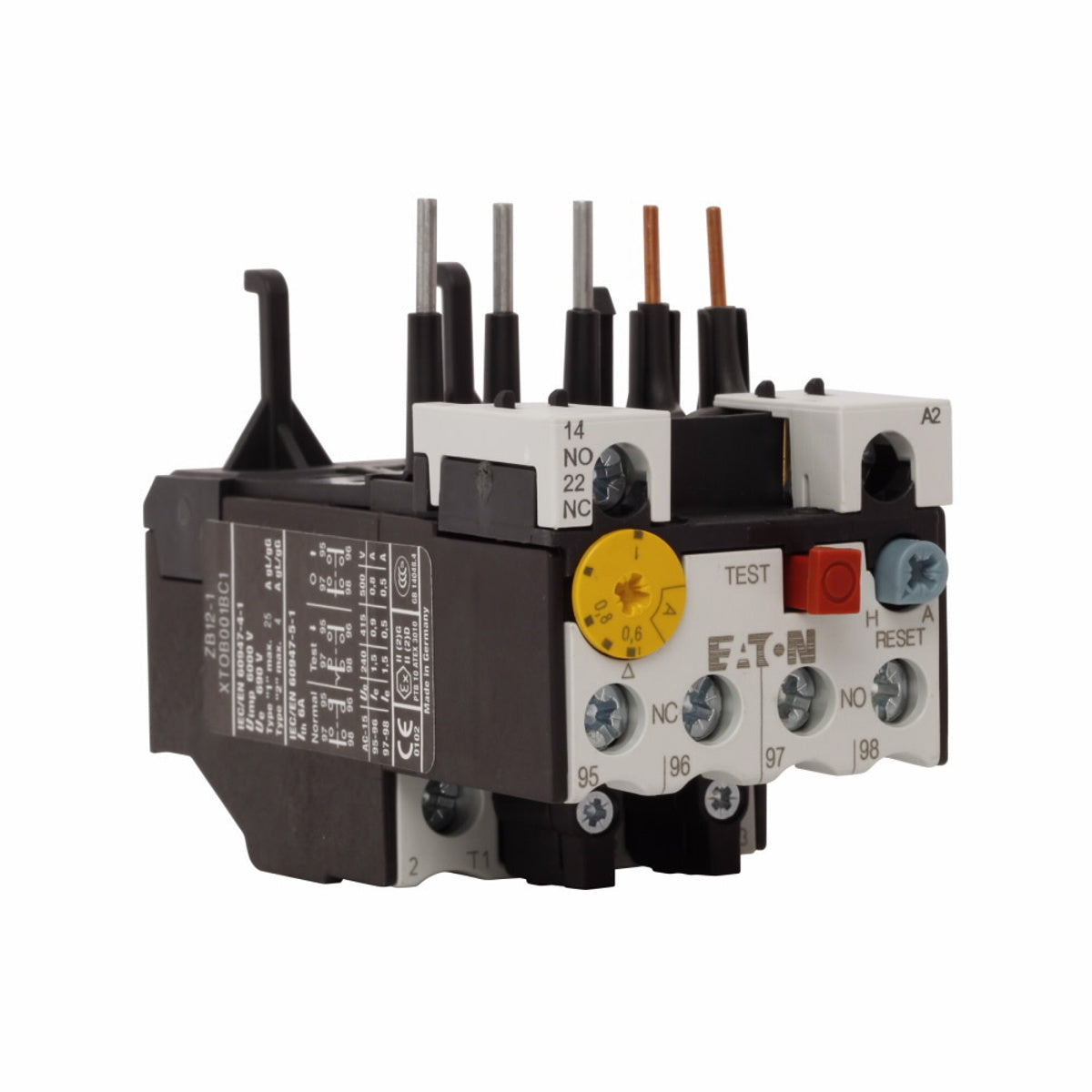

Eaton XTOB001BC1 Eaton XT IEC Bimetallic Overload Relay 0.6-1A 45 mm Frame Size N/A

Product Description

The Eaton XTOB001BC1 is part of the XT series, designed for effective control in industrial settings. This overload relay provides a range of 0.6 to 1A and allows direct mounting to contactors. The product is suitable for use with stationary machinery and equipment including pumps and compressors.

• Overload range of 0.6 to 1A
• 1NO-1NC contact configuration
• UL Listed and CE Marked

Product Highlights

The Eaton XT overload relay is an essential component for protecting motors from overload conditions.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: XTOB001BC1

Technical Specifications

• Contact Rating: 6 A at 240 VAC
• Application: Stationary machinery and equipment
• Amperage Rating: 0.6 to 1 A
• Contact Configuration: 1NO-1NC
• Mounting Type: Direct to contactor
• Standards/Approvals: UL Listed, CSA Certified, CE Marked
• Temperature Rating: -13 to 131 degrees Fahrenheit
• Dimensions: 1.76 inches W x 3.48 inches D x 2.66 inches H
