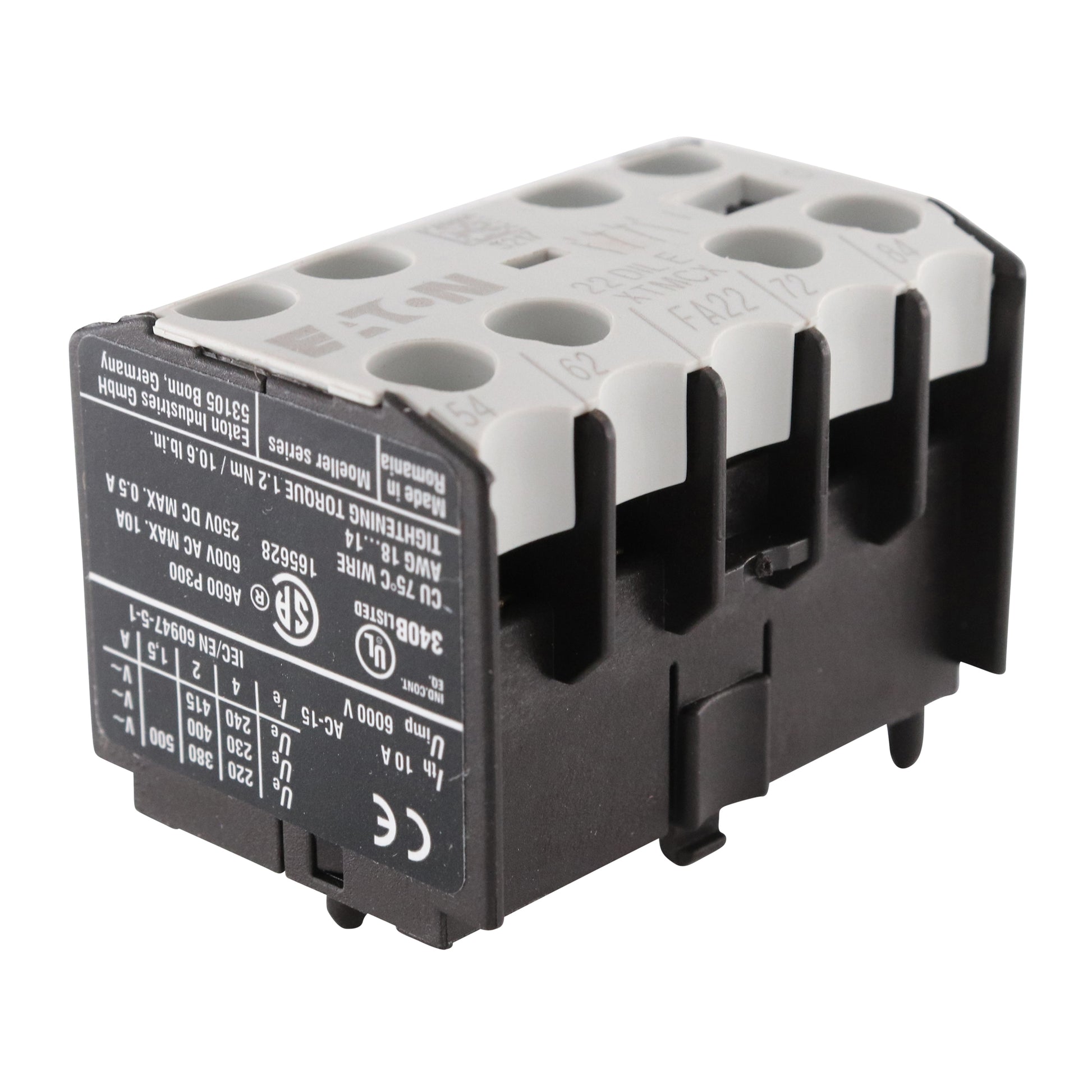

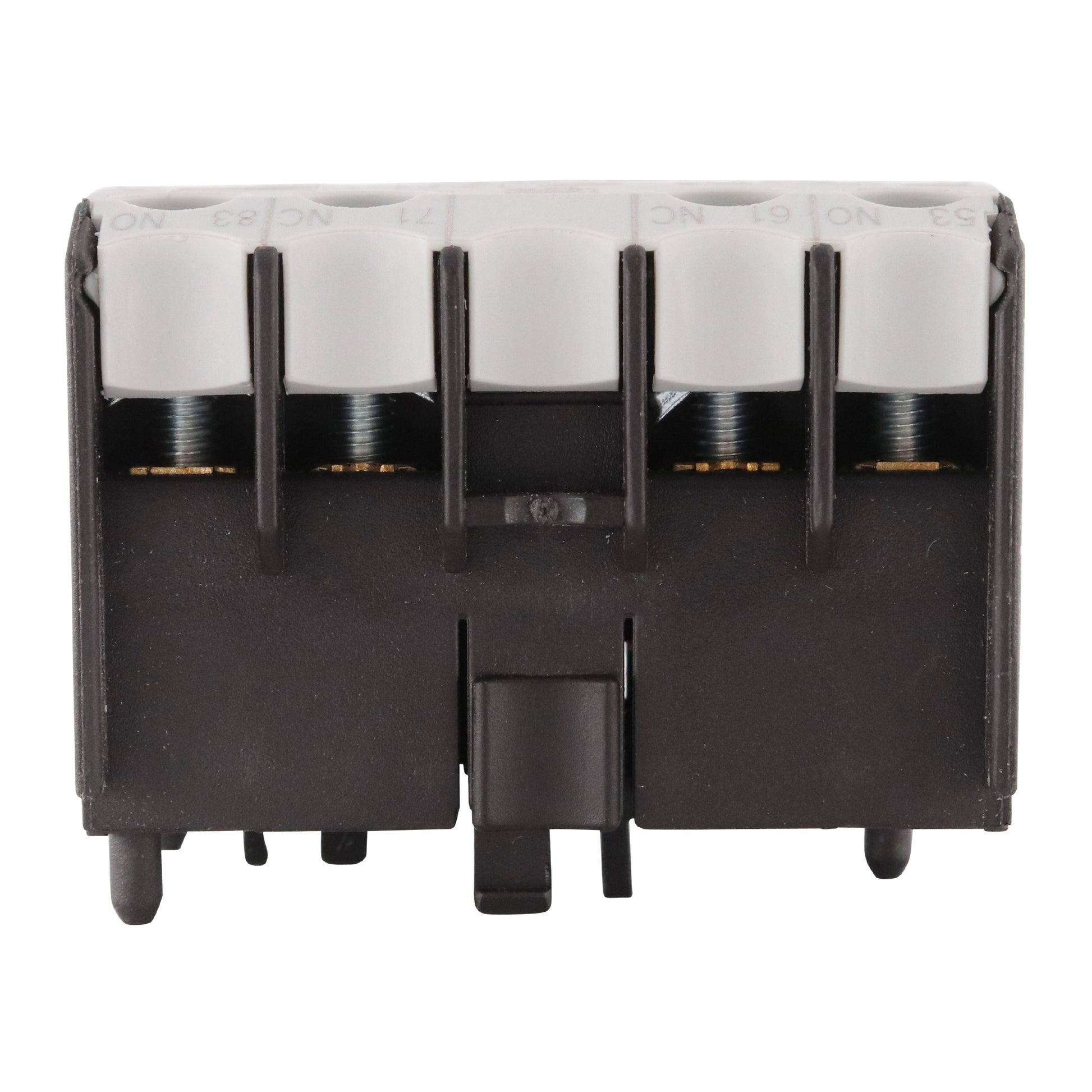

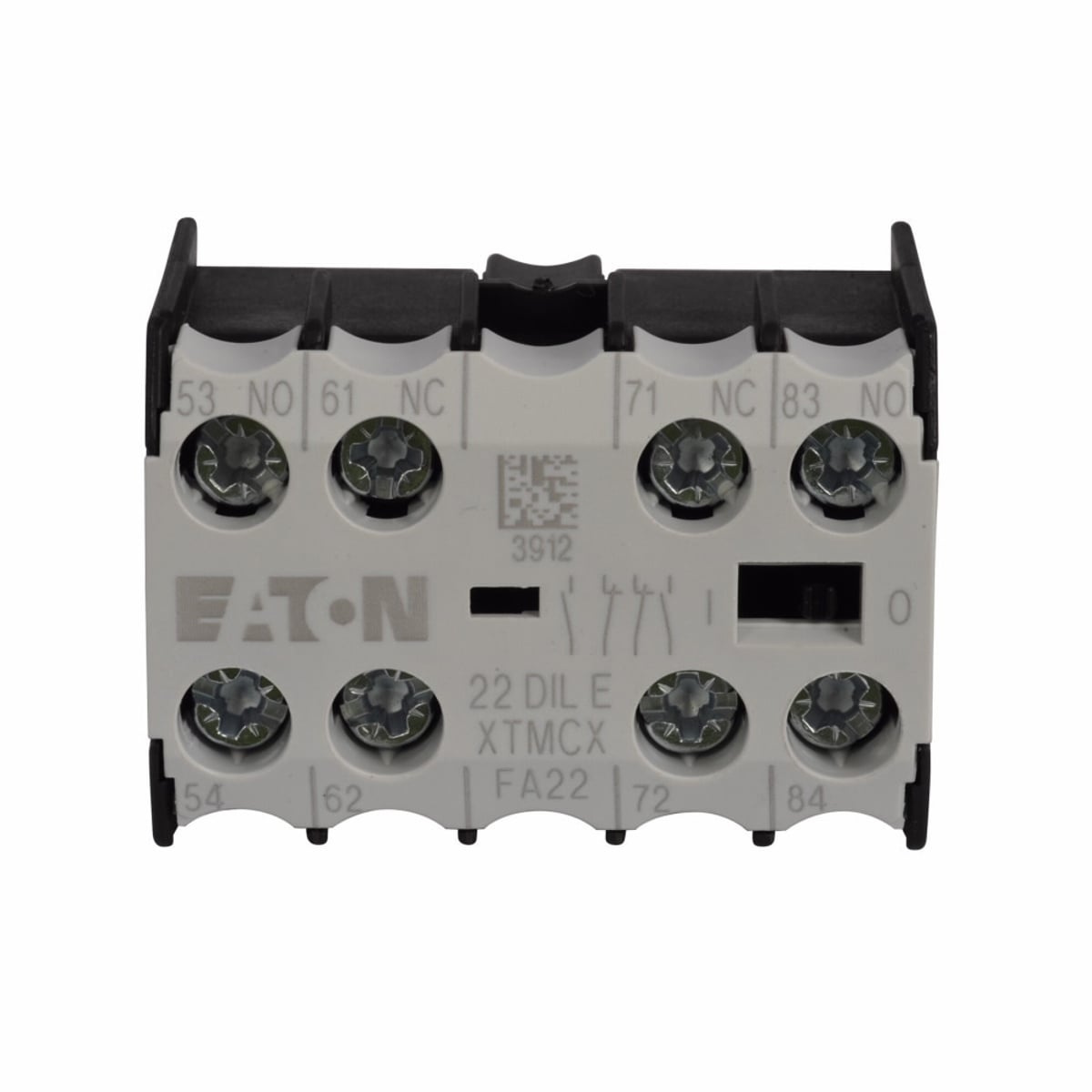

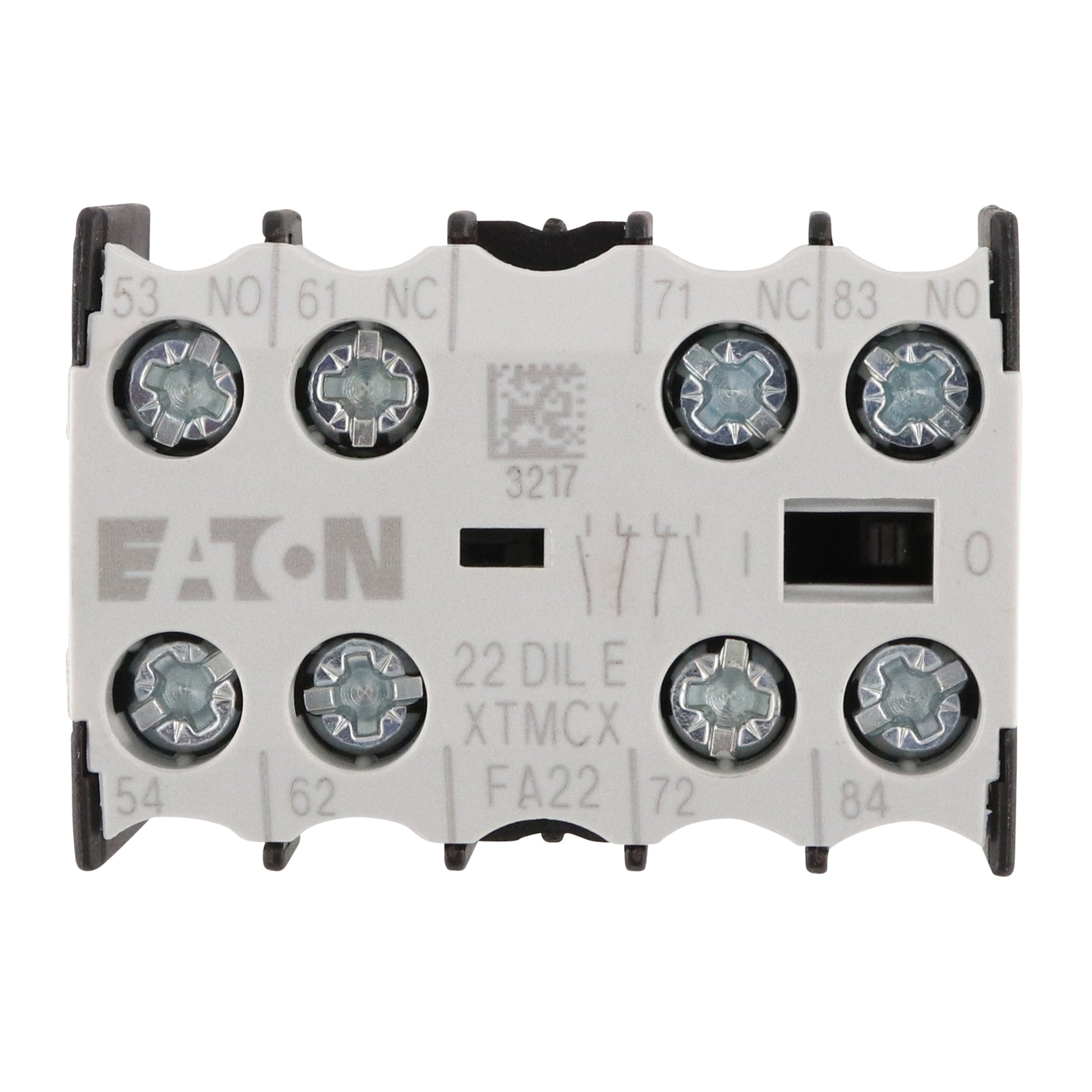

Eaton XTMCXFA22 Mini Cont Acc Front Aux 10 A (4-Pole)

Product Description

Eaton XTMCXFA22 is a four-pole auxiliary contact module that provides two normally open (NO) and two normally closed (NC) contacts for use with XTRM miniature control relays. It features screw terminal connections, front mounting, and a 10 A conventional thermal current rating with a 600 VAC voltage rating. Typical applications include electrical assemblies, control panels, and original equipment manufacturer panels.

• Four-pole design with 2 NO and 2 NC contacts; 4 total contacts
• 10 A conventional thermal rating, 600 VAC voltage rating; screw terminal connections
• Front-mount accessory compatible with XTRM miniature control relays; compact dimensions (1.7 x 1.3 x 2 in)

Product Highlights

4-pole auxiliary contact module, 2 NO/2 NC, 10 A rating, front mounting, compatible with XTRM miniature control relays.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTMCXFA22
• Country of Origin: Romania

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: XTMCXFA22
• Catalog Number: XTMCXFA22
• Manufacturer: Cutler-Hammer / Eaton
• Series: XT Series
• Product Type: Auxiliary contact module
• Number of Poles: 4
• Number of Contacts: 4
• Contact Configuration: 2 NO, 2 NC
• Max Current (AC): 10 A
• Voltage Rating: 600 VAC
• Terminal Type: Screw
• Mounting Type: Front
• Compatible With: XTRM miniature control relays
• Dimensions: 1.7 x 1.3 x 2 in
• Weight: 0.09 lb
• Max Contact Blocks: 1
• Country of Origin: Romania
• Certifications: IEC 60947; EN 60947; UL Listed; CSA Certified; CCC Marked; ATEX Compliant; CE Marked
• GTIN: 04015080102885
• Product SKU: XTMCXFA22 EC
