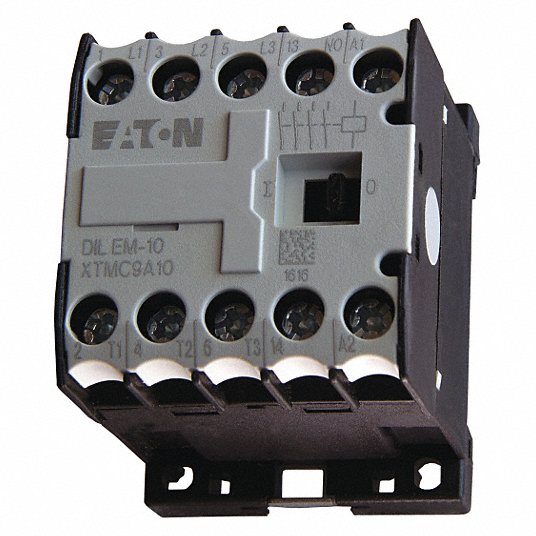

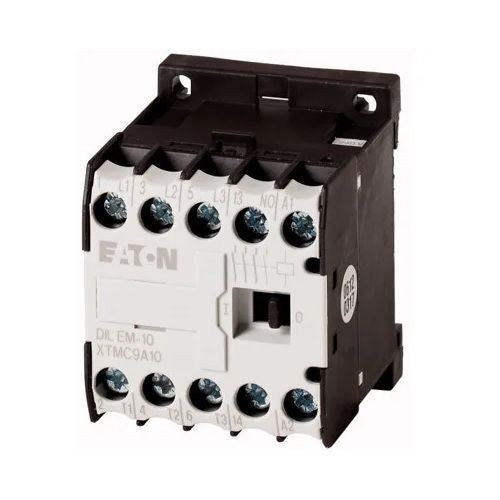

Eaton XTMC9A10B IEC Mini Magnetic Contactor, 240VAC, 9A, 1NO

EATON
Brand: EATON
SKU: XTMC9A10B
Availability: In Stock

Ships same day if ordered by 12 pm
$122.05
$122.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton XTMC9A10B IEC Mini Magnetic Contactor is rated at 240VAC, 9A, and features 1NO contact configuration. This mini contactor connects and disconnects power to motors and other high-current equipment and machinery in a single direction. It is often combined with overload relays to create motor load starters and provide overload protection.

  • Miniature, non-reversing IEC contactors
  • Compact construction
  • Connects and disconnects power to motors and other high-current equipment

Product Highlights

The Eaton XTMC9A10B is ideal for light-duty loads, such as hoisting, packaging, material handling, and automation systems.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: XTMC9A10B
  • Country of Origin: Germany
Technical Specifications
Product Name
Eaton XT IEC mini contactor
SKU
XTMC9A10B
Catalog Number
XTMC9A10B
EAN
4015080517856
Product Length/Depth
2.5 in
Product Height
2 in
Product Width
2.5 in
Product Weight
0.4 lb
Compliances
RoHS Compliant, CE Marked
Certifications
UL Listed, CSA Certified, IEC 60947, EN 60947
Catalog Notes
Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
Product Type
Mini contactors
Amperage Rating
8.80A
HP rating - max
0.5, 1, 1.5/ 2, 3, 5, 5 hp (1/3PH @115,200,230/200,230,460,575 V)
Number of poles
3
Type
Full voltage non-reversing mini contactor
Frequency rating
50-60 Hz
Frame size
45 mm - mini
Terminals
Screw terminals
Coil Voltage
220/240 VAC
Contact configuration
1 NO
Continuous ampere rating
20 A
Series
XT IEC
Operation
Non-reversing
Maximum Load Current
8.8 A
Mounting Type
DIN Rail/Panel
Number of Auxiliary Contacts
1
Operating Temperature
-13 to 122 deg F
Dimensions
2.28 in H x 1.77 in W x 2.05 in D
Enclosure Type
IP20
Size
45 mm
Application
For best suited to be applied in light duty loads, such as hoisting, packaging, material handling, heating, lighting and automation systems, motor and power control equipment applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, IEC 60947, EN 60947, CSA Certified, CE Marked, UL Listed
AMP Rating
9 AMPS
Horsepower Rating
3 H.P. @ 230 volt
Base mounted auxiliary
1 normally open
Reversing Capability
Non-Reversing
Main Power Pole Contact Form
3NO
Includes Auxiliary Contacts
Yes
Auxiliary Contacts Included
1NO
Full Load Current - Inductive
9 A
Full Load Current - Resistive
20 A
Nominal Coil Voltage @ 60Hz
240V AC
Maximum Voltage Rating
690V AC/DC
Horsepower @ Single Phase - 120V AC
1/2 hp
Horsepower @ Single Phase - 240V AC
1-1/2 hp
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Three Phase - 600V AC
5 hp
Wire Termination Type
Screw
Integrated Surge Suppression
Yes
IP Rating
IP20
NEMA Enclosure Rating
No
Overall Height
2 in
Overall Width
2.5 in
Overall Depth
2.5 in
Mounting Postion
Vertical
Mechanical Operating Durability
10,000,000
Minimum Operating Temperature
-13 °F
Maximum Operating Temperature
122 °F
Standards
CE; CSA; EN 60947; IEC 60947; RoHS; UL Listed
UNSPSC
39121529
Coil Power Rating
1/2 hp at 115 VAC 1 ph, 1 hp at 200 VAC 1 ph, 1-1/2 hp at 230 VAC 1 ph, 2 hp at 200 VAC 3 ph, 3 hp at 230 VAC 3 ph, 5 hp at 460/575 VAC 3 ph
