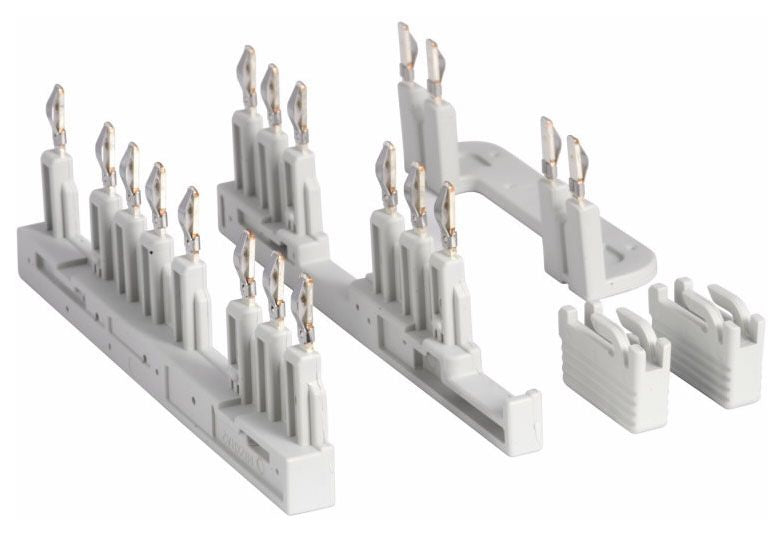

Eaton XTCEXRLB Auxiliary Contact Block DILM7 DILM9 DILM12

Product Description

The EATON XTCEXRLB is an auxiliary contact block designed to expand the switching capacity of compatible EATON DILM-series contactors. This add-on accessory mounts directly to the contactor body and provides additional normally open or normally closed contact positions for control circuit wiring. It is used in motor control centers, panel boards, and industrial control applications where auxiliary switching signals are needed for interlocking, indication, or sequencing. Licensed electricians and industrial control technicians are the typical installers of this component.

The XTCEXRLB auxiliary contact block is intended for use with EATON DILM-series contactors in residential, commercial, and light industrial motor control installations. It is commonly installed in motor starters, HVAC equipment control panels, and automation panels where additional contact positions are required beyond those built into the base contactor unit. Compatible contactor frame sizes include DILM7, DILM9, and DILM12 as stated by the manufacturer.

Key Features

• Snap-on mounting directly to DILM7, DILM9, and DILM12 contactor bodies for tool-free installation
• Expands available control circuit switching positions without replacing the base contactor
• Designed as an OEM-style accessory block for EATON DILM-series contactors
• Compact form factor allows installation in tight panel enclosures

Compatibility

Compatible with EATON DILM7, DILM9, and DILM12 series contactors as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the panel before installing or removing any contactor accessory block. Verify contact block orientation matches the contactor mounting interface before snapping into place. Do not force the block onto the contactor body, as improper seating can result in intermittent contact operation.

Technical Specifications

• UPC: 01508283108

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXRLB
