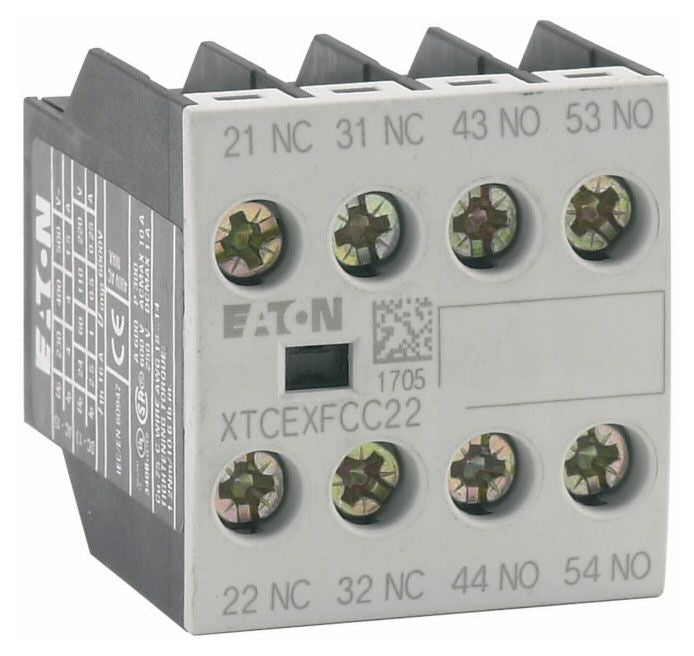

Eaton XTCEXFCC22 Front Mount Auxiliary Contact Block

Product Description

The EATON XTCEXFCC22 is a front mount auxiliary contact block designed for use with compatible EATON XT contactor series assemblies. Auxiliary contact blocks extend the switching capability of a contactor by adding supplemental control circuit contacts without increasing the contactor footprint beyond the front face. The XTCEXFCC22 mounts directly to the front of the contactor body and is installed by licensed electricians during panel builds, motor control center assembly, or field service on industrial control equipment. Its compact form factor measures 2.170 inches long by 1.420 inches wide by 1.460 inches tall and weighs 0.110 pounds.

This auxiliary contact block is suited for use in motor control, machine automation, and industrial switching applications where additional control circuit feedback or interlock contacts are required alongside a main contactor. It is appropriate for both OEM panel assembly and field replacement scenarios in light industrial and commercial electrical installations. Electricians working on EATON XT series contactor-based motor starters or control panels will find this block a direct fit for front-mount auxiliary contact positions.

Key Features

• Front mount configuration attaches directly to the face of compatible EATON XT series contactors
• Adds supplemental control circuit contacts without expanding the contactor base footprint
• Compact dimensions: 2.170 inches x 1.420 inches x 1.460 inches
• Lightweight at 0.110 pounds for easy handling during panel assembly
• Suitable for motor control center builds, machine control panels, and field service replacement

Compatibility

Designed as an OEM-style front mount auxiliary contact block for use with compatible EATON XT series contactors. Consult EATON product documentation to confirm fitment with your specific contactor model before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local electrical codes. De-energize and lock out the contactor and all associated control circuits before attaching or removing auxiliary contact blocks. The block snaps or fastens to the front face of the contactor body; verify secure mechanical engagement before restoring power. Confirm control circuit contact ratings are appropriate for the intended switching load before commissioning.

Technical Specifications

• Mount Type: Front Mount
• Length: 2.170 inches
• Width: 1.420 inches
• Height: 1.460 inches
• Weight: 0.110 pounds
• UPC: 01508277377

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXFCC22
