Eaton XTCEXFAC04 Auxiliary Contact 500 VAC 1.5/6 A

Product Description

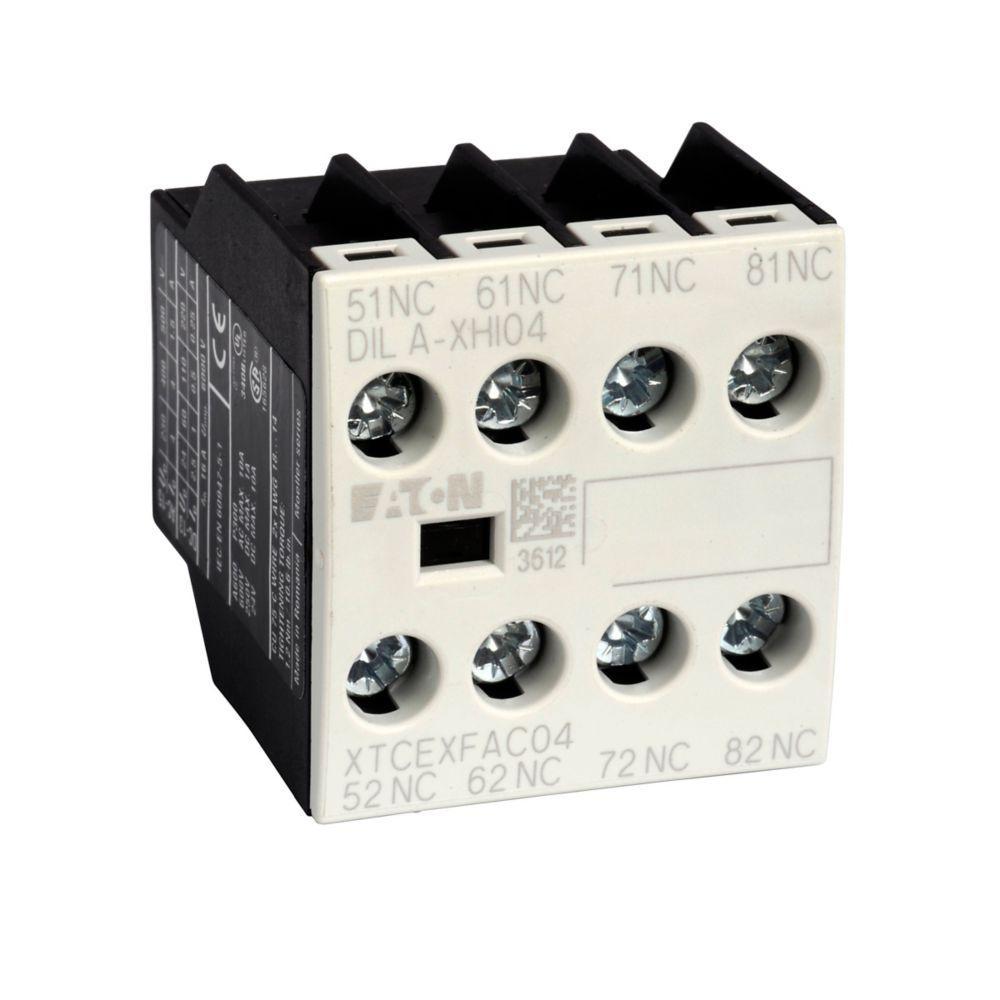

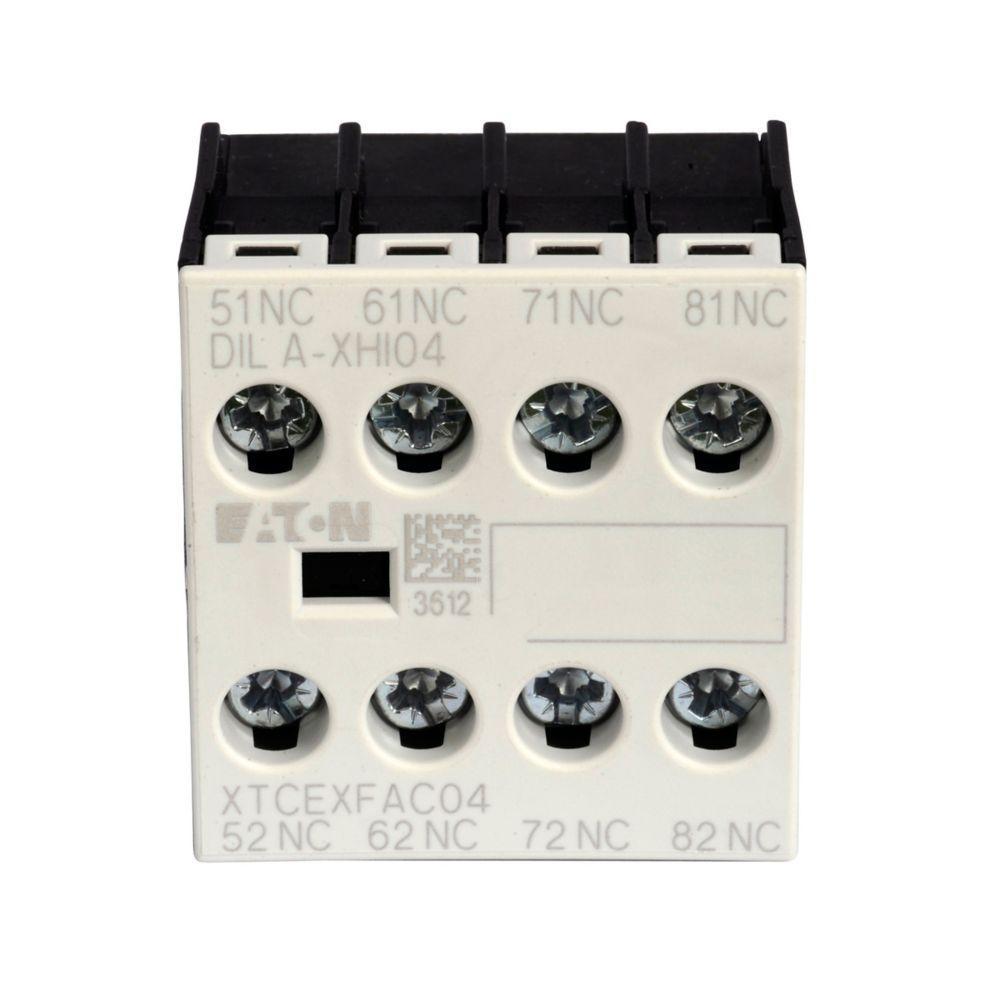

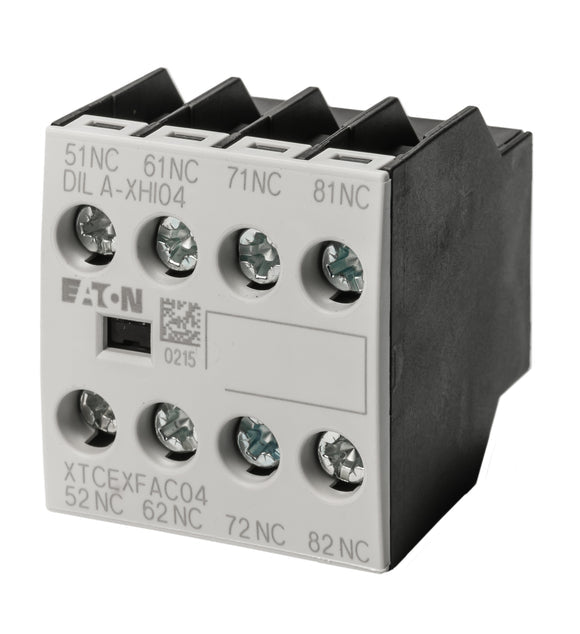

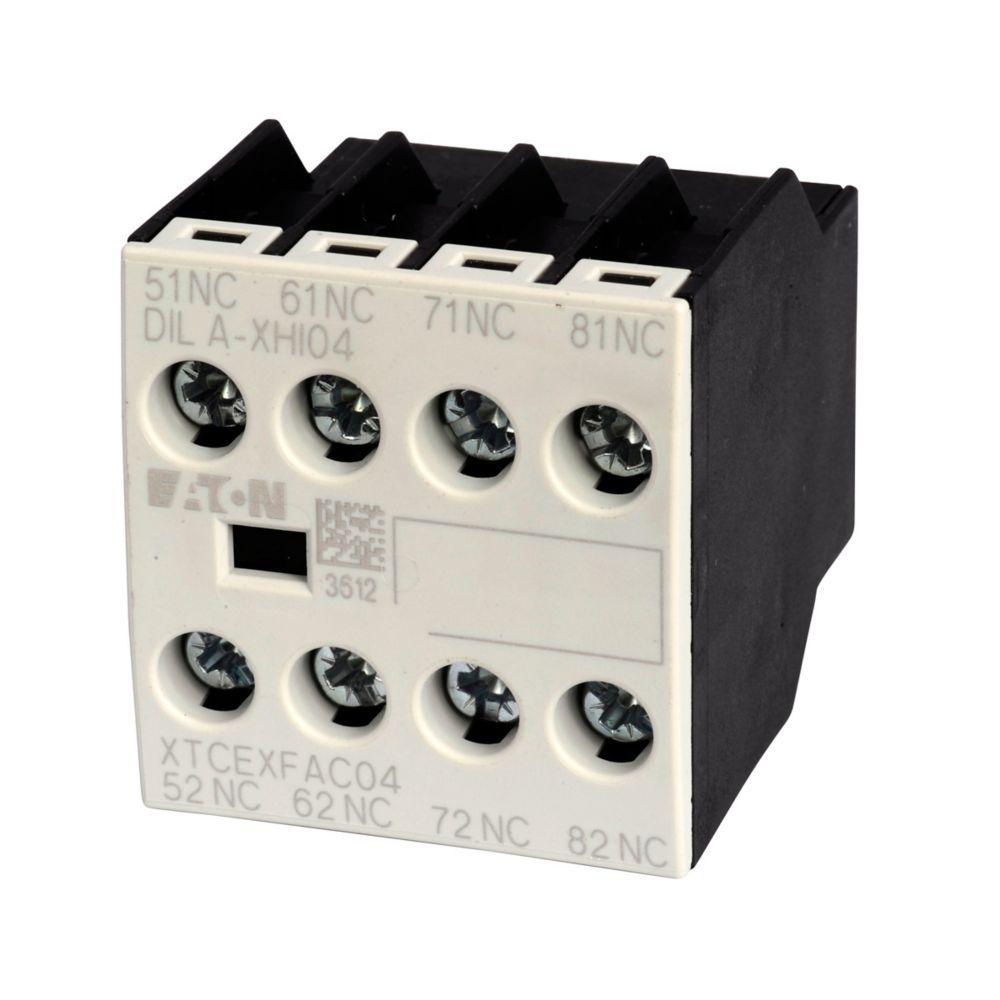

The EATON XTCEXFAC04 auxiliary contact is a 4-pole, front-mounted block designed for motor control and protection. It is suitable for use with DILA/DILM7/DILM9/DILM12/DILM15/DILM17/DILM25/DILM32/DILM38 contactors and XTRE control relays. The auxiliary contact block features screw terminals and interlocked opposing contacts.

• Four-pole auxiliary contact block
• Rated for 500 VAC
• Front mounting

Product Highlights

The EATON XTCEXFAC04 auxiliary contact block provides reliable motor control and protection with its durable design and versatile compatibility.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXFAC04

Technical Specifications

• Mounting Type: Front
• Size: SZ 0/1
• Suitable For Use With: DILA/DILM7/DILM9/DILM12/DILM15/DILM17/DILM25/DILM32/DILM38/DILMP20/DILMP32/DILMP45/DILL/DILMF8/DILMF11/DILMF14/DILMF17/DILMF25/DILMF32 Contactor and XTRE Control Relay, Motor Control
• Tip Type: Screw
• Type: 4-Pole
• Voltage Rating: 500 VAC
• Amperage Rating: 1.5/6 A
• Number of Contacts: 4
• Product Length/Depth: 1.5 in
• Product Height: 1.3 in
• Product Width: 1.5 in
• Product Weight: 0.12 lb
• Compliances: CCC Marked CE Marked ATEX Compliant
• Certifications: IEC 60947 EN 60947 UL Listed CSA Certified
• Catalog Notes: Interlocked opposing contacts, to IEC/EN 60947-5-1 Annex L (positively driven), within the auxiliary contact modules (not NOE and NCL contacts) and between the auxiliary contacts and built-in contacts of the XTRE control relays.
• Global Catalog: XTCEXFAC04
• Product Type: Motor control renewal parts/accessories
• Used with: XTRE control relays
• Number of poles: Four-pole
• Terminals: Screw
• Contact configuration: 4 NC
• Rated operational current: 6A at 220/230/240V; 3A at 380/400/415V; 1.5A at 500V
• Special features: Used with XTRE control relays
• Conventional thermal current: 16A
• Number of Poles: 4-Pole
• Mounting: Front
• Contact arrangement: 4 normally closed
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, CSA Certified, ATEX Certified, CCC Marked, CE Marked, IEC 60947, EN 60947
