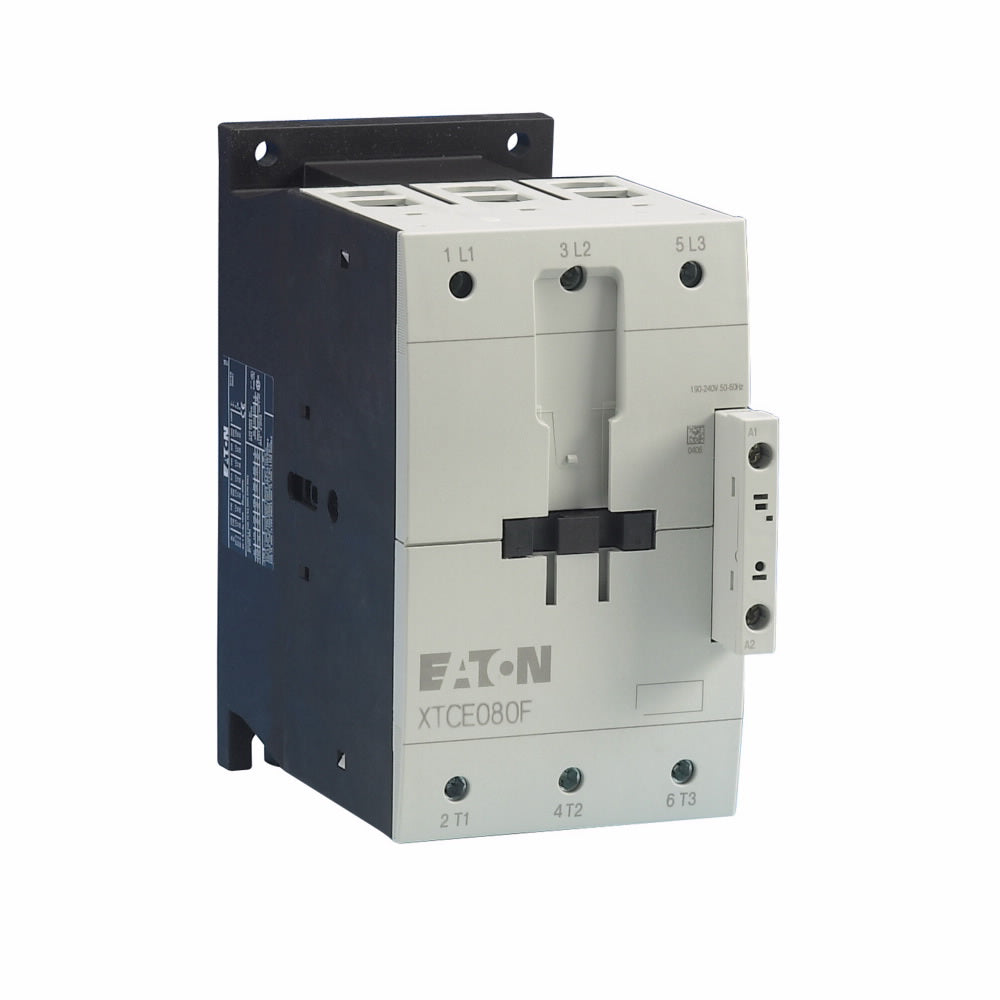

Eaton XTCE080F00A Eaton XT IEC Contactor 80A 110 Vac 50 Hz 120 Vac 60 Hz

Product Description

The Eaton XTCE080F00A is an IEC contactor that operates at 80 Amperes with coil voltages of 110 Vac at 50 Hz and 120 Vac at 60 Hz. This model is designed for effective control of various motors and systems, making it suitable for commercial and institutional applications.

• Coil Voltage: 110-120 Vac, 50/60 Hz
• Contact Configuration: 0 NO, 0 NC
• UL Listed and RoHS Compliant

Product Highlights

The XT series is engineered for efficiency and versatility in different environments. Its compact design helps to save space while providing robust control capabilities.

Product Information

Standard Information

• Catalog Number: XTCE080F00A
• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Application: Power Distribution and Controls
• Coil Voltage: 110-120 Vac
• Maximum Load Current: 80 A
• Number of Poles: 3
• Operating Temperature: -13 to 122 deg F
• Enclosure Type: IP20
• Size: 90 mm
• Standards: UL Listed, IEC 60947, RoHS Compliant
