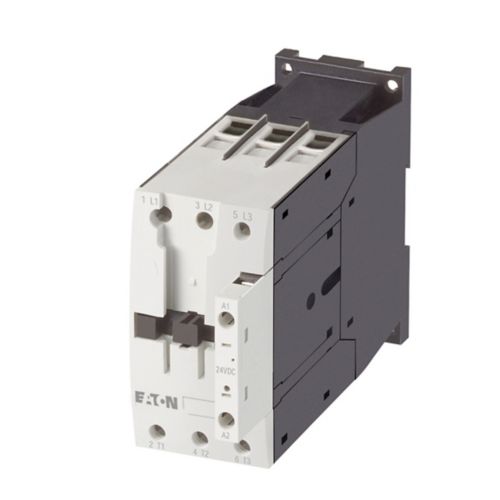

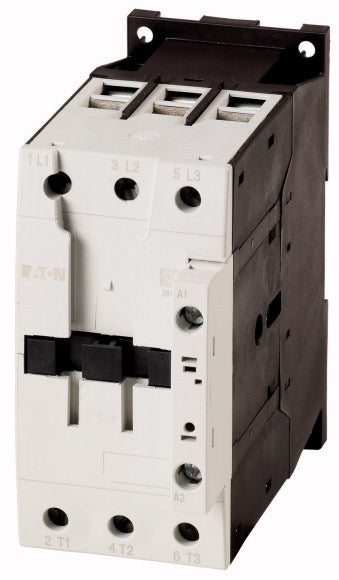

Eaton XTCE072D00TD XT IEC FVNR Contactor 72A 24-27 Vdc

Product Description

The Eaton XTCE072D00TD XT IEC FVNR Contactor is rated at 72A and operates on 24-27 Vdc. This three-pole, non-reversing contactor with screw terminals is designed for connecting and disconnecting power to motors and other high-current equipment. It conforms to IEC 60947 standards.

• Rated 25 HP at 230V
• Rated 50 HP at 460V
• Connects and disconnects power to motors

Product Highlights

The Eaton XTCE072D00TD contactor is ideal for motor control applications requiring a reliable and robust switching solution.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE072D00TD

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE072D00TD
• EAN: 4015081073375
• Product Length/Depth: 5.8 in
• Product Height: 2.3 in
• Product Width: 4.7 in
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 72A
• HP rating - max: 5, 10, 15/ 20, 25, 50, 60 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: Three-pole
• Type: Full voltage non-reversing contactor
• Frame size: 55 mm
• Terminals: Screw terminals
• Coil voltage: 24-27 Vdc
• Contact configuration: 0 NO, 0 NC
• Continuous ampere rating: 72 A
• Series: XT IEC
• Operation: Non-reversing
• MPN: XTCE072D00TD
• Brand: Eaton
• HP ratings 230V: 25
• HP ratings 460V: 50
• Manufacturer: Eaton Electrical
• Item model number: XTCE072D00TD
