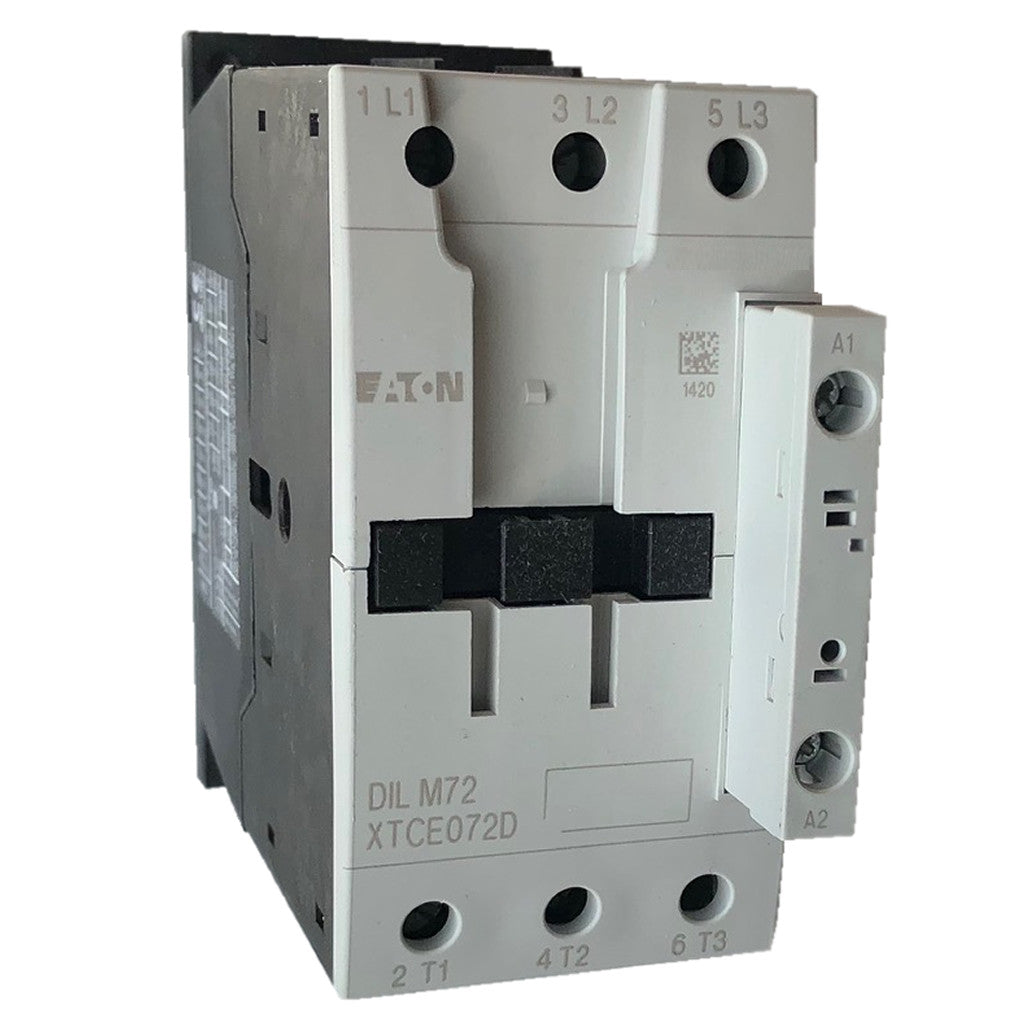

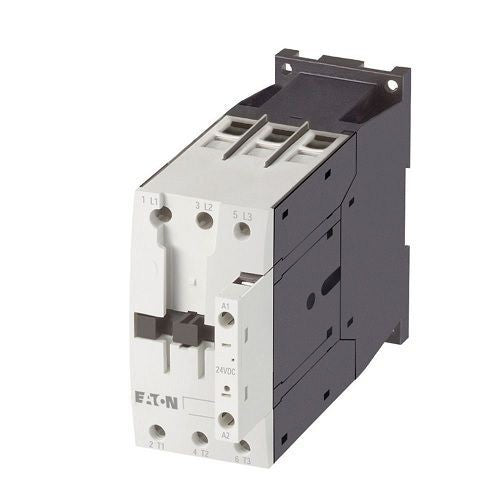

Eaton XTCE072D00A XT IEC contactor 72A

Product Description

The Eaton XTCE072D00A is an XT IEC contactor, rated at 72A with a 110 Vac 50 Hz, 120 Vac 60 Hz coil and a 0NO-0NC contact configuration. This three-pole contactor features screw terminals and is suitable for full voltage non-reversing applications. It is designed to mount on a standard 35MM DIN rail.

• 72A Amperage Rating
• 110-120 Vac, 50/60 Hz Coil Voltage
• Screw Terminals

Product Highlights

The Eaton XTCE072D00A contactor is ideal for motor protection, providing over current and phase loss protection when paired with thermal and electronic overload relays.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE072D00A
• Country of Origin: China

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE072D00A
• EAN: 4015081088119
• Product Length/Depth: 5.77952756 in
• Product Height: 4.09448819 in
• Product Width: 2.16535433 in
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 72A
• HP rating - max: 5, 10, 15/ 20, 25, 50, 60 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of Poles: Three-pole
• Type: Full voltage non-reversing contactor
• Frequency rating: 50-60 Hz
• Frame size: 55 mm
• Terminals: Screw terminals
• Coil Voltage: 110-120 Vac, 50/60 Hz
• Contact Configuration: 0 NO, 0 NC
• Continuous ampere rating: 72 A
• Series: XT IEC
• Operation: Non-reversing
• Coil Power: 110v 50 Hz, 120V 60 Hz W
• Mounting Type: DIN Rail/Panel Mount
• UPC Code: 4015081088119
• Mounting Style: DIN Rail Mount
• Current Type: AC
• Packaging: Box
• MPN: XTCE072D00A
• Features: Non-Reversing, Reversing
• Number of Phases: 3
• Country of Origin: China
• Terminal Type: Screw
