Eaton XTCE065DS1A XT IEC contactor 65A

Product Description

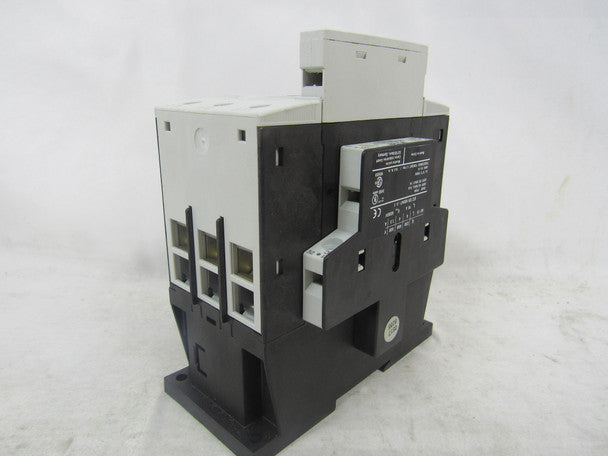

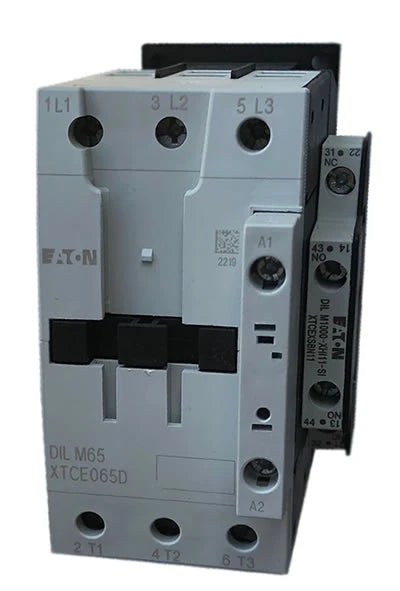

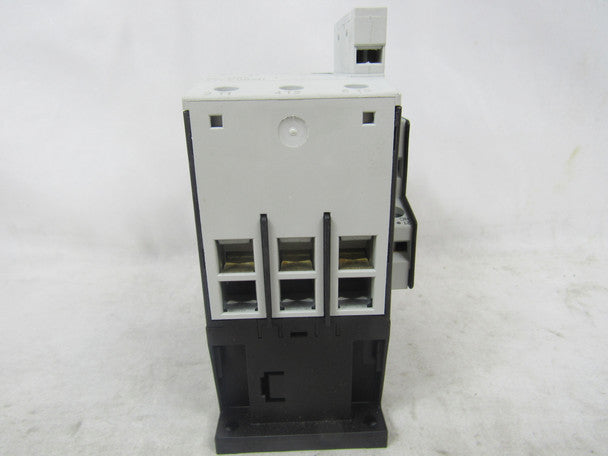

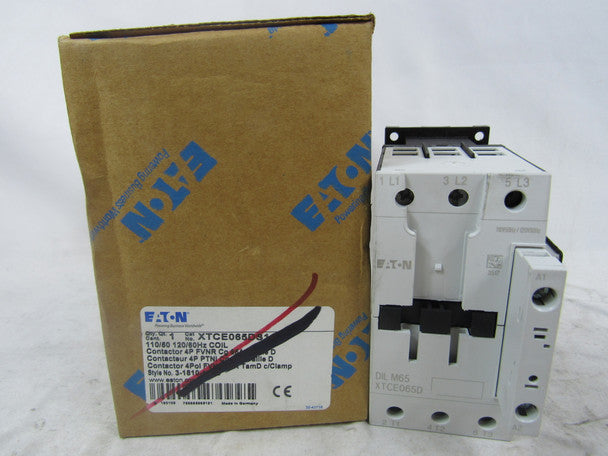

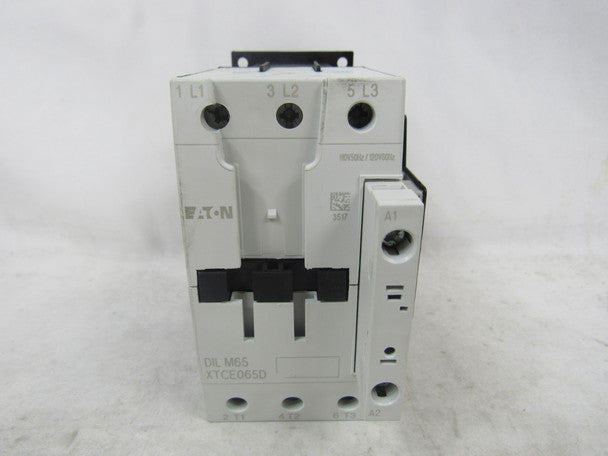

The Eaton XTCE065DS1A is an Eaton XT IEC contactor, rated at 65A. This three-pole, side-mounted contactor operates at 110 Vac 50 Hz and 120 Vac 60 Hz, and features 1 NO and 1 NC contacts. It is designed for full voltage non-reversing applications and uses screw terminals. Suitable for various motor control applications.

• 65A amperage rating
• 1 NO and 1 NC contact configuration
• Full voltage non-reversing operation

Product Highlights

The Eaton XTCE065DS1A is a reliable IEC contactor for motor control, featuring a compact design and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE065DS1A
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE065DS1A
• UPC: 786685365121
• Product Type: Contactors
• Amperage Rating: 65A
• HP rating - max: 5, 10, 15/ 20, 25, 50, 60 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: 3
• Type: Full voltage non-reversing contactor
• Frequency rating: 50-60 Hz
• Frame size: 55 mm
• Terminals: Screw terminals
• Coil: 110-120 Vac, 50/60 Hz
• Coil Voltage: 110-120 VAC
• Contact configuration: 1 NO, 1 NC
• Continuous ampere rating: 65 A
• Series: XT IEC
• Operation: Non-reversing
• AMP Rating: 65 AMP AC-3 88 AMP AC-1
• Horsepower: 50 H.P. at 460 volt 25 H.P. at 230 volt
• Auxiliary Contact: Side mount 1 N.O./1 N.C.
• Starter Coil Voltage: 110 VAC
• Starter Frequency: 50 Hz
• Starter Auxiliary Contacts: 1 NO + 1 NC
• Starter HP: 60 HP @ 575 VAC
• Component: IEC Contactor
• Starter Poles: Three Pole
• Starter Reversing Capability: Non-Reversing
• Starter Amperage: 65 Amp
• Manufacturer: Eaton
• Sub Component: IEC Non-Reversing Contactor
• Starter Class: XT
• Maximum Load Current: 65 A
• Mounting Type: Panel/DIN Rail
• Operating Temperature: -25 to 50 deg C
• Catalog ID: C-HXTCE065DS1A
• Enclosure Type: IP20
• Terminal: Screw
• Standard & Approvals: UL Listed, CSA, CE Certified, IEC/EN 60947-4-1, 60947-5-1 RoHS Compliant
• General Purpose (AC1): 65 A
• Approval: CSA
• Amps: 65 A
• Mounting: Panel/DIN Rail
• Power/Voltage: 5 HP at 115 VAC 1-Phase
• Size: Frame D 55 Millimeter
• Current Rating: 65 A
• Brand: EATON
• Condition: New
• Nominal Coil Voltage: 600 VAC
