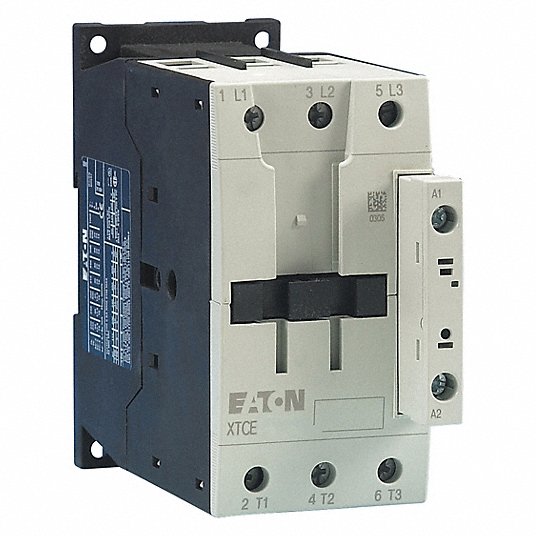

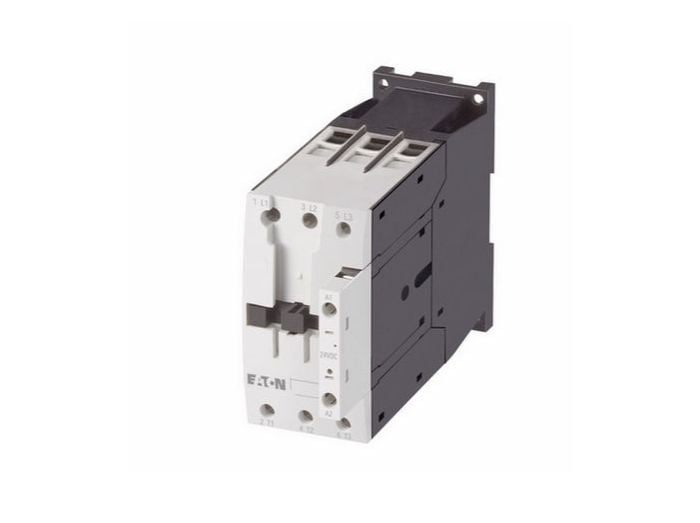

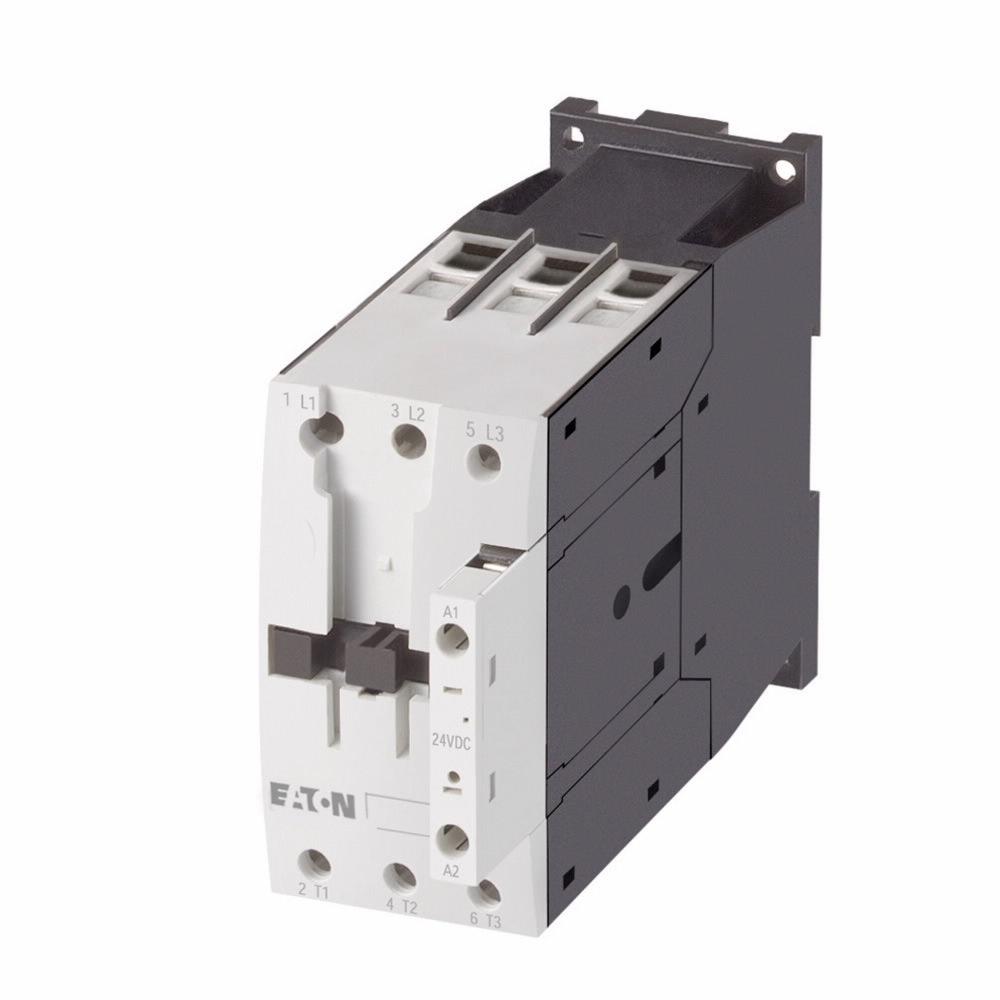

Eaton XTCE065D00TD IEC Magnetic Contactor 65A

Product Description

The EATON XTCE065D00TD is an IEC magnetic contactor with a 24VDC coil and a maximum load current of 65A. It provides effective control and protection for various loads, including motors and lighting. It is suitable for automation and process control applications. The contactor features screw terminals and can be mounted on a DIN rail or panel.

• Electronic coil controller reduces power consumption and heat generation.
• AC and DC devices have the same dimensions, saving space and reducing engineering design time.
• Integrated suppressors in DC controlled contactors reduce logistics and inventory costs.

Product Highlights

The Eaton XTCE065D00TD contactor offers a compact design, efficient performance, and easy installation for diverse control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE065D00TD
• Country of Origin: Romania

Technical Specifications

• Brand: Eaton
• MPN: XTCE065D00TD
• Application: For use to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation and other lighting
• Coil Power Rating: 5 hp at 115 VAC 1 ph, 10 hp at 200 VAC 1 ph, 15 hp at 230 VAC 1 ph, 20 hp at 200 VAC 3 ph, 25 hp at 230 VAC 3 ph, 50 hp at 460 VAC 3 ph, 60 hp at 575 VAC 3 ph
• Coil Voltage: 24 to 27 VDC
• Enclosure: IP20
• Maximum Load Current: 65 A
• Mounting Type: DIN Rail/Panel
• Number of Poles: 3
• Operating Temperature: -13 to 122 deg F
• Series: XT Series
• Size: 55 mm
• Standards/Approvals: BAA Compliant|RoHS Compliant|IEC 60947|EN 60947|CE Certified|UL Listed|CSA Certified
• Terminal Type: Screw
• Type: D-Frame Full Voltage Non-Reversing
• Product Length/Depth: 5.77952756 in
• Product Height: 4.09448819 in
• Product Width: 2.16535433 in
• Compliances: RoHS Compliant, CE Marked
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 65A
• HP rating - max: 5, 10, 15/ 20, 25, 50, 60 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: Three-pole
• Frame size: 55 mm
• Terminals: Screw terminals
• Contact configuration: 0 NO, 0 NC
• Continuous ampere rating: 65 A
• Operation: Non-reversing
• Nominal Coil Voltage: 24 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Frame Size: D
• Auxiliary Contact: None
• Termination: Screw
• Overload Relays: C396, XTOB, XTOT
• General Purpose (AC1): 80 A
• UL Motor Switching (AC3): 65 A
• Load Current Inductive: 65A
• Operating Voltage: 690VAC
• Contact Configuration: 3PST
• Switching Power AC3: 60hp
• Switching Current AC1: 98A
• Coil Voltage VDC Nom: 27V
• Switching Power AC1: 15hp
• Load Current Resistive: 98A
• Switching Current AC3: 65A
• Product Range: XT Series
• SVHC: No SVHC (17-Dec-2015)
