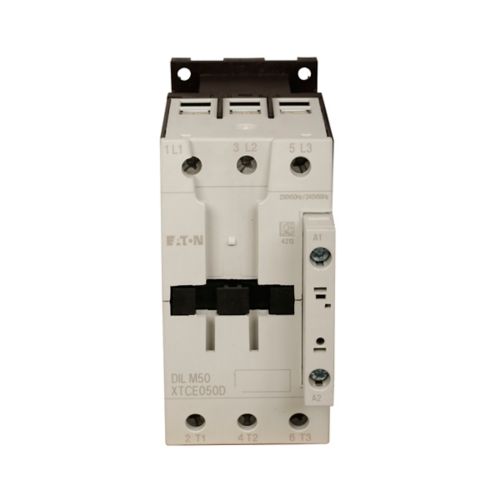

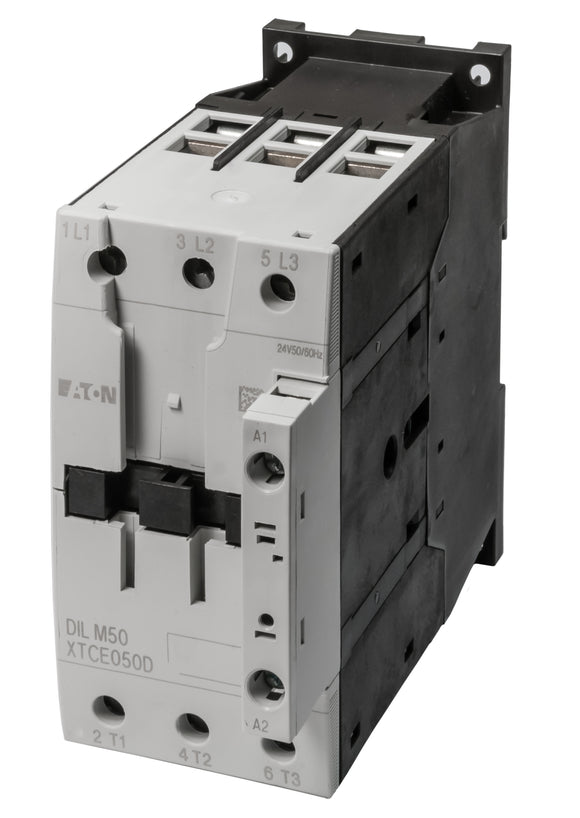

Eaton XTCE050D00T XT IEC contactor 50A

Product Description

The Eaton XTCE050D00T XT IEC contactor is rated for 50A and operates at 24 Vac, 50-60 Hz. This three-pole, full voltage non-reversing contactor features screw terminals and is part of the XT series with a frame size of 55 mm. It is suitable for controlling electric motors and conforms to IEC 60947 standards.

• Rated for 50A
• Features screw terminals
• Suitable for DIN rail or panel mounting

Product Highlights

The Eaton XTCE050D00T is a reliable contactor for motor control applications, designed for easy installation and broad compatibility.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE050D00T
• Country of Origin: Romania

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE050D00T
• EAN: 4015082778347
• Product Length/Depth: 5.77952756 in
• Product Height: 4.09448819 in
• Product Width: 2.16535433 in
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 50A
• HP rating - max: 3, 7.5, 10/ 15, 20, 40, 50 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of Poles: Three-pole
• Type: Full voltage non-reversing contactor
• Frequency rating: 50-60 Hz
• Frame size: 55 mm
• Terminals: Screw terminals
• Coil Voltage: 24 Vac, 50-60 Hz
• Contact configuration: 0 NO, 0 NC
• Continuous ampere rating: 50 A
• Series: XT IEC Series
• Operation: Non-reversing
• AC OPERATING COIL VOLTAGE: 24V50/60Hz
• Three phase HP ratings 230V: 20
• Three phase HP ratings 460V: 40
• AC1 Amp ratings: 40
• Manufacturer: Eaton - Cutler Hammer
• Mounting Type: DIN Rail/Panel Mount
• UPC Code: 4015082778347
• Control Voltage: 24 V
• Contact Current Rating: 50 A
• Brand: Eaton
• Voltage Rating: 24
• Model: XTCE050D00T
• MPN: XTCE050D00T
• Category: Business & Industrial
• Horsepower: 40 H.P. at 460 volt 20 H.P. at 230 volt
