Product Description

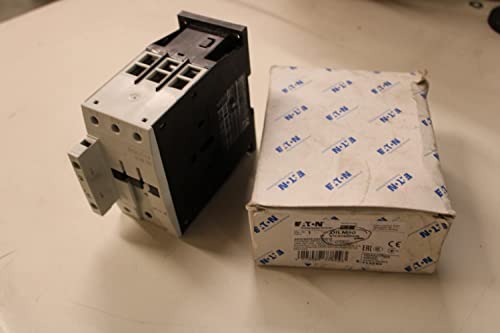

The Eaton XTCE050D00B XT IEC Contactor is a versatile and powerful device designed to handle high-current loads. Rated for 50 amps and 220-240 volts AC, this contactor efficiently controls motor circuits and other electrical loads.
- Compatible with a variety of electronic overload and bimetal relays
- Reduced power consumption for energy efficiency
- Easy to install with screw terminals
Product Highlights
Ideal for use in motor control, lighting systems, and heating equipment. The contactor features a robust construction with a reliable electromagnet and quick-make, quick-break mechanism for precise switching.
Product Information
Standard Information
-
Catalog Number: XTCE050D00B
-
Manufacturer: Eaton
Technical Specifications
-
Application: Electrical Assemblies, Panels, and EOEMs
-
Coil Voltage: 220-240 Vac, 50/60 Hz
-
Contact Configuration: 0 NO, 0 NC
-
Dimensions: 2 x 4 x 3.5 inches
-
Enclosure: IP20
-
Frequency Rating: 50/60 Hz
-
Maximum Load Current: 50 A
-
Mounting Type: DIN Rail/Panel
-
Number of Poles: 3
-
Operating Temperature: -13 to 122 deg F
-
Series: XT Series
-
Size: 55 mm
-
Standards/Approvals: CE Marking, CSA Certified, EN 60947, IEC 60947, RoHS Compliant, UL Listed
-
Terminal Type: Screw
-
Type: Full Voltage Non-Reversing
