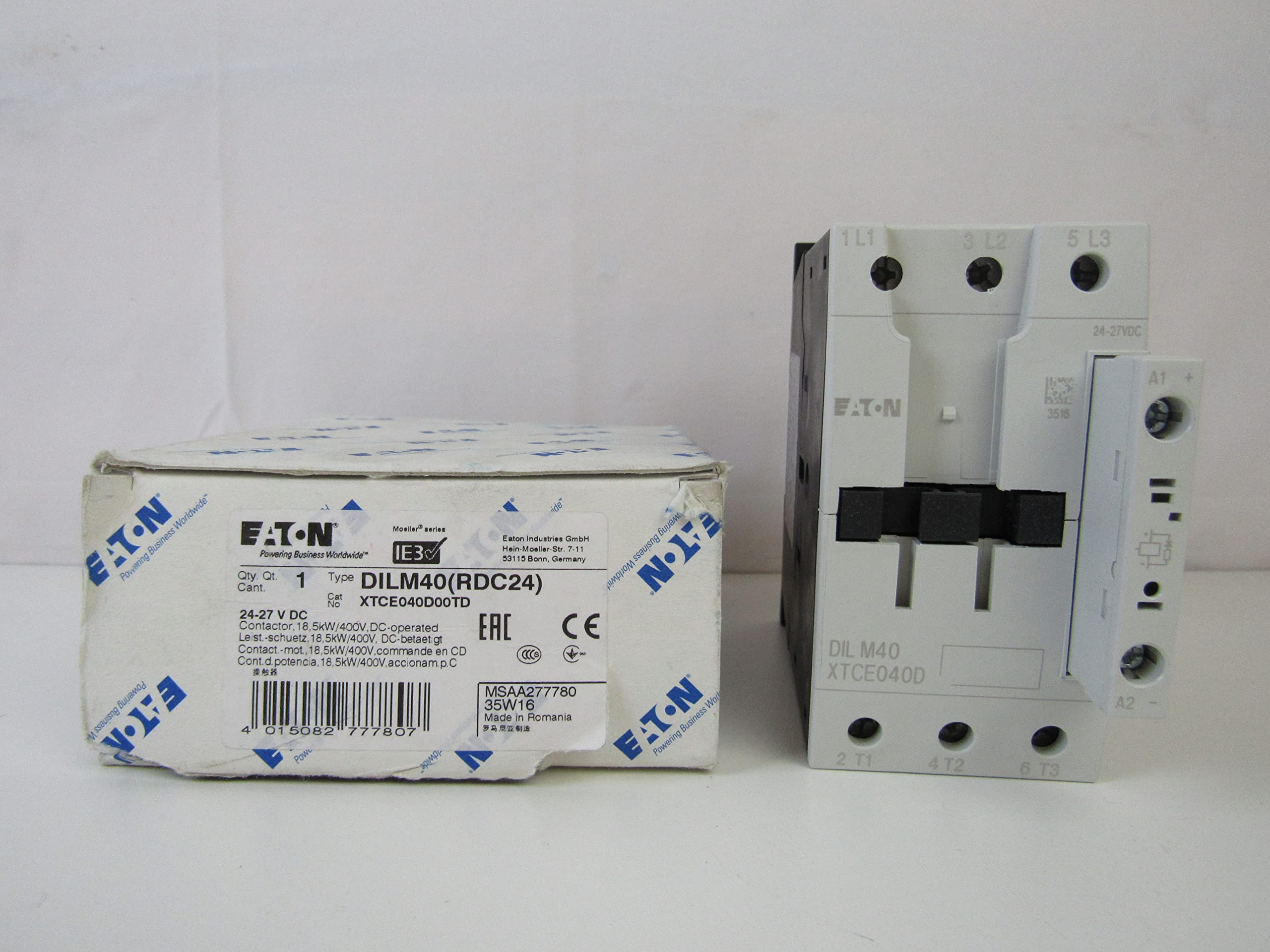

Eaton XTCE040D00TD Contactor 3P FVNR 40A

Product Description

The Eaton XTCE040D00TD is an IEC magnetic contactor with a 24-27 Vdc coil and a 40A amperage rating. It is a three-pole, non-reversing contactor with screw terminals, suitable for motor and power control equipment. The compact design ensures efficient and versatile performance across various applications.

• 40A maximum load current
• 24 to 27 VDC coil voltage
• Suitable for DIN rail or panel mounting

Product Highlights

The Eaton XTCE040D00TD contactor offers a reliable solution for motor control applications, featuring a compact design and efficient performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE040D00TD

Technical Specifications

• GTiN: 04015082777807
• Type: Full Voltage Non-reversing Contactor
• Brand: Eaton
• Frame: 55 mm
• Height: 6 Inch
• Length: 2-1/4 Inch
• Amperage: 40 Amp
• Applications: For Motor and Power Control Equipment
• Coil Voltage: 24 - 27 V
• Terminal Type: Screw Terminals
• Number of Poles: 3 Pole
• Contact Configuration: 0 NO, 0 NC
• MPN: XTCE040D00TD
• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE040D00TD
• EAN: 4015082777807
• Product Length/Depth: 2.25 in
• Product Width: 5 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified IEC 60947 EN 60947
• Product Type: Contactors
• Amperage Rating: 40A
• HP rating - max: 3, 5, 7.5/ 10, 15, 30, 40 hp (1/3PH @115,200,230/200,230,460,575 V)
• Terminals: Screw terminals
• Coil: 24 Vdc
• Continuous ampere rating: 40 A
• Series: XT IEC
• Operation: Non-reversing
• AMP Rating: 40 AMP AC-3 63 AMP AC-1
• Horsepower: 30 H.P. at 460 volt 15 H.P. at 230 volt
• Mounting: Screw or DIN rail
• Manufacturer Part Number: XTCE040D00TD
• Manufacturer: Eaton
• Product Series: XT
• Family Series: Eaton Contactors, XT Series
• Description: Eaton XT IEC contactor, 40A, 24-27 Vdc, 0NO-0NC, 40A, Frame D, 55 mm, 3, 5, 7.5/ 10, 15, 30, 40 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing,, Screw terminals, FVNR
• Nominal Coil Voltage: 24 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Frame Size: D
• Auxiliary Contact: None
• Termination: Screw
• Overload Relays: C396, XTOB, XTOT
• General Purpose (AC1): 50 A
• UL Motor Switching (AC3): 40 A
• Net Weight: 2.4 lbs
• Gross Weight: 2.4 lbs
• Maximum Load Current: 40 A
• Mounting Type: DIN Rail
• Operating Temperature: -25 to 50 deg C
• Terminal: Screw
• Application: Industrial, Motor Drive and Control, HVAC, Lighting, Motor and Power Control Equipment Applications
• Standard & Approvals: UL Listed, CE, CSA Certified, IEC 60947, EN 60947 , RoHS Compliant
• Dimensions: 2-1/4 in L x 5 in W x 6 in H
• Coil Power Rating: 3 hp, 5 hp, 7-1/2 hp, 10 hp, 15 hp, 30 hp, 40 hp
• Contact Type: Non-Reversing
• Enclosure Type: IP20
• Wattage: 12.5/18.5/23/24 kW
