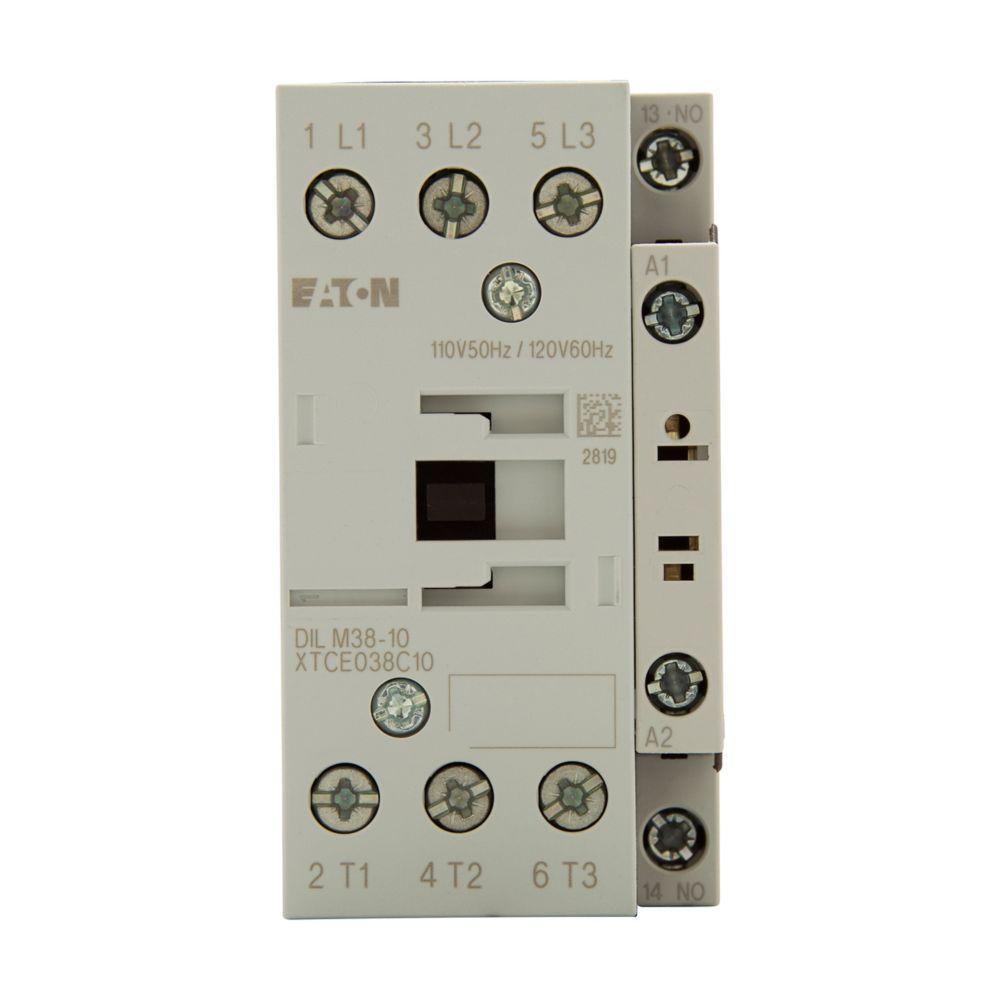

Eaton XTCE038C10A Contactor 3P FVNR 38A FR

Product Description

The Eaton XTCE038C10A is a motor control contactor, 3P FVNR 38A FR C 1NO 110/50 120/60 COIL DILM38-10. These contactors are efficient and versatile and can be combined with electronic overload relays and bimetal relays. Suitable for global use and cover the entire output range.

• Uniform accessories for 3-pole and 4-pole contactors
• Double box terminals for reliable wiring of different cross-sections
• Can be controlled directly from a PLC
• DC operated devices with integrated suppressor circuits

Product Highlights

Eaton XT series contactors are ideal for motors, compressors, pumps, resistive, capacitor banks, isolation and other applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCE038C10A
• Country of Origin: Romania

Technical Specifications

• GTiN: 04015081119837
• Type: FVNR Contactor
• Brand: Eaton
• Frame: C
• Height: 2 Inch
• Length: 3.94 Inch
• Amperage: 32 Amp
• Product UPC: 01508111983
• 12-Digit UPC: 015081119831
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Coil Voltage: 110/120 VAC
• Number of Poles: 3 Pole
• Contact Configuration: 1NO
• Contact Rating: 38 A
• Dimensions: 3.94 in L x 3.5 in W x 2 in H
• Frequency Rating: 50/60 Hz
• Number of Auxiliary Contacts: 1NO
• Operating Temperature: -25 to 60 deg C
• Series: XT Series
• Terminal Type: Screw
• Rated current: 38A (AC-3)
• Rated active power (kW): 11kW (220/230Vac; AC-3; IEC; 50/60Hz)
• Rated power (HP): 3HP (Single-phase; UL/CSA; 115Vac)
• Rated operating voltage (Ue): 690 V
• Rated insulation voltage (Ui): 690 V
• Connection type: Screw connection
• Mounting mode: DIN rail
• Normally Open (NO) auxliary contacts: 1 NO contacts
• Number of Normally Open (NO) circuits: 3 NO Pole(s)
• Net Width (mm): 45 mm
• Mechanical durability (at no load): 10 000 000 operations
• Application type: DOL (Direct On Line)
• Manufacturer product status: Commercialized
• Compliant with standard(s): IEC/EN 60947
• Operating rate: (Electrical; AC-3; 400Vac) 800 Cycles/hour
• Degree of pollution: 3
• Size: IEC Size C, Frame W: 45mm
• UL Cont. Amps: 38 A
• Hp 1-Phase 115V: 3 Hp
• Hp 1-Phase 230V: 5 Hp
• Hp 3-Phase 200V: 10 Hp
• Hp 3-Phase 230V: 10 Hp
• Hp 3-Phase 460V: 25 Hp
• Hp 3-Phase 575V: 30 Hp
• Enclosure Type: IP20
• UNSPSC: 39121529
• Application: Motors, Compressors, Pumps, Resistive, Capacitor Banks, Isolation and Others
• Rated current : 45A (AC-1)
• Rated active power (kW) : 21kW (660/690Vac; AC-3; IEC; 50/60Hz)
• Rated power (HP) : 30HP (3-phase; UL/CSA; 575Vac)
• Application type : FVNR (Full-Voltage Non-Rv.)
• Operating rate : (Mechanical) 5000 Cycles/hour
• Secondary brand: Cutler-Hammer
• Main function: Contactor
• Product series / family name: XT IEC power control
• Sub-range name: XTCE
• Functions: Definite Purpose (DP) contactor
• Poles: 3P
• Auxiliary Contacts: 1NO
• Product Length/Depth: 3.94 in
• Product Width: 3.5 in
